Lighting Unit for 1975 Mercedes-Benz 230

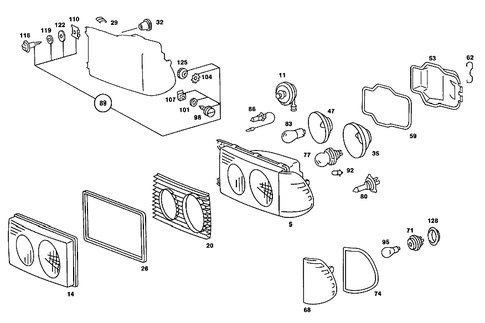

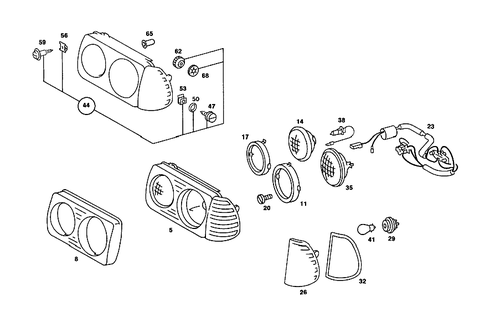

Diagram 1 1. Lighting Unit Diagram 2 2. Lighting Unit
Lighting Unit for 1975 Mercedes-Benz 230 #0
101
104
107
11
110
116
119
122
125
128
14
20
26
29
32
35
47
5
53
59
62
68
71
74
77
80
83
86
89
92
95
98
No.
Part # / Description / Price
5
18209961 - Electrical System: Lamp Unit for Mercedes-Benz Image image
Lamp Unit
001-820-99-61
Mercedes-Benz Mercedes-Benz

Light range adjuster,left. Make bosch,h4. R.h. Traffic.

View Details
5
28200061 - Electrical System: Lamp Unit for Mercedes-Benz Image image
Lamp Unit
002-820-00-61
Mercedes-Benz Mercedes-Benz

Light range adjuster,right. Make bosch,h4. R.h. Traffic.

View Details
11
8003075 - Electrical System: Actuator for Mercedes-Benz Image image
Actuator
000-800-30-75
Mercedes-Benz Mercedes-Benz

Lighting units. Headlamp leveling system bosch. Light range adjuster bosch.

View Details
14
1238260390 - Electrical System: Glass Pane for Mercedes-Benz Image image
Glass Pane
123-826-03-90
Mercedes-Benz Mercedes-Benz

Left,right-side traffic bosch.

View Details
14
1238260590 - Electrical System: Glass Pane for Mercedes-Benz Image image
Glass Pane
123-826-05-90
Mercedes-Benz Mercedes-Benz

Left,right-side traffic hella.

View Details
14
1238261390 - Electrical System: Glass Pane for Mercedes-Benz Image image
Glass Pane
123-826-13-90
Mercedes-Benz Mercedes-Benz

Left,left-side traffic hella,h 4.

View Details
14
1238261490 - Electrical System: Glass Pane for Mercedes-Benz Image image
Glass Pane
123-826-14-90
Mercedes-Benz Mercedes-Benz

Right,left-side traffic hella,h 4.

View Details
26
18262680 - Electrical System: Seal for Mercedes-Benz Image image
Seal
MSRP $21.00
$21.00
001-826-26-80
Mercedes-Benz Mercedes-Benz

Between lens and base frame bosch.

26
1238260180 - Electrical System: Seal for Mercedes-Benz Image image
Seal
123-826-01-80
Mercedes-Benz Mercedes-Benz

Between lens and base frame hella.

View Details
29
1238260084 - Electrical System: Torsion Spring for Mercedes-Benz Image image
Torsion Spring
123-826-00-84
Mercedes-Benz Mercedes-Benz

Lens. Bosch.

View Details
32
1269974081 - Electrical System: Grommet for Mercedes-Benz Image image
Grommet
126-997-40-81
Mercedes-Benz Mercedes-Benz

Bosch. Headlamp rim.

View Details
35
8267578 - Electrical System: Reflector for Mercedes-Benz Image image
Reflector
000-826-75-78
Mercedes-Benz Mercedes-Benz

Right headlamp. Right-hand traffic hella.

View Details
35
8268178 - Electrical System: Reflector for Mercedes-Benz Image image
Reflector
000-826-81-78
Mercedes-Benz Mercedes-Benz

Right headlamp. Left-hand traffic hella,h 4.

View Details
35
8268078 - Electrical System: Reflector for Mercedes-Benz Image image
Reflector
000-826-80-78
Mercedes-Benz Mercedes-Benz

Left headlamp. Left-hand traffic hella,h 4.

View Details
47
8267978 - Electrical System: Reflector for Mercedes-Benz Image image
Reflector
000-826-79-78
Mercedes-Benz Mercedes-Benz

Foglight hella,h 3.

View Details
59
1238260280 - Electrical System: Seal for Mercedes-Benz Image image
Seal
123-826-02-80
Mercedes-Benz Mercedes-Benz

Bosch.

View Details
68
8200421 - Electrical System: Turn Signal Lamp for Mercedes-Benz Image image
Turn Signal Lamp
000-820-04-21
Mercedes-Benz Mercedes-Benz

Left hella.

View Details
71
826848264 - Electrical System: Socket for Mercedes-Benz Image image
Socket
000-826-84-82-64
Mercedes-Benz Mercedes-Benz

Blinker lamp. Blinker light.

View Details
71
8267582 - Electrical System: Socket for Mercedes-Benz Image image
Socket
000-826-75-82
Mercedes-Benz Mercedes-Benz

Blinker lamp hella.

View Details
74
1238260580 - Electrical System: Seal for Mercedes-Benz Image image
Seal
123-826-05-80
Mercedes-Benz Mercedes-Benz

Left bosch.

View Details
77
72601012100 - Electrical System: Bulb for Mercedes-Benz Image image
Bulb
MSRP $16.50
$16.50
072601-012100
Mercedes-Benz Mercedes-Benz

Headlamp. High/low beam r2-12v 45/40w.

80
816264 - Electrical System: Bulb for Mercedes-Benz Image image
Bulb
MSRP $19.00
$19.00
000000-008162-64
Mercedes-Benz Mercedes-Benz

High/low beam hb2 12v/60/55w.

86
8161 - Electrical System: Bulb for Mercedes-Benz Image image
Bulb
MSRP $17.00
$17.00
000000-008161
Mercedes-Benz Mercedes-Benz

Front fog lamp. 12V-55W
Model 1: H3
Volt: 12V
Watt: 55W.

89
381987004164 - Electrical System: Mounting Material for Mercedes-Benz Image image
Window
MSRP $4.20
$4.20
381987004164
Mercedes-Benz Mercedes-Benz

Mounting Material

Lighting unit.

92
816364 - Electrical System: Bulb for Mercedes-Benz Image image
Bulb
MSRP $4.80
$4.80
000000-008163-64
Mercedes-Benz Mercedes-Benz

Rear side lamp t4w - 12v. 12v t4w
model 1: t4w
volt: 12v
watt: 4w. Side marker and clearance lights. 12v t4w
model 1: t4w
volt: 12v
watt: 4w. Side marker lamp. 12v t4w
model 1: t4w
volt: 12v
watt: 4w. Parking light,left and right. 12v t4w
model 1: t4w
volt: 12v
watt: 4w. Parking and clearance lights t4w - 12v. 12v t4w
model 1: t4w
volt: 12v
watt: 4w.

95
8156 - Electrical System: Bulb for Mercedes-Benz Image image
Bulb
MSRP $2.40
$2.40
000000-008156
Mercedes-Benz Mercedes-Benz

C-class. Brake light, left. 12v-21wmodel 1: tc 1000 hvolt: 12vwatt: 21w. Rear fog lamp. 12v-21wmodel 1: tc 1000 hvolt: 12vwatt: 21w. Left back-up light. 12v-21wmodel 1: tc 1000 hvolt: 12vwatt: 21w. Reversing light. 12v-21wmodel 1: tc 1000 hvolt: 12vwatt: 2 ...

98
926 - Electrical System: Bolt and Washer Assembly for Mercedes-Benz Image image
Tapping Screw
MSRP $1.70
$1.70
000000-000926
Mercedes-Benz Mercedes-Benz

Bolt and Washer Assembly

B4,8x22. Lighting unit to lateral stiffening. Water tank to bracket.

101
2019870241 - Electrical System: Rubber Ring for Mercedes-Benz Image image
Rubber Ring
MSRP $2.20
$2.20
201-987-02-41
Mercedes-Benz Mercedes-Benz

For window moulding at driver's door.

104
9901546 - Electrical System: Window for Mercedes-Benz Image image
Window
000-990-15-46
Mercedes-Benz Mercedes-Benz

Instrument panel to cowl. Lighting unit to wheelhouse.

View Details
107
19943145 - Electrical System: Socket Nut for Mercedes-Benz Image image
Socket Nut
MSRP $2.40
$2.40
001-994-31-45
Mercedes-Benz Mercedes-Benz

Front cover to paneling bumper. Lighting unit to front fender. Bosch. Control unit to the right of legroom.

110
19940645 - Electrical System: Securing for Mercedes-Benz Image image
Securing
MSRP $2.70
$2.70
001-994-06-45
Mercedes-Benz Mercedes-Benz

Mounting console mount. Lighting unit to lateral stiffening. Bracket to bracket.

116
9419900136 - Electrical System: Screw for Mercedes-Benz Image image
Screw
941-990-01-36
Mercedes-Benz Mercedes-Benz

Lighting unit to lateral stiffening. Pump to bracket at right front wheelhouse.

View Details
122
9021006103 - Electrical System: Washer for Mercedes-Benz Image image
Washer
009021-006103
Mercedes-Benz Mercedes-Benz

Bracket to instrument panel. Heater case to fire wall. Rear plate to lateral plate. Angle to battery frame. Instrument panel to cowl,bottom. Wiper linkage to motor drive rod.

View Details
122
9021006208 - Electrical System: Washer for Mercedes-Benz Image image
Washer
MSRP $2.00
$2.00
009021-006208
Mercedes-Benz Mercedes-Benz

Spacer washer.

125
1089900057 - Electrical System: Knurled Nut for Mercedes-Benz Image image
Knurled Nut
MSRP $8.75
$8.75
108-990-00-57
Mercedes-Benz Mercedes-Benz

Blinker light to lighting unit. Lighting unit to wheelhouse.

128
1239973381 - Electrical System: Grommet for Mercedes-Benz Image image
Grommet
123-997-33-81
Mercedes-Benz Mercedes-Benz

Front wheelhouse;blinker cable passage.

View Details
