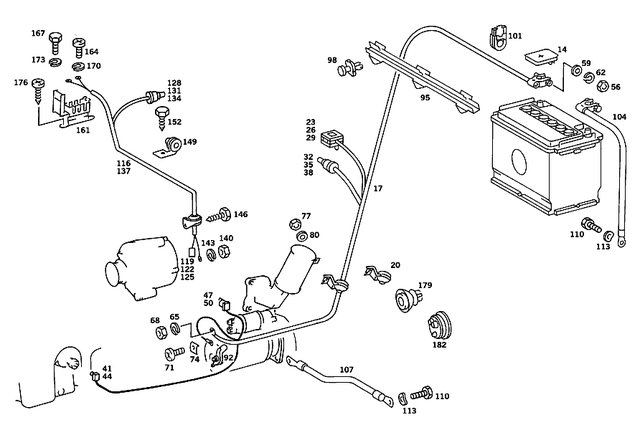

Battery, Starter/Alternator Cable for 1987 Mercedes-Benz 190E
No.
Part # / Description / Price
N/A
Electric Line
Mercedes-Benz
Mercedes-Benz From side member to engine. From engine to frame. Frame to body. Motor to sliding sunroof segment. From cross member to engine.
14
Protective Cap Mercedes-Benz
MSRP $4.60
$4.60
Mercedes-Benz End Pin Cap
Positive pole. Terminal post cap. Pole cover cap. Pole, starter and on-board ele. Sys. Battery.
26
Cap Mercedes-Benz
MSRP $5.00
$5.00
Mercedes-Benz Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).
29
Contact Pin Mercedes-Benz
MSRP $2.40
$2.40
Mercedes-Benz 4.0 MM. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 4.0Release tool: W220 589 01 99 52. TO 009 545 53 28/56 28. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: R ...
35
Housing Upper Part Mercedes-Benz
MSRP $2.70
$2.70
Mercedes-Benz To 008 545 20 28,011 545 10 28. Rear fuel pump cable harness plugconnection.
47
Electric Coupling Mercedes-Benz
MSRP $3.30
$3.30
Mercedes-Benz Belt locking retractor feed-in. Speed signal. 1-pin. Cockpit cable harness. 1-pin. From electrical compartment plugconnection to indicating instruments. 1-pin. Plug connection kl 87 ug. 1-pin. Temperature sensor refrigerant indicator. 1-pin. Temperature switch,16 degs.. 1-pin. Used without automatic air conditioner. 1-pin.
68
Hexagon Nut Mercedes-Benz
MSRP $3.00
$3.00
Mercedes-Benz Nut
M8-10
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
71
Screw Mercedes-Benz
MSRP $1.20
$1.20
Mercedes-Benz Cd changer to bracket. Mounting at console. Control module mounting.
98
Expansion Rivet Mercedes-Benz
MSRP $1.40
$1.40
Mercedes-Benz Covering to body. Control unit to the right of legroom. Covering to outside central piece. Starting cable to unit partition panel. 5 mm. Covering to cross member. For partition plate at wheel arch pan and reinforcement plate. See group 69,fig.no.: 53 see group 69,fig.no.: 56. Ashtray to tray. Switch to partition panel.
110
Hexagon Head Bolt Mercedes-Benz
MSRP $3.30
$3.30
Mercedes-Benz Main muffler suspension. M8x16. Central muffler suspension. Bracket on rear axle m 8x16.
110
Screw Mercedes-Benz
Mercedes-Benz Reinforcement to support. Ground cable to frame side member. Torsion bar mounting. Bracket with license plate to front bumper.
113
Spring Washer Mercedes-Benz
MSRP $1.60
$1.60
Mercedes-Benz Wiper arm with blade to wiper spindle. Drive rod to crank arm. Wiper arm to wiper shaft. Wiper arm on spindle.
125
Receptacle Mercedes-Benz
Mercedes-Benz 756. 1.0-2.5 mm2 ff6.3. Radio. 1.0-2.5 mm2 ff6.3. Engine hood. 1.0-2.5 mm2 ff6.3. Parking brake switch. 1.0-2.5 mm2 ff6.3.
134
Contact Socket Mercedes-Benz
MSRP $3.40
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
140
Wiper Arm Nut Mercedes-Benz
MSRP $3.40
$3.40
Mercedes-Benz Nut
Master cylinder to brake booster. Rear bumper to rear body panel cross member. Electric cable to alternator. Pedal assembly to fire wall. Front bumper to cross member. Armrest to backrest. Bracket to bumper. Left stiffening to right stiffening. On front door,bottom.
152
Tapping Screw Mercedes-Benz
MSRP $1.50
$1.50
Mercedes-Benz Ashtray to housing. Defroster nozzle to instrument panel.
167
Hexagon Head Bolt Mercedes-Benz
MSRP $3.50
$3.50
Mercedes-Benz Screw
Amplifier at c-pillar. Amplifier to bracket. Reinforcem. At bracket, left.
170
Spring Lock Washer Mercedes-Benz
MSRP $1.40
$1.40
Mercedes-Benz Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
2 This part contains hazardous materials. Extra shipping costs apply.
