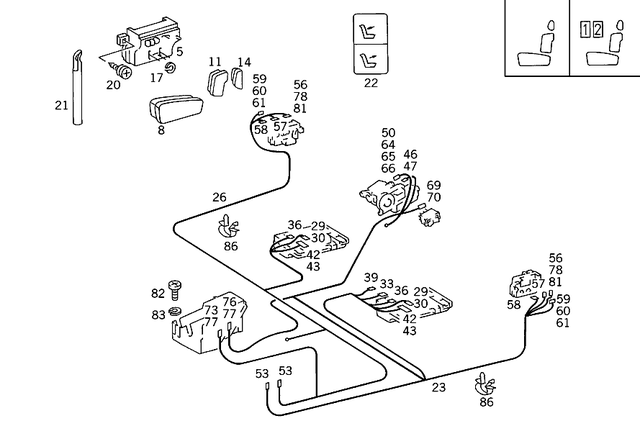

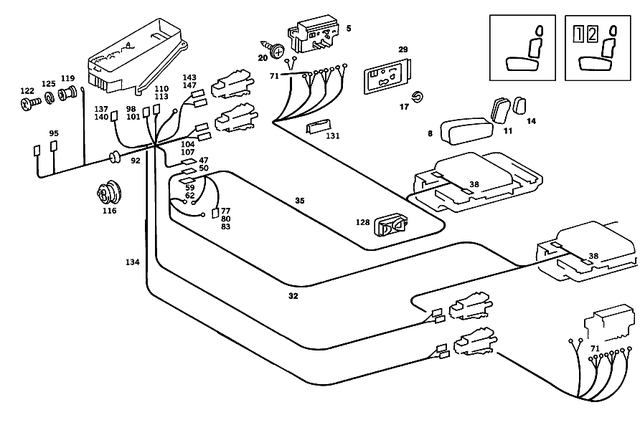

Electric Seat Adjuster for 1991 Mercedes-Benz 190E
No.
Part # / Description / Price
N/A
Expansion Rivet
Mercedes-Benz
MSRP $1.40
$1.40
Mercedes-Benz Rivet
Covering to body. Control unit to the right of legroom. Covering to outside central piece. Starting cable to unit partition panel. 5 mm. Covering to cross member. For partition plate at wheel arch pan and reinforcement plate. See group 69,fig.no.: 53 see group 69,fig.no.: 56. Ashtray to tray. Switch to partition panel.
11
Actuation Button Mercedes-Benz
MSRP $9.00
$9.00
Mercedes-Benz On right switch. Used for front seat backrest. Right backrest adjuster actuation.
11
Actuation Button Mercedes-Benz
Mercedes-Benz On left switch. Used for front seat backrest. Left backrest adjuster actuation.
29
Cover Mercedes-Benz
Mercedes-Benz Switch with programming,right. With electrically adjustable front seat with programming,right.
29
Cover Mercedes-Benz
Mercedes-Benz Switch with programming,left. With electrically adjustable front seat with programming,left.
38
Receptacle Housing Mercedes-Benz
Mercedes-Benz Burglary alarm system control unit. Automatic air conditioner control unit ;14-pole. Seat adjustment control unit. Seat heater relay. 14-pole. Seat heating control unit. Control unit. 14-pole tempomat.
50
Cap Mercedes-Benz
MSRP $5.00
$5.00
Mercedes-Benz Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).
71
Contact Socket Mercedes-Benz
MSRP $3.40
$3.40
Mercedes-Benz 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
80
Cap Mercedes-Benz
Mercedes-Benz Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
95
Receptacle Housing Mercedes-Benz
MSRP $8.75
$8.75
Mercedes-Benz Automatic transmission shift-pointincrease relay. 6-pin. Relay for "locking completed" feedback. 6-pin. Engine shut-off relay. 6-pin. Intake manifold heating relay. 6-pole. 6-pin. Relay. 6-pole to 126 820 40 17,56 15. 6-pin. Air blow-in relay. 6-pin. Seat adjuster relay. 6-pin.
101
Housing Upper Part Mercedes-Benz
MSRP $3.20
$3.20
Mercedes-Benz To 009 545 78 28. To 009 545 80 28. Pin bushing housing 6-polig. To 006 545 08 28. To 006 545 78 28 (asr). 6-pole. To 006 545 80 28,123 545 06 28. (plug upper part).
113
Contact Socket Mercedes-Benz
MSRP $3.40
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
122
Screw Mercedes-Benz
Mercedes-Benz Electric cable to central electric system terminal 30. Cable harness to cable connector. Cables to cable connector.
140
Contact Socket Mercedes-Benz
MSRP $2.90
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
180
Retaining Washer Mercedes-Benz
MSRP $1.70
$1.70
Mercedes-Benz FLEXIBLE SHAFT TO ENGINE AND TO TRANSMISSION
Diameter: 9mm
Inside diameter: 10mm
Outside diameter: 18,8mm
Material thickness: 1,1mm. SHAFT TO MOTOR
Diameter: 9mm
Inside diameter: 10mm
Outside diameter: 18,8mm
Material thickness: 1,1mm. BACKREST TO SEAT FRAME
Diameter: 9mm
Inside diameter: 10mm
Outside diameter: 18,8mm
Material thickness: 1,1mm.
210
Receptacle Housing Mercedes-Benz
Mercedes-Benz Seat height adjustmt.,rear. Seat height adjustment,rear. With programming. 5-pin. Height adjustment motor,rear. 5-pin.
213
Receptacle Housing Mercedes-Benz
Mercedes-Benz Seat adjustment control unit. Jacket tube adjuster control unit. Fore-and-aft adjustment.
219
Contact Pin Mercedes-Benz
MSRP $2.40
$2.40
Mercedes-Benz 4.0 MM. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 4.0Release tool: W220 589 01 99 52. TO 009 545 53 28/56 28. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: R ...
246
Hexagon Nut Mercedes-Benz
Mercedes-Benz Nut
Engine to bracket. Rail to fabric retaining rail. Pocket to door lining.
252
Screw Mercedes-Benz
Mercedes-Benz Electric motor to guide rail. Guide rail to seat framework m5 x 10. Motor to seat height adjustment. Hinge to fabric retaining rail.
264
282
309
Grommet Mercedes-Benz
Mercedes-Benz At contact rail. Control unit to seat height adjustment. Contact plate. Contact rail and control unit.
315
Control Unit Mercedes-Benz
Mercedes-Benz Seat height adjustmt.;with programming less electrically adjust.steerg.column. Seat adjuster.
