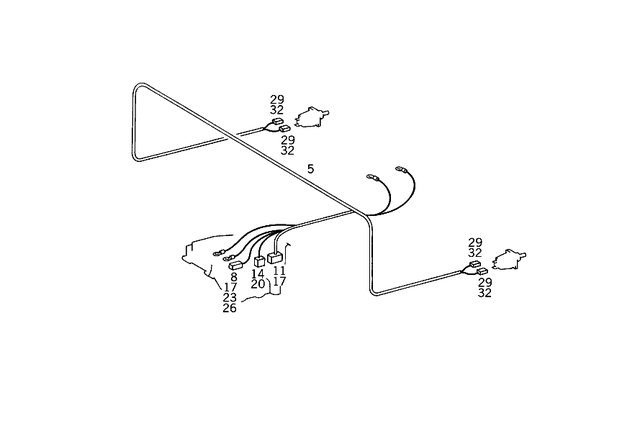

Electric Window Regulator for 1991 Mercedes-Benz 300SEL
No.
Part # / Description / Price
11
Receptacle Housing
Mercedes-Benz
MSRP $8.75
$8.75
Mercedes-Benz Automatic transmission shift-pointincrease relay. 6-pin. Relay for "locking completed" feedback. 6-pin. Engine shut-off relay. 6-pin. Intake manifold heating relay. 6-pole. 6-pin. Relay. 6-pole to 126 820 40 17,56 15. 6-pin. Air blow-in relay. 6-pin. Seat adjuster relay. 6-pin.
14
Receptacle Housing Mercedes-Benz
Mercedes-Benz Diode case to fuse box. 2-pin. Comfort switching. 2-pin. Comfort/sport change-over trimmer plug. 2-pin. Trimmer plug ezl. 2-pin. Diodes. 2-pin. Trimmer plug to 007 545 75 28. 2-pin.
20
Contact Socket Mercedes-Benz
MSRP $3.40
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
23
41
Cap Mercedes-Benz
MSRP $5.00
$5.00
Mercedes-Benz Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).
65
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Rear window roller blind. Tell-tale lamp edw. Backrest adjustment switch. Automatic anti-dazzle with garage dooropener. Fold-away outside rearview mirror switch. Roller blind switch.
74
Contact Socket Mercedes-Benz
MSRP $3.40
$3.40
Mercedes-Benz 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
86
Contact Pin Mercedes-Benz
MSRP $2.40
$2.40
Mercedes-Benz 4.0 MM. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 4.0Release tool: W220 589 01 99 52. TO 009 545 53 28/56 28. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: R ...
101
Clamp Mercedes-Benz
Mercedes-Benz Rear door contact branch-off to central pillar. 27.8 x 50.0 mm. Electric cable to side member. 27.8 x 50.0 mm. Window regulator cable harness to side member. 27.8 x 50.0 mm. Electric cable to wheel arch. 27.8 x 50.0 mm. Electric cable to tailgate. 27.8 x 50.0 mm. Plug-socket cable to frame. 27.8 x 50.0 mm. 22,75mm. 27.8 x 50.0 mm.
101
Clamp Mercedes-Benz
Mercedes-Benz Cable harness to rear door interior plate. Cable harness to cross member. Electric window regulator cable to rear door interior part. Main cable harness to front floor. Cable harness to side part. Electric cable to tailgate. Electric cable to rear door interior plate.
116
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Plug connection. Reinforcement to console m 8x16. Coupler. Striker plate to tunnel m 8x16.
119
Clamp Mercedes-Benz
Mercedes-Benz 22x19 mm. 22.0 mm. Rear window water drain fastening. 22.0 mm. 23 mm. 22.0 mm. Hose to cross member. 22.0 mm. Rear door interior part. 22.0 mm. Electric cable to seat cushion frame. 22.0 mm. De-aeration line. 22.0 mm.
122
Cover Mercedes-Benz
Mercedes-Benz Cable protection in front door interior part. Electric cable to rear door interior plate.
125
Coupling, Mechanical Mercedes-Benz
MSRP $4.90
$4.90
Mercedes-Benz Compressor switch. Electric window regulator switch. Lower part. Seat heater switch. 6-pole. Circulating air switch. 4-pole. Level switch. 7-pole.
137
Line Connector Mercedes-Benz
Mercedes-Benz Electric cable regulator cable. Stop-light/speed signal. Motor connection,left and right front doors. Bipolar. At bracket. To floor panel in legroom. Cable harness to front door. Electric cable to rear door interior plate. Terminal "58d".
143
Spring Lock Washer Mercedes-Benz
MSRP $1.40
$1.40
Mercedes-Benz Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
146
Gear Motor 1 Mercedes-Benz
MSRP $394.00
$394.00
Mercedes-Benz Front door,right fa.bosch to reiter&schefenacker(z=10). Electric window regulator,right fa bosch,to reitter & schefenacker.
146
Gear Motor 1 Mercedes-Benz
MSRP $474.00
$474.00
Mercedes-Benz Electric window regulator,left fa bosch,to reitter & schefenacker.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
