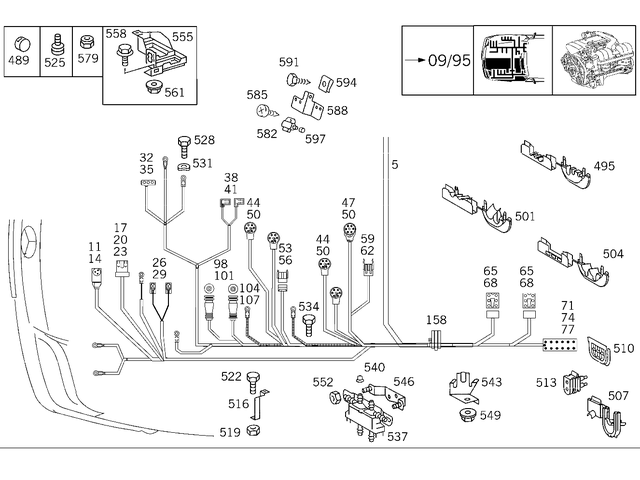

Engine Cable Harness, Body Mounted for 1991 Mercedes-Benz 500SL
No.
Part # / Description / Price
11
Receptacle Housing
Mercedes-Benz
Mercedes-Benz Plug Socket
Air cleaner intake pipe. Intake air temperature sensor.
14
Contact Socket Mercedes-Benz
$2.70
Mercedes-Benz 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
38
Receptacle Housing Mercedes-Benz
Mercedes-Benz Antenna amplifier a2/18. 1-pin. Luggage compartment lamp. 1-pin. Parking brake control. 1-pin. Parking brake switch s12. 1-pin. To 002 545 94 26. 1-pin. Pressure switch,coolant compressor. 1-pin.
41
Female Spade Connector Mercedes-Benz
Mercedes-Benz Hand-brake-control switch. Trunk lighting. Parking brake switch to 004 545 20 26. Offset. 0.5-1.5mm2. Parking brake control.
44
62
Contact Socket Mercedes-Benz
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
65
Receptacle Housing Mercedes-Benz
$8.75
Mercedes-Benz Automatic transmission shift-pointincrease relay. 6-pin. Relay for "locking completed" feedback. 6-pin. Engine shut-off relay. 6-pin. Intake manifold heating relay. 6-pole. 6-pin. Relay. 6-pole to 126 820 40 17,56 15. 6-pin. Air blow-in relay. 6-pin. Seat adjuster relay. 6-pin.
77
Contact Pin Mercedes-Benz
$2.40
Mercedes-Benz 4.0 MM. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 4.0Release tool: W220 589 01 99 52. TO 009 545 53 28/56 28. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: R ...
83
Cap Mercedes-Benz
Mercedes-Benz To 013 54 47 28. To 013 545 47 28. To 021 545 21 28. Trimmer plug ezl. Trimmer plug lh.
89
Receptacle Housing Mercedes-Benz
$22.50
Mercedes-Benz Adjustment to altitude. 3-pin. Transverse acceleration switch. 3-pin. Height control valve. 3-pin. Pressure switch. 3-pin. Pressure sensor. 3-pin. Potentiometer. 3-pin.
95
Contact Spring Mercedes-Benz
$3.50
Mercedes-Benz Left exit lights. 0.5 mm2 jpt. To 220 545 17 28. 0.5 mm2 jpt. 0,5-1,0mm2. 0.5 mm2 jpt. Radio 0.5 -1.0 mm2. 0.5 mm2 jpt.
101
Contact Socket Mercedes-Benz
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
113
Housing Upper Part Mercedes-Benz
$3.20
Mercedes-Benz To 009 545 78 28. To 009 545 80 28. Pin bushing housing 6-polig. To 006 545 08 28. To 006 545 78 28 (asr). 6-pole. To 006 545 80 28,123 545 06 28. (plug upper part).
128
Spring Retaining Pin Mercedes-Benz
$3.90
Mercedes-Benz Contact Spring
1.5-2.5mm2. 1.5-2.5 MM2 JPT2.8
Leitungsquerschnitt Min/Max: 1,25-2,5mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: JPT
Model 2: 2.8
Release tool: W000 589 13 99 30
Crimp tool: W220 589 01 99 05.
140
Receptacle Housing Mercedes-Benz
Mercedes-Benz Lock angle sensor. Declutching start unit. Diagnosis ezl. Seat adjustment control unit. Comfort control. Multiple function strip. Electronic accelerator/ snow chain switch. Pneumatic control unit. Pollutant sensor. Intermediate plug connection,diagnosis / tail lamp cable harness.
146
170
Contact Spring Mercedes-Benz
Mercedes-Benz 0,5-1,0 MM2. 0.5-1.0 MM2 JPT2.8
Leitungsquerschnitt Min/Max: 0,5-1,0mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: JPT
Model 2: 2.8.
188
Cap Mercedes-Benz
$5.00
Mercedes-Benz Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).
209
Receptacle Housing Mercedes-Benz
$7.25
Mercedes-Benz Lowith high pressure switch connection. 3-pin jpt. Pressure sensor. 3-pin jpt.
212
Contact Spring Mercedes-Benz
Mercedes-Benz TO 140 545 35 28
Leitungsquerschnitt Min/Max: 0,5-1,0mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: JPT
Model 2: 2.8.
221
Contact Socket Mercedes-Benz
$3.90
Mercedes-Benz 0.5-0.8 MM2. 0.5-1.0 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: SnELA: +Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 0,5-1,0 MM. 0.5-1.0 MM2 RK2.5Leitungsquerschnitt ...
221
Receptacle Mercedes-Benz
Mercedes-Benz 1.0-2.0mm2. 1.0-2.5 MM2 RK2.5
Leitungsquerschnitt Min/Max: 1,5-2,5mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: DIA
Model 2: 2.5. 1,5-2,5 MM2. 1.0-2.5 MM2 RK2.5
Leitungsquerschnitt Min/Max: 1,5-2,5mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: DIA
Model 2: 2.5. 1,5-2,5 MM. 1.0-2.5 MM2 RK2.5
Leitungsquerschnitt Min/Max: 1,5-2,5mm2
Oberflächenschutz PINs: Sn
ELA: +
Model 1: DIA
Model 2: 2.5.
224
Core Bundle Sealing Mercedes-Benz
$1.20
Mercedes-Benz 1.0-2.5 mm2. 2.1-2.9 MM MINI MIC
Leitungsquerschnitt Min/Max: 2,1-2,9mm2
ELA: +
Model 1: MINI MIC. TO 009 545 20 26, 1.5-2.5 MM2. 2.1-2.9 MM MINI MIC
Leitungsquerschnitt Min/Max: 2,1-2,9mm2
ELA: +
Model 1: MINI MIC.
224
Seal Mercedes-Benz
$4.40
Mercedes-Benz SINGLE-WIRE SEAL, GREEN MCP2.8. 3.0-3.7 MM MCP2.8
Leitungsquerschnitt Min/Max: 3-3,7mm2
ELA: +
Model 1: MCP
Model 2: 2.8. TO 009 545 19 26. 3.0-3.7 MM MCP2.8
Leitungsquerschnitt Min/Max: 3-3,7mm2
ELA: +
Model 1: MCP
Model 2: 2.8.
224
Core Bundle Sealing Mercedes-Benz
$3.20
Mercedes-Benz Single-wire seal, dark gray. 1.2-2.0 mm mini micleitungsquerschnitt min/max: 1,2-2mm2ela: +model 1: mini mic. Single-wire seal a13. 1.2-2.0 mm mini micleitungsquerschnitt min/max: 1,2-2mm2ela: +model 1: mini mic. DARK GREY. 1.2-2.0 MM MINI MICLeitungsquers ...
227
Receptacle Housing Mercedes-Benz
$5.50
Mercedes-Benz Headlamp cleaning system pump in container. 2 pin jpt. Metering pump. 2 pin jpt. Windshield washer pump;2-pole. 2 pin jpt. As required. 2 pin jpt. Valve to activated charcoal filter y58/1. 2 pin jpt.
236
Receptacle Housing Mercedes-Benz
$18.50
Mercedes-Benz ITT ESP® hydraulic unit A7/3. 15-PIN RK2.5. Hydraulic unit asr/ets. 15-pin rk2.5.
248
Blanking Plug Mercedes-Benz
$5.50
Mercedes-Benz SPT
Leitungsquerschnitt Min/Max: 7,2-7,3mm2
ELA: -
Model 1: SPT
Release tool: W000 589 13 99 30. Blind plug, black a13. Blind plug, white spt. To 029 545 75 28. Blind plug to 034 545 93 28.
248
Blanking Plug Mercedes-Benz
$3.00
Mercedes-Benz JPT/MCP2.8
Leitungsquerschnitt Min/Max: 5,0-5,5mm2
Model 1: JPT/MCP
Model 2: 2.8. Natural jpt/mcp2.8. Single-wire seal JPT/MCP2.8. Transparent JPT/MCP2.8.
257
Receptacle Housing Mercedes-Benz
$7.00
Mercedes-Benz Control module adaptive cruise control n63/1. 6-pin mqs. Radar sensor for distronic a 89. 6-pin mqs. Proximity-controlled cruise control a89. 6-pin mqs. Distronic a89. 6-pin mqs. Left tail lamp e3*2. 6-pin mqs. Brake assist,six-pin. 6-pin mqs. Rear lamp to left fender. 6-PIN MQS. Control unit bas. 6-pin mqs. Brake assist system connection. 6-pin mqs. Left rear lamps combination (LED) E3. 6-PIN MQS.
281
Receptacle Housing Mercedes-Benz
Mercedes-Benz Starting motor cable harness plugconnection. 5-pin. Valve unit self-levelling device. 5-pin.
290
Receptacle Housing Mercedes-Benz
$5.50
Mercedes-Benz Washer fluid pump. 2-pin jpt. Washer pump m5/1. 2-pin jpt. Windshield washer pump. 2-pin jpt. Windshield washing pump. 2-pin jpt.
305
Plug Housing Mercedes-Benz
Mercedes-Benz Electronic stability program k84,. 9-pin spt/jpt
model 1: dfk / mdk
model 2: 4
slots: 9. Relay. 9-pin spt/jpt
model 1: dfk / mdk
model 2: 4
slots: 9.
308
Socket-Outlet Mercedes-Benz
$7.50
Mercedes-Benz Cooling water pump k60. 5-polig spt/jpt
model 1: dfk4 / mdk5
model 2: 4 / 5
slots: 5. Trumpet horn relay. 5-polig spt/jpt
model 1: dfk4 / mdk5
model 2: 4 / 5
slots: 5. Relay, circuit 15r k41/1. 5-polig spt/jpt
model 1: dfk4 / mdk5
model 2: 4 / 5
slots: 5.
311
Contact Spring Mercedes-Benz
$4.90
Mercedes-Benz Fuse and relay module, driver k40/2. Fuse and relay module, front passenger k40/4. FUSE AND RELAY BOX,DRIVER. 1.0-2.5 MM2 SPT
Leitungsquerschnitt Min/Max: 1,0-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: SPT
Release tool: W000 589 13 99 30.
311
Contact Spring Mercedes-Benz
$3.90
Mercedes-Benz Fuse and relay module, driver k40/2. L3. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: SnELA: -Model 1: SPTRelease tool: W000 589 13 99 30. Copper. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PI ...
335
Contact Socket Mercedes-Benz
$5.25
Mercedes-Benz 0.75mm2. 0.75 MM2
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: MQS.
335
Contact Spring Mercedes-Benz
$5.00
Mercedes-Benz 0,35MM. 0.5-1.0 MM2 E95Leitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: SnELA: -Model 1: E95Release tool: W220 589 01 99 55. 0,5-1,0 MM. 0.5-1.0 MM2 E95Leitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: SnELA: -Model 1: E95Relea ...
344
Contact Pin Mercedes-Benz
$3.90
Mercedes-Benz 0,5-1,0mm2. 0.5-0.75 MM2 LKS1.5
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: LKS
Model 2: 1.5. 0.5-1.0 mm2. 0.5-0.75 MM2 LKS1.5
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: LKS
Model 2: 1.5. 0,5-1,0 MM. 0.5-0.75 MM2 LKS1.5
Leitungsquerschnitt Min/Max: 0,5-0,75mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: LKS
Model 2: 1.5.
350
Cover Mercedes-Benz
$7.25
Mercedes-Benz To 0295454028. 2-pin mqs. Level control control unit connector n51/3*2. 2-pin mqs. Electronic Stability Program control unit TO A 029 545 40 28. 2-PIN MQS. Air suspension control module n51/3. 2-pin mqs.
356
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz From control unit to separation point. 13-pin lks1.5. From front plug connection to rear cable connector 13-polig. 13-pin lks1.5. Plug connection to tail lamp cable harness. 13-pin lks1.5. Plug connection mr-mot. 13-pin lks1.5.
359
Receptacle Housing Mercedes-Benz
Mercedes-Benz From front plug connection to rear cable connector 13-polig. 13-pin lks1.5. Plug connection to tail lamp cable harness. 13-pin lks1.5. Plug connection, separation point. Module box. 13-pin lks1.5. From control unit to separation point. 13-pin lks1.5.
362
Contact Socket Mercedes-Benz
$5.00
Mercedes-Benz 0.5-1.0 mm2. 0.75-1.0 mm2 lks1.5. 0,5-1,0 mm. 0.75-1.0 mm2 lks1.5.
377
Round Receptacle Mercedes-Benz
$8.25
Mercedes-Benz 1MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. 1,0 MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. DATA LI ...
389
Plug Housing Mercedes-Benz
Mercedes-Benz Folding top plug-connection. 2-pin. Adaptive damping system plugconnection. 2-pin. Door separation point,a-pillar. 2-pin.
392
Plug Housing Mercedes-Benz
Mercedes-Benz Door separation point,a-pillar. 2-pin. Heated rear window pane plug-connection. 2-pin. Automatic transmission plug-connection. 2-pin.
395
Plug Housing Mercedes-Benz
Mercedes-Benz Tail lamp cable harness and fuel pump cable "a". 4-pin rk2.5. Plug connection engine/body. 4-pin rk2.5. Plug connection for tail lamp wiring harness,four-pin. 4-pin rk2.5. Diagnosis box plug connection 4-polig. 4-pin rk2.5. Door separation point. 4-pin rk2.5. From light range regulator to rear axle 4-polig. 4-pin rk2.5.
398
Contact Pin Mercedes-Benz
$2.70
Mercedes-Benz 207. 0.5-1.0 MM2 RK2.5
Leitungsquerschnitt Min/Max: 0,5-1,0mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: DIA
Model 2: 2.5. RPM SENSOR 0,5-1,0mm2. 0.5-1.0 MM2 RK2.5
Leitungsquerschnitt Min/Max: 0,5-1,0mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: DIA
Model 2: 2.5. 0,5-1,0 MM. 0.5-1.0 MM2 RK2.5
Leitungsquerschnitt Min/Max: 0,5-1,0mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: DIA
Model 2: 2.5.
401
Plug Housing Mercedes-Benz
$6.25
Mercedes-Benz Control module easy-shift manual tran. Control unit connection. 2-pin jpt
model 1: jpt
model 2: 2.8
slots: 2
release tool: w000 589 13 99 30.
431
Receptacle Housing Mercedes-Benz
Mercedes-Benz Tempomat switch. 6-pin rk2.5. Change-over valve. 6-pin rk2.5. Belt feeder electronics,six-pole. 6-pin rk2.5. Push-button switch,cruise control. 6-pin rk2.5. Overheat warning indicator plugconnection. 6-pin rk2.5. Tempomat (cruise control). 6-pin rk2.5.
437
Receptacle Housing Mercedes-Benz
Mercedes-Benz Interior lamps. 2-pin. Belt locking retractor. 2-pin. Dome lamp,front. 2-pin. Unipolar. 2-pin. Economy drive switch. 4-pole. 2-pin. Trunk lid. 2-pin. Stop light switch 2 polig. 2-pin. Asd/asr. 2-pin. Thermo-switch heating washer system. 2-pin. Parking brake control. 2-pin.
455
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Instrument cluster/speedometer. 12-pin. Instrument cluster, 10-pole. 12-pin.
477
Temperature Sensor Mercedes-Benz
$37.00
Mercedes-Benz Outside temperature indicator. Temperature sensor to front bumper. Outside temperature sensor, in basic carrier at right. Sprinter van. Outside temperature display.
480
Holder Mercedes-Benz
Mercedes-Benz Cable harness to cylinder head. On right cylinder head. At cylinder head cover.
483
Hexalobular Screw Mercedes-Benz
$3.00
Mercedes-Benz Screw
Lines to bracket. Rear axle parking brake. Cover plate to steering knuckle. Bracket to cylinder head cover.
522
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Hexagon Head Bolt
Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.
528
537
Valve Mercedes-Benz
Mercedes-Benz Change-over valve used for increase in shift point. Air injection & exhaust gas recirculation.
537
Valve 1 Mercedes-Benz
$254.00
Mercedes-Benz Front and rear axle differential lock. Economy drive program and increase in shift point. Air injection & exhaust gas recirculation.
540
Sieve Insert Mercedes-Benz
$4.50
Mercedes-Benz Solenoid valve. To valve. Exhaustgas recirculation. Electric change-over valve.
585
Motor Screw Mercedes-Benz
$1.90
Mercedes-Benz Tapping Screw
Covering to stiffening upper part, front. Vacuum element at filler neck flap.
591
Tapping Screw Mercedes-Benz
$2.00
Mercedes-Benz Front fender to wheelhouse bracket. 4.8x13. Partition panel to fire wall,wheelhouse,connection support,and console. 4.8x13. Mounting, cover. 4.8x13. To 140 470 04 47. 4.8x13. Control unit. 4.8x13. Cooling pipe to side member and to engine cross member. 4.8x13. Line to upper rear wall. 4.8x13. High pressure line to subframe. 4.8x13. Screening below gear lever. 4.8x13. Heat shield mounting. 4.8x13.
594
Spring Nut Mercedes-Benz
$2.00
Mercedes-Benz Securing
Control unit to c-pillar. Bracket to c-pillar. Anti-tow-away sensor. Bracket mounting aeg. Instrument panel to cross member. Abs control unit. Control unit to mounting plate. Bracket to wheelhouse. Electronic gas control unit. Instrument panel to knee protection pad.
597
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
416
Pin Housing Mercedes-Benz
$9.50
Mercedes-Benz Nox sensor separation point x86/1. 4-pin lks. 02 sensor after catalytic converter 4-pin. 4-pin lks. Connector housing, nox sensor connecting point x86/1. 4-pin lks. Differential pressure sensor x25/12. 4-pin lks. Four pin, for oxygen sensor downstream of catalytic converter. 4-pin lks.
419
Contact Carrier Mercedes-Benz
$7.50
Mercedes-Benz Contact Support
Nox sensor separation point x86/1. 4-pin lks1.5. 4-pole to 210 540 62 81. 4-pin lks1.5.
471
Receptacle Housing Mercedes-Benz
Mercedes-Benz JPT
Model 1: JPT
Model 2: 2.8
Slots: 4. Me. Engine control module n3/9. 4-pin. Control unit connection. 4-pin. Engine control module 4-polig. 4-pin.
522
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Screw
Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.
528
Hexagon Head Bolt Mercedes-Benz
$2.90
Mercedes-Benz Bolt
Engine hood upper catch to engine hood. Flap to hinge m 6x10.
No.
Part # / Description / Price
487
547
Hexagon Head Bolt Mercedes-Benz
$3.50
Mercedes-Benz Screw
Amplifier at c-pillar. Amplifier to bracket. Reinforcem. At bracket, left.
561
Hexagon Nut Mercedes-Benz
$3.40
Mercedes-Benz Nut
M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
