Exhaust System Used on Twelve-Cylinder Gasoline Vehicles for 2006 Mercedes-Benz SL600

Front left.

Front right.

Exhaust pipe to superch. (upper sect.). Exhaust pipe to turbocharger (upper part).

Exhaust pipe to turbocharger. M8x40.

Left subcarrier.

Right subcarrier.

Control sensor upstream twc conv. Left and right. Control probe in front of catalyst. Right,downstream catalytic converter.

Central muffler.

Rear muffler left.

Left tailpipe trim.

Rear muffler right.

Right ornamental cover.

On rear subframe. To rear axle carrier. Central muffler suspension.

Rear to body. Posterior muffler. Rear on bodyshell. Central muffler suspension.

Spring strut to body. M8
Diameter: 8mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1,25mm
Outside diameter: 17,9mm
Width across flats: 13mm. Suspension strut to body. Torsion bar on body.

Front.

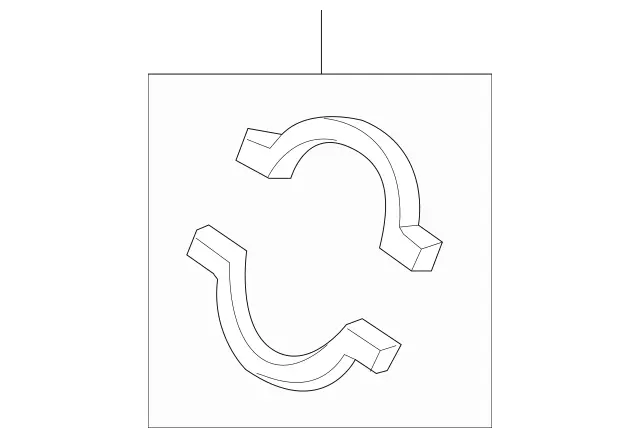

Pipe Clamp

Catalyst to rear exhaust pipe. Flange connection of left and right rear exhaust line. Rear left exhaust pipe. Exhaust system front to rear muffler. Front exhaust pipe. Left exhaust pipe to right exhaust pipe.

Right.

Left.

To exhaust tip.

Left 02 probe upstream of cat. G3/3. Oxygen sensor,black. Oxygen sensor downstream of catalytic converter g3/5. 02 sensor in front of catalytic converter 4-pin. Diagnosis probe. Oxygen sensor plug connection. Fuel delivery pump control unit n118.
