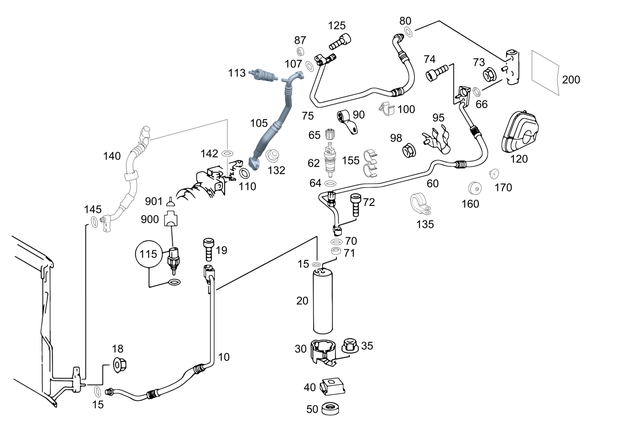

Refrigerant Line Arrangement for 2011 Mercedes-Benz SL63 AMG
No.
Part # / Description / Price
15
O-Ring
Mercedes-Benz
$3.20
Mercedes-Benz Sealing Ring
Sprinter van. Type 1. Refrigerant line to mounting plate. 9.5X2.6
Diameter: 9,5mm
Inside diameter: 9,5mm
Outside diameter: 14,7mm
Material thickness: 2,6mm. Engine Mounted A/C. 9.5 x 2.5mm. All Required. 9.5 x 2.6mm.
62
Valve Element Mercedes-Benz
$19.50
Mercedes-Benz Filling connection. Filler connection. High-pressure line. Filling valve. Suction line. Service connection, high pressure, air conditioning system. Valve element. To refrigerant line.
64

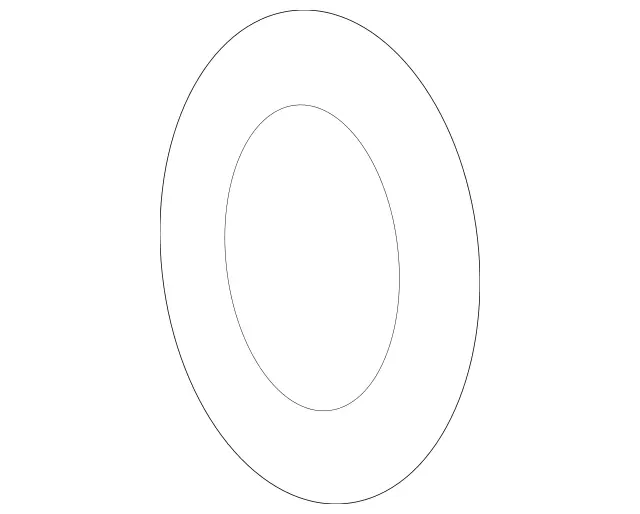

Sealing Ring Mercedes-Benz
$3.70
Mercedes-Benz Heater. 7.5X2.0Strength / hardness class: EPDMInside diameter: 7,5mmOutside diameter: 11,5mmMaterial thickness: 2mm. HEATING. 7.5X2.0Strength / hardness class: EPDMInside diameter: 7,5mmOutside diameter: 11,5mmMaterial thickness: 2mm. MOUNTING PLATE TO DRI ...
71

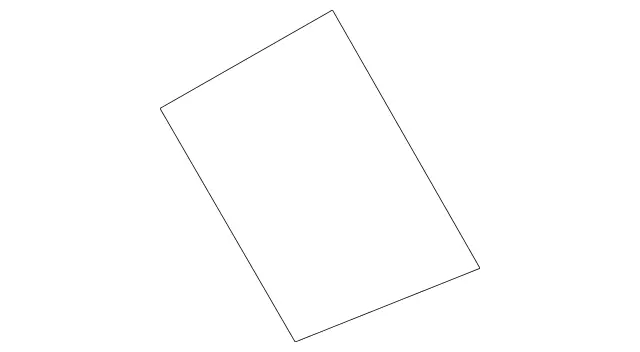

Rear AC Line Guide Mercedes-Benz
$6.25
Mercedes-Benz Guide
Pipe line to condenser. Refrigerant line. At condenser. From condenser to liquid tank. Pressure line to condenser. Roof Mounted A/C. All Required. Center. Pipeline.
74
Hexalobular Screw Mercedes-Benz
$2.40
Mercedes-Benz Holder to left body. M6X20
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Expansion valve to separation point. Bracket to rear axle carrier lh. Bracket to body at left. Fuse box to holder. Link rod to spring link, left. Wiring harness mount. Cable junction to separation point.
80
Sealing Ring Mercedes-Benz
Mercedes-Benz Line to air conditioning system. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOutside diameter: 18mmMaterial thickness: 2mm. TUBING AT EXPANSION VALVE. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOut ...
98
Hexagon Nut Mercedes-Benz
$3.40
Mercedes-Benz M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
107
O-Ring Mercedes-Benz
$1.90
Mercedes-Benz Separation point. 23.8x2.4. Suction line to expansion valve. 23.8x2.4. Suction line to compressor. 23.8x2.4.
110
Sealing Ring Mercedes-Benz
$3.60
Mercedes-Benz Piping to refrigerant compressor. 23.8X2.4Diameter: 28,6mmStrength / hardness class: EPDMInside diameter: 23,8mmOutside diameter: 28,6mmMaterial thickness: 2,4mm. Refrigerant line. 23.8X2.4Diameter: 28,6mmStrength / hardness class: EPDMInside diameter: 23, ...
115
Pressure Sensor Mercedes-Benz
$159.00
Mercedes-Benz Refrigerant line. Reservoir. Sprinter van. Refrigerant condenser. Refrigerant pressure sensor. Roof. Metris. Rear. At condenser,bottom m10.
120
142
Round-Sect Sealing Ring Mercedes-Benz
Mercedes-Benz Round-Sect. Sealing Ring
Piping to condenser. 10.6X2. Line to compressor. 10.6x2.
145
155
Clamp Mercedes-Benz
Mercedes-Benz Clip
To coolant hose. Feed line to return line. Spacer. Hose bracket. Between filling hose and hot water return. Heater return. High pressure line to low pressure line. On feed line. To oil line.
160
Feed-Through Grommet Mercedes-Benz
$7.25
Mercedes-Benz Mounting pipe line. Suction line to shock-absorber strut. Climate line attachment. Refrigerant line to wheelhouse. Piping mount. Refrigerant line to wheel well. Mounting, refrigerant line. Line to crossmember.
170
Snap Fastener Mercedes-Benz
Mercedes-Benz Mounting pipe line. Suction line to shock-absorber strut. Climate line attachment. Piping mount. At solenoid valve. Mounting solenoid valve.
