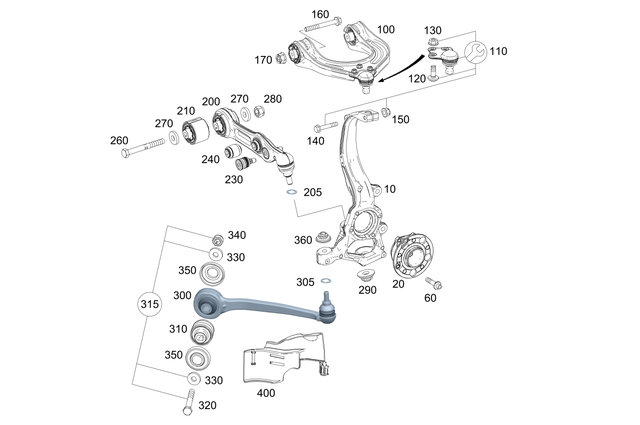

Steering Knuckle and Control Arm for 2013 Mercedes-Benz SL550
No.
Part # / Description / Price
60
Hexalobular Head Screw
Mercedes-Benz
$13.50
Mercedes-Benz BEARING AT LEFT WHEEL CARRIERDiameter: 10mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Left rear wheel bearing to wheel carrierDiameter: 10mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Wheel hub to ...
100
120
Hexalobular Screw Mercedes-Benz
Mercedes-Benz ACTUATOR TO REAR AXLE M8X22
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. BALL JOINT TO TRANSVERSE CONTROL ARM AT TOP, LEFT
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. FASTENING STRUT M8X22
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
140
Hexalobular Screw Mercedes-Benz
$17.00
Mercedes-Benz Upper transverse control arm to left steering knuckle. M10X60-10.9
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Shock absorber to rear axle. Mounting, lower shock absorber. Cross member, top, at steering knuckle, left. Mount, reinforcement to tunnel. Cross strut mount. Engine mount to left and right engine carrier. Mass damper and engine mount to left engine carrier.
160
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz M10X90
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Starter position without starter. Transmission to engine. Starter mount. Starter fastening. Transmission case to crankcase. Starting motor to crankcase. Heat shield mounting. Motor to gearing.
210
Bearing Element, Elastom Mercedes-Benz
$142.00
Mercedes-Benz Left, adjustable bearing. Left, only for camber/caster adjustment.
240
Supporting Joint Mercedes-Benz
$72.00
Mercedes-Benz Left and right. Spring control arm to wheel bearing. Left suspension strut. Wheel carrier. Left spring link.
260
Hexagon Head Bolt Mercedes-Benz
$33.50
Mercedes-Benz Spring link to integral carrier, left. M14X1,5X130
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left and right. Trans. Con. Arm left. Bottom on frame.
260
Screw Mercedes-Benz
$19.50
Mercedes-Benz Spring link to frame-type int. M14x1.5. Thrust arm to support. Spring control arm to integral carrier, left. Spring control arm at frame. Torque strut to frame-type int.
280
Hexagon Nut Mercedes-Benz
$7.00
Mercedes-Benz M14X1.5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to integral carrier. Cross strut to integral carrier. Transverse control arm to left steering knuckle. Torque strut to frame-type int. Supp.. Lower transverse control arm to left wheel carrier.
290
Nut With Clamping Piece Mercedes-Benz
$9.75
Mercedes-Benz Lower control arm to steering knuckle, left. M16. Transverse control arm at left wheel carrier.
320
350
