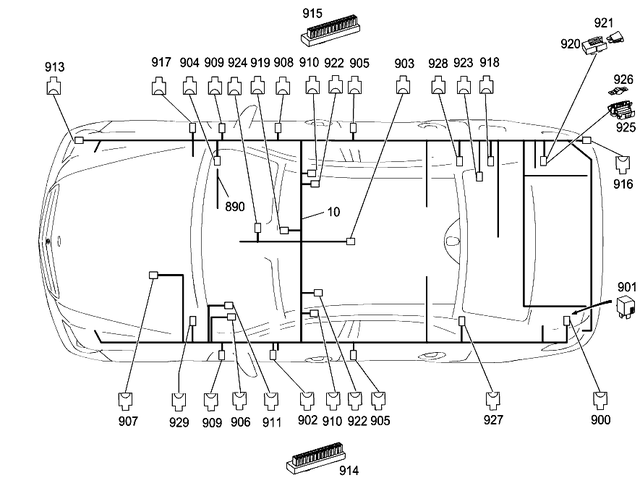

Frame Floor System Main Wiring Harness for 2015 Mercedes-Benz E63 AMG
No.
Part # / Description / Price
60
60
60
100
100
100
100
100
130
150
150
150
150
220
260
300
300
300
310
310
430
Electrical Wiring Harness
Mercedes-Benz
Mercedes-Benz Comand to center console connecting point a40/3*vc to x18/70*2. Comand to reversing camera.
450
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Mutilfunction camera for active lane keeping assist. Multifunction camera.
450
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Mutilfunction camera for active lane keeping assist. Multifunction camera.
500
Electrical Wiring Harness Mercedes-Benz
$83.00
Mercedes-Benz Switch, engine hood s62. Anti-theft alarm system. Pedestrian protection and edw engine hood switch hall sensor a38/1. To a 212 821 01 51. Engine hood contact switch a38/1.
540
540
540
590
660
660
670
900
Receptacle Housing Mercedes-Benz
Mercedes-Benz Relay, heated windshield k13/2. 4-pin dfk2
model 1: dfk2 / maxi-dfk
model 2: 2
slots: 4. Air suspension relay k67*1. 4-pin dfk2
model 1: dfk2 / maxi-dfk
model 2: 2
slots: 4. Battery cutoff relay k57. 4-pin dfk2
model 1: dfk2 / maxi-dfk
model 2: 2
slots: 4. K40/5. SRB rear passenger compartment. plug: ZR1. 4-PIN DFK2
Model 1: DFK2 / Maxi-DFK
Model 2: 2
Slots: 4.
901
Relay Mercedes-Benz
Mercedes-Benz Rear, pos. C,f. Front. HEATED REAR WINDOW PANE RELAYModel 2: Schliesser / closing contactVolt: 12VAmps: 50A. PLUG POSITION: NModel 2: Schliesser / closing contactVolt: 12VAmps: 50A. RELAY SLOT 0, SECONDARY AIR PUMPModel 2: Schliesser / closing contactVolt: ...
902
Contact Socket Housing Mercedes-Benz
$7.50
Mercedes-Benz Voltage distributor connector (can) left x30/38. 3-pin mqs
model 1: mqs
slots: 3. Connector, potential distributor, drive train sensor can x30/38. 3-pin mqs
model 1: mqs
slots: 3. Connector, telematics can bus node x30/35*1. 3-pin mqs
model 1: mqs
slots: 3.
902
Coupling, Mechanical Mercedes-Benz
$1.90
Mercedes-Benz Connector, can-sensor potential distributor x30/38. 2-pin mqs. Connector, dynamics can bus node x30/28. 2-pin mqs. Chassis can/ffs bus node connector x30/30. 2-pin mqs.
902
Coupling, Mechanical Mercedes-Benz
$6.00
Mercedes-Benz Chassis can/ffs bus node connector x30/30*1. 3-pin mqs
model 1: mqs
slots: 3.
902
Coupling, Mechanical Mercedes-Benz
$4.40
Mercedes-Benz Separation point, periphery x30/27. 2-pin mqs. Chassis can/ffs bus node connector x30/30*11. 2-pin mqs.
902
Coupling, Mechanical Mercedes-Benz
$6.25
Mercedes-Benz Connector, driver can/rba body bus node x30/32*1. 3-pin mqs.
902
Coupling, Mechanical Mercedes-Benz
$4.00
Mercedes-Benz Connector, driver can/rba body bus node x30/32. 2-pin mqs. Bus node chassis 2 can/rba x30/26. 2-pin mqs.
903
Contact Socket Mercedes-Benz
$2.90
Mercedes-Benz Automatic transmission program selection s16/12. 4-pin mqsmodel 1: mqsslots: 4. Front center bracket separation point x138/1. 4-pin mqsmodel 1: mqsslots: 4. Push to talk connector x18/46. 4-pin mqsmodel 1: mqsslots: 4. Aux jack x39/45. 4-pin mqsmodel 1: mq ...
903
Housing Mercedes-Benz
Mercedes-Benz Transceiver connector, blue x39/5. 10-pin mqs. Telephone-portable ctel separation point, blue x39/37*3. 10-pin mqs. Breakdown/information button conn. X39/48. 10-pin mqs. Blue center console connector x29/6. 10-pin mqs. Plug connection handy x39/39. 10-pin mqs. Mobile phone disconnecting point. 10-pin mqs. Connector, telephone, armrest, blue x39/47. 10-pin mqs.
904
Plug Mercedes-Benz
$2.10
Mercedes-Benz Connector, cockpit wiring harness and frame floor assembly x18*4. 2-pin mcp6.3. Connector, cockpit wiring harness and frame floor assembly x18/40. 2-pin mcp6.3. Connector cockpit/frame floor system x18/40. 2-pin mcp6.3. Heated rear window pane plug-connection x19. 2-pin mcp6.3.
904
Plug Housing Mercedes-Benz
$15.50
Mercedes-Benz Connector, cockpit wiring harness and frame floor assembly x18*2. 8-pin mqs. Overhead control panel/ffs connector x25/8. 8-pin mqs. Connector emergency call pushbutton x18/37. 8-pin mqs. Interior/roof connector x18/2. 8-pin mqs.
905
Lock Mercedes-Benz
Mercedes-Benz Door separation point, rear x35/3, x35/4. To a 004 545 45 40. Rear left door separation point x35/3*1.
905
906
Plug Mercedes-Benz
$20.00
Mercedes-Benz Connector diagnostics x11/4. 16-pin mt3model 1: mtmodel 2: 3slots: 16release tool: w220 589 01 99 54. DIAGNOSIS PLUG. 16-PIN MT3Model 1: MTModel 2: 3Slots: 16Release tool: W220 589 01 99 54. Separation point, cockpit cable harness x35/66. 16-pin mt3model 1 ...
907
Socket-Outlet Mercedes-Benz
$12.50
Mercedes-Benz Connector, interior/engine black x26*6. 10-pin jpt. Additive reservoir x206. 10-pin jpt. Bi-xenon headlamp. 10-pin jpt.
907
Coupling Housing Mercedes-Benz
$6.75
Mercedes-Benz Tank connector x18/3*1. 8-pin slk2.8. Connector, interior/fuel tank x18/3. 8-pin slk2.8. Interior/engine connector. Plug: 1. 8-pin slk2.8. Engine compartment/engine connector x26/31. 8-pin slk2.8. Servomotor transfer case m46/2. 8-pin slk2.8. Plug connection engine/body x26/2. 8-pin slk2.8. Engine cable harness plug-connection x26. 8-pin slk2.8. Plug connection engine/body x26/25. 8-pin slk2.8.
907
Plug Housing Mercedes-Benz
$4.90
Mercedes-Benz Connector, interior/engine black x26*9. 10-pin jpt. Connector engine partition point x26/2. 10-pin jpt.
907
Plug Mercedes-Benz
$4.90
Mercedes-Benz Magnetic clutch. 4-PIN MLK1.2
Model 1: MLK
Model 2: 1.2
Slots: 4
Release tool: W220 589 01 99 25.
907
Coupling, Mechanical Mercedes-Benz
$3.00
Mercedes-Benz Taillamp to rear-end door at right e4/1. 6-pin mqs. Connector cockpit/frame floor system x18/35. 6-pin mqs. Left tail lamp on trunk lid e3/5. 6-pin mqs. Push to talk switch. 6-pin mqs.
908
Coupling, Mechanical Mercedes-Benz
$5.75
Mercedes-Benz Powertrain can bus node connector x30/21*2. 2-pin mqs
model 1: mqs
slots: 2.
908
Coupling Housing Mercedes-Benz
$4.70
Mercedes-Benz Connector, chassis can potential distributor x30/30. 2-pin mqs
model 1: mqs
slots: 2. Connector, driver can/rba body bus node x30/32. 2-pin mqs
model 1: mqs
slots: 2. Chassis can/ffs bus node connector x30/30. 2-pin mqs
model 1: mqs
slots: 2.
908
Coupling, Mechanical Mercedes-Benz
$5.25
Mercedes-Benz Powertrain can bus node connector x30/21*1. 3-pin mqs. Upper left. 3-PIN MQS.
908
Coupling, Mechanical Mercedes-Benz
$5.50
Mercedes-Benz Connector, telematics can bus node x30/35. 2-pin mqs
model 1: mqs
slots: 2.
908
Coupling, Mechanical Mercedes-Benz
$3.70
Mercedes-Benz Can bus node plug-in connector x30/5. 2-pin mqs
model 1: mqs
slots: 2. Left rear surround speaker H4/62. 2-PIN MQS
Model 1: MQS
Slots: 2. Connector, body can/rba x30/32. 2-pin mqs
model 1: mqs
slots: 2.
909
Plug Mercedes-Benz
Mercedes-Benz Partition point pri. Veh. Warn. Sig. X41/4. 2-pin rk2.5. Door separation point. 2-pin rk2.5.
909
Contact Socket Housing Mercedes-Benz
Mercedes-Benz Left front door separation point, yel. Front left door separation point x35/1. 6-pin slk2.8
model 1: slk
model 2: 2.8
slots: 6.
910
Housing Mercedes-Benz
$3.40
Mercedes-Benz Driver seat connector block, natural color x55/3*7. 4-pin mlk1.2. Connector block, left and right seats x55/3-x55/4 code b. 4-pin mlk1.2. Multi-point plug driver side x55/3. 4-pin mlk1.2.
910
Plug Housing Mercedes-Benz
$12.50
Mercedes-Benz Airbag/driver seat separation point x28/29. 14-pin mqs. Left and right front seats x28/29, x28/30. 14-pin mqs. Contact strip, seat, left and right x55/4. 14-pin mqs. Contact strip front pass. Side yel. X55/3. 14-pin mqs. Airbag separation point, front seat x28/29, x28/30. 14-pin mqs.
910
Plug Mercedes-Benz
Mercedes-Benz Connector block driver seat x55/3. 4-pin mlk1.2. Connector block, left and right seats x55/3-x55/4 code a. 4-pin mlk1.2.
913
Clutch Housing Mercedes-Benz
$10.50
Mercedes-Benz Connector, frame floor assembly and front bumper x26/38*2. 8-pin mlk1.2
model 1: mlk
model 2: 1.2
slots: 8. Connector, frame floor assembly and front bumper x174/1. 8-pin mlk1.2
model 1: mlk
model 2: 1.2
slots: 8. Parktronic system. 8-pin mlk1.2
model 1: mlk
model 2: 1.2
slots: 8.
913
Clutch Housing Mercedes-Benz
$6.00
Mercedes-Benz Connector, frame floor assembly and front bumper x26/38. 16-pin mlk1.2.
913
Clutch Housing Mercedes-Benz
$11.00
Mercedes-Benz Front valve unit y36/1. 4-pin mlk1.2
model 1: mlk
model 2: 1.2
slots: 4. X86/1. Nox sensor control unit separating point. Connector: 1. 4-pin mlk1.2
model 1: mlk
model 2: 1.2
slots: 4.
913
Clutch Housing Mercedes-Benz
$9.00
Mercedes-Benz Connector, frame floor assembly and front bumper x26/38*1. 16-pin mlk1.2
model 1: mlk
model 2: 1.2
slots: 16. Connector, frame floor assembly and front bumper x172/1. 16-pin mlk1.2
model 1: mlk
model 2: 1.2
slots: 16. To bumper wiring harness x213/1. 16-pin mlk1.2
model 1: mlk
model 2: 1.2
slots: 16.
914
Power Distributor Mercedes-Benz
$16.00
Mercedes-Benz Connector, interior can potential distributor x30/32. 12x2/1x3pin. Connector, driver can/rba body bus node x30/32. 12x2/1x3pin.
914
Power Distributor Mercedes-Benz
$27.00
Mercedes-Benz Connector, bus node for body can/ffs at left x30/32. 13 x 2 pin. Bus node chassis 2 can/rba x30/26. 13 x 2 pin. Connector, interior can potential distributor x30/32. 13 x 2 pin.
914
Power Distributor Mercedes-Benz
$20.00
Mercedes-Benz Chassis can/ffs bus node connector x30/30. 12x2/1x3pin. Connector, chassis can potential distributor x30/30. 12x2/1x3pin. Connector, user interface can potential distributor x30/20. 12x2/1x3pin.
915
Distributor Block Mercedes-Benz
$16.50
Mercedes-Benz Connector, front passenger can/rba body bus node x30/33. 13x2pin. Potential distributor. 13x2pin.
915
Distributor Block Mercedes-Benz
$10.50
Mercedes-Benz Connector, dynamics can bus node x30/28. 5x2/1x3pin. 6-pin. 5x2/1x3pin.
915
Distributor Mercedes-Benz
$17.50
Mercedes-Benz Connector, can-sensor potential distributor x30/38. 5x2/1x3pin. Connector, telematics can bus node x30/35. 5x2/1x3pin.
915
Distributor Block Mercedes-Benz
$16.50
Mercedes-Benz Powertrain can bus node connector x30/21. 5x2/1x3pin. Connector, drive train can potential distributor x30/21. 5x2/1x3pin. At bracket z204/6. 5x2/1x3pin.
916
Plug Mercedes-Benz
$7.50
Mercedes-Benz Hitching mechanism plug-connection x52. 4-pin slk 2.8
model 1: slk
model 2: 2.8
slots: 4. Electrical center at trailer control unit x58/33. 4-pin slk 2.8
model 1: slk
model 2: 2.8
slots: 4. Door partition point front left, blue x35/41,. 4-pin slk 2.8
model 1: slk
model 2: 2.8
slots: 4.
917
Coupling, Mechanical Mercedes-Benz
$4.70
Mercedes-Benz Vics+etc power supply separating point x137/1*2. 10-pin mqs. Left interior/rear-end door separating point x8/45*1. 10-pin mqs. Rotary light switch connector x83/11. 10-pin mqs. Comand/audio. Connector: a26/17. 10-pin mqs.
918
Plug Mercedes-Benz
$7.00
Mercedes-Benz Rear-end window roller blind. 6 PIN SLK2.8Model 1: SLKModel 2: 2.8Slots: 6Release tool: W220 589 01 99 62. TANK CONNECTOR X25/4. 6 PIN SLK2.8Model 1: SLKModel 2: 2.8Slots: 6Release tool: W220 589 01 99 62. Rear window roller blind connector x19/3*1. 6 pin ...
920
Fuse Box Mercedes-Benz
$4.20
Mercedes-Benz Protection of auxiliary battery/back-up battery f270*1. Preinstallation for automatic toll recording (vics/etc) f0*1. Toll recording f34/5. Additional battery f1/1. Cockpit fuse block f11/1. Charge level recognition f96. Door control module rear left f64/1. Electronic toll collect fuse f34/5.
920
Lock Mercedes-Benz
$1.20
Mercedes-Benz Fuse box f270*1. Fuse box f96. Fuse box f0*1. To a2045403250. Fuse box f1/1. Fuse box f11/1. To a 204 540 32 50. F64/1.
921
Fuse Mercedes-Benz
$5.00
Mercedes-Benz Fuse Link
Charge level recognition f96. Rear fuse box. Blade fuse ATO. Front, 7.5 amp. Trunk, 7.5 amp. Interior, 7.5 amp. Slot 16 lumbar support adjustment. Slot 3, portable ctel uhi.
922
Plug Housing Mercedes-Benz
$17.50
Mercedes-Benz Nox sensor separation point x86/3, x86/4. 4-pin + 2-pin, mlk1.2
model 1: mlk
model 2: 1.2
slots: 4 + 2. Nox sensor connecting point, left x86/3*1. 4-pin + 2-pin, mlk1.2
model 1: mlk
model 2: 1.2
slots: 4 + 2. Separation point, differential pressure sensor x25/12. 4-pin + 2-pin, mlk1.2
model 1: mlk
model 2: 1.2
slots: 4 + 2.
923
Plug Mercedes-Benz
$4.00
Mercedes-Benz Push to talk connector x18/46*1. Rear head restraint motor connector x55/56*5. Front center bracket separation point x138/1*3. Push to talk connector x18/46*2.
923
Plug Mercedes-Benz
$4.20
Mercedes-Benz Front door connector to frame floor system x35/1 ,x35/2. 2-pin mqsmodel 1: mqsslots: 2. Keyless-go antenna connector x1/51. 2-pin mqsmodel 1: mqsslots: 2. Separation point rear panel door x8/46*3. 2-pin mqsmodel 1: mqsslots: 2. Rear head restraint motor co ...
926
Fuse Link Mercedes-Benz
$7.75
Mercedes-Benz SAM REAR CIRCUIT 30 FUSE F97. 100A
Diameter: 5,5mm
Fastening length: 30mm
Model 1: SF30
Model 2: blue
Amps: 100A. PREFUSE BOX F33N NR F78. 100A
Diameter: 5,5mm
Fastening length: 30mm
Model 1: SF30
Model 2: blue
Amps: 100A.
928
Coupling, Mechanical Mercedes-Benz
$5.00
Mercedes-Benz A40/4. Audio/video splitter module. Rear entertainment unit control unit n66/4*1. 10-pin mqs. Navigation retrofit separation point x1/55*1. 10-pin mqs. Door partition points b-pillar left and right x35/107. 10-pin mqs. Connector: 2. 10-pin mqs. Left and right B-pillar door separation point X35/107. 10-PIN MQS.
