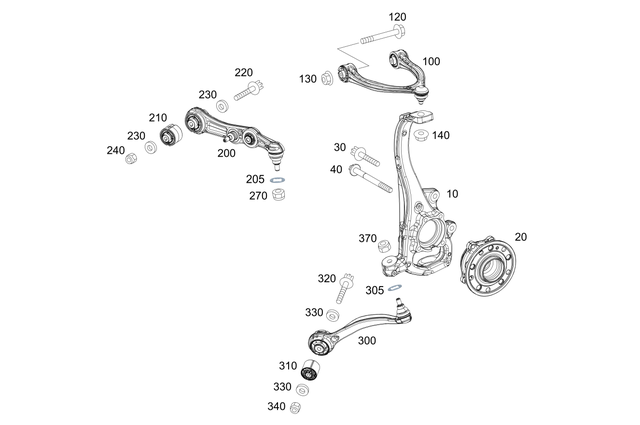

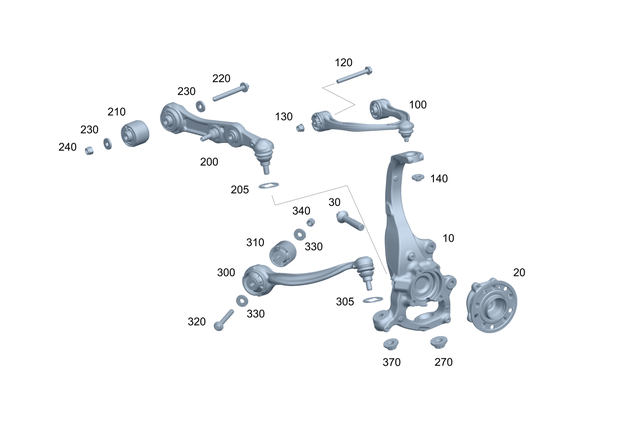

Steering Knuckle and Transverse Control Arm for 2016 Mercedes-Benz C450 AMG
Related Parts
Part # / Description / Price
Bearing Element, Elastom
Mercedes-Benz
$119.00
Mercedes-Benz Left, adjustable bearing. At left, adjustment bearing.
Hex Nut W Flange + Piece Mercedes-Benz
$3.70
Mercedes-Benz Hex. Nut W Flange + Piece
M14X1,5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm. Arm to steer. Knuck. Transverse control arm to left body. Nut, ball joint, transverse control arm, left, upper, front axle.
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz M10X90
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Starter position without starter. Transmission to engine. Starter mount. Starter fastening. Transmission case to crankcase. Starting motor to crankcase. Heat shield mounting. Motor to gearing.
Bihexagonal Nut W Flange Mercedes-Benz
$10.00
Mercedes-Benz Supporting joint to left wheel carrier. Supporting joint to steering knuckle left. Spring link to steering knuckle, left. Spring control arm to steering knuckle, left.
Hexalobular Screw Mercedes-Benz
$34.50
Mercedes-Benz M14X1,5X125
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left spring link to integral carrier. Torque strut to integral carrier, left. Spring link left to frame-type integral support.
Bearing Element, Elastom Mercedes-Benz
$142.00
Mercedes-Benz Left, adjustable bearing. Left, only for camber/caster adjustment.
Hexagon Nut Mercedes-Benz
$7.00
Mercedes-Benz M14X1.5
Diameter: 14mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 21mm. Strut rod to integral carrier. Cross strut to integral carrier. Transverse control arm to left steering knuckle. Torque strut to frame-type int. Supp.. Lower transverse control arm to left wheel carrier.
Hexalobular Head Screw Mercedes-Benz
$6.50
Mercedes-Benz M12X57,5
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. To left steering knuckle, front axle. Wheel bearing left rear. Drive shaft to front wheel hub, left. Wheel bearing to steering knuckle at left M12X57,5.
Nut With Clamping Piece Mercedes-Benz
$9.75
Mercedes-Benz Lower control arm to steering knuckle, left. M16. Transverse control arm at left wheel carrier.
Hexagon Head Bolt Mercedes-Benz
$11.00
Mercedes-Benz M10X95
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Transverse control arm to body at left.
