Rear Suspension Strut and Suspension Strut Mount for 2016 Mercedes-Benz GLE400
No.
Part # / Description / Price
10

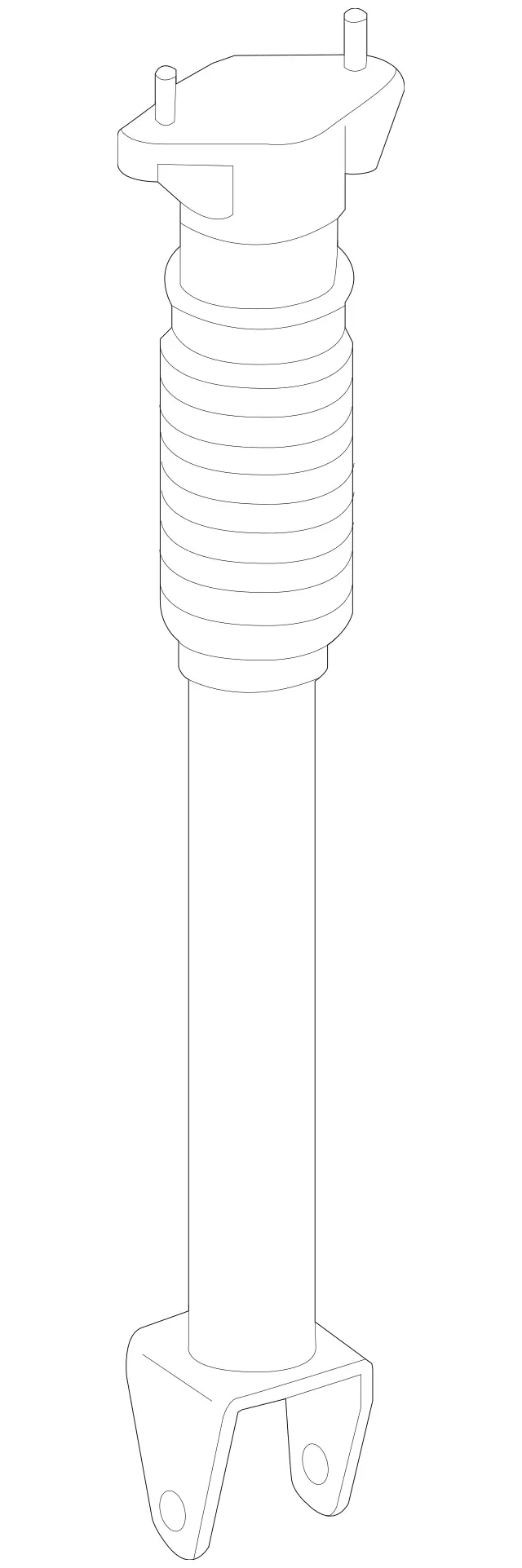

Shock Absorber
Mercedes-Benz
Mercedes-Benz REAR LEFT AND RIGHT
Gefahrgutkennzeichen: 2.4 Gas pressure shock absorbers.
10
Shock Absorber Mercedes-Benz
Mercedes-Benz REAR LEFT AND RIGHT
Gefahrgutkennzeichen: 2.4 Gas pressure shock absorbers.
10
Shock Absorber Mercedes-Benz
$412.00
Mercedes-Benz REAR LEFT AND RIGHT
Gefahrgutkennzeichen: 2.4 Gas pressure shock absorbers.
40
Hexagon Nut Mercedes-Benz
$9.50
Mercedes-Benz Bolted conn. Support bearing with piston rod. M10X1
Diameter: 10mm
Strength / hardness class: 05
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Support bushing at damper. Rear left and right. Damper to support bushing. Shock absorber to bearing.
230
Wiring Harness Mercedes-Benz
$56.00
Mercedes-Benz To rear left and right susp. Strut. Hydropneumatic spring leg to rear axle.
250
255
Connection Fitting Mercedes-Benz
$9.00
Mercedes-Benz Control unit. Compressed air line. To susp. Strut left and right front. To valve block 4 MM. Air spring, left and right. Left and right air suspension strut. Air suspension strut lh & rh.
300
Nut Mercedes-Benz
$4.40
Mercedes-Benz Damper fastening left and right. M8
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Outside diameter: 17,9mm
Width across flats: 13mm. Suspension strut mounting top. Pressure reservoir bracket to body. Shock absorber,top.
310
Sealing Ring Holder Mercedes-Benz
$5.75
Mercedes-Benz Spring to body. Fastening element between body and spring element.
320
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Damper fastening left and right. M16X1.5X100
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Shock absorber to lower control arm. Hydropneumatic spring leg to spring control arm. Suspension strut to left and right spring link.
330
Nut Mercedes-Benz
Mercedes-Benz Spring strut on wishbone. M16X1,5
Diameter: 16mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 34,5mm
Width across flats: 24mm. Damper fastening left and right. Shock absorber to lower control arm.
900
Contact Socket Housing Mercedes-Benz
$5.75
Mercedes-Benz Coolant pressure/temperature sensor b12. 3-pin mqsmodel 1: mqsslots: 3. Alarm unit h3/1. 3-pin mqsmodel 1: mqsslots: 3. Damping module at rear y53, y54. 3-pin mqsmodel 1: mqsslots: 3. Front damping module y51, y52. 3-pin mqsmodel 1: mqsslots: 3. Front door ...
