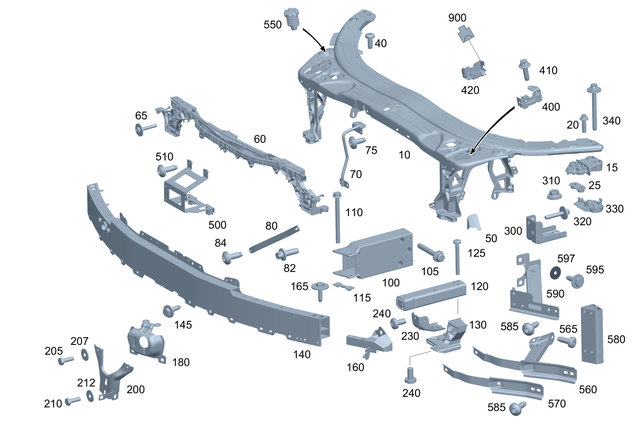

Front Reinforcement and Radiator Support for 2018 Mercedes-Benz C 63 AMG® S
No.
Part # / Description / Price
40
Self-Tap Pan Head Screw
Mercedes-Benz
$1.90
Mercedes-Benz Self-Tap. Pan Head Screw
Mount, left and right strut. M6x15. Crossmember, left and right. Cross strut to mounting console.
65
Self-Tap Pan Head Screw Mercedes-Benz
$1.90
Mercedes-Benz Self-Tap. Pan Head Screw
M6x33. Mounting console to crossmember at left and right.
65
Self-Tap Pan Head Screw Mercedes-Benz
$1.90
Mercedes-Benz Self-Tap. Pan Head Screw
M6x38. Mounting console to left and right crossmember.
84
Upper Hinge Bolt Mercedes-Benz
$1.10
Mercedes-Benz Hexalobular Screw
Hinges & hardware. Rails & components. Handles & locks, passenger side door.
105
Hexagonal Head Screw Mercedes-Benz
$31.00
Mercedes-Benz Mount, crossmember to front longitudinal member. Left and right absorber mount. Absorber to longitudinal member at left and right. Absorber to integral carrier, left and right. Absorber to left and right crossmember. Screw, mount, support, crossmember, front.
115
Threaded Plate Mercedes-Benz
$51.00
Mercedes-Benz Threaded plate, left, mounting support, crossmember, front. Left and right absorber to crossmember.
120
125
Hexalobular Screw Mercedes-Benz
$8.50
Mercedes-Benz Lower absorber to left and right integral carrier
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. ABSORBER AT BOTTOM TO INTEGRAL CARRIER AT LEFT AND RIGHT
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. BRACKET TO ENGINE
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
140
165
Hexagon Head Screw Mercedes-Benz
$1.90
Mercedes-Benz M6x25. Actuator mount. Front end assembly. Left holder. Mount, support to crossmember, left and right. Bracket to crossmember at left and right. Holder to body-in-white. Mounting, tank.
180
200
205
Hexagon Head Bolt Mercedes-Benz
$4.20
Mercedes-Benz M8x25-8.8. Fuel tank to console. Bracket to mounting plate or to transmission. Bracket to bumper. Shackle to torsion bar. Intermediate bearing to frame.
300
300
330
340
Self-Tapping Screw Mercedes-Benz
$3.00
Mercedes-Benz M6x61. Crossmember to longitudinal member at left and right. Plate to crossmember at left and right.
400
Hood Catch Mercedes-Benz
$99.00
Mercedes-Benz To reinforcement at left and right. To crossmember. Left and right lower part. Left and right hood. Bottom. Latch, lower part, hood catch.
410
Self-Tapping Screw Mercedes-Benz
Mercedes-Benz M6x19. Holder mount. Holder to fender and left A-pillar. Screening to side member. Right sensor mount. Hood lock to carrier at left and right. Mount, left and right latch.
420
Switch Mercedes-Benz
$26.00
Mercedes-Benz Left latch/plug. Engine hood catch, left. Engine hood latch, driver side. Hood catch right. Right limit switch. Contact switch, hood catch, left. Engine hood contact for anti-theft alarm system. Left limit switch.
500
565
Hexalobular Screw Mercedes-Benz
$5.25
Mercedes-Benz Reinforcement at rear tunnel. M10X30
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Left longitudinal member, rear. Strut to integral carrier.
900
Socket-Outlet Mercedes-Benz
$29.50
Mercedes-Benz Hood switch S62/43. 2-PIN MQS
Model 1: MQS
Slots: 2. Hood contact switch S62. 2-PIN MQS
Model 1: MQS
Slots: 2. Anti-theft alarm system hood switch S62*1. 2-PIN MQS
Model 1: MQS
Slots: 2. Engine hood contact for anti-theft alarm system s62. 2-pin mqs
model 1: mqs
slots: 2. Switch, engine hood s62*1. 2-pin mqs
model 1: mqs
slots: 2. Hood catch left s62. 2-pin mqs
model 1: mqs
slots: 2.
