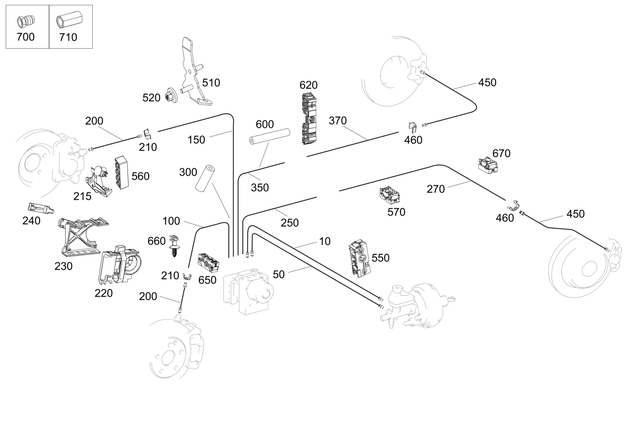

Brake Lines for 2018 Mercedes-Benz SL550

Master brake cylinder 1 to hydraulic unit.

Master brake cylinder 2 to hydraulic unit.

Repair line from hydraulic unit to left front wheel. 5000 MM. Repair line from hydraulic unit to front wheel at right. 5000 mm. Master cylinder to hydraulic unit connection "hz1". 5000 mm. Brake line towards front, left. 5000 MM. Master cylinder connection "v" to hydraulic unit connection "v". 5000 mm. Connecting point to connecting point. 5000 MM.

Front left.

Brake hose and electr. lines to right steering knuckle.

Holder to torsion bar, right.

Brake hose, front, right.

Brake hose to bracket. Holder to torsion bar, left. Brake hose to holder.

Rear left.

Cover to left main floor. Mount, wheel arch liner, left. Wheel arch liner to bodyshell, front axle, front left. Cover to left rear-end floor. Rear holder mount.

Brake line to partition. Fuel, purge and brake line to firewall.

Fastening, brake line to longitudinal member at right front. For rear wheel brake line to main floor. Brake line to partition. Brake line, rear wheels to crossmember.

Fuel and brake lines on main floor, left.

Brake line mount. Brake lines, rear wheel to crossmember. Right front brake line to partition. Brake line to rear-end floor. Brake line to frame. Rear wheel brake line on crossmember. Brake line to left crossmember. Brake line to cross member over rear axle.

Connection. M10. Between hydraulic unit lines and left/right rear axle lines. Brake line. Coupling piece to left rear wheel. Vom ueberg.st.2 zum vorderrad links. Adapter. Between the lines.
