80
- $4.70Line FastenerMercedes-BenzHOSE LINE ATTACHMENT
Diameter: 6,5mm
Outside diameter: 20mm. ATTACHMENT DELIVERY LINE
Diameter: 6,5mm
Outside diameter: 20mm. HOSE LINE TO CROSSMEMBER
Diameter: 6,5mm
Outside diameter: 20mm. Compressed-air line mount
Diameter: 6,5mm
Outside diameter: 20mm. - $4.00Line FastenerMercedes-BenzHose line to crossmember. Attachment delivery line. Compressed air line mounting.
No.
Part # / Description / Price
30
Cable Strap
Mercedes-Benz
$1.70
Mercedes-Benz 80MM. 2,5X102MM
Diameter: 7,9mm
Inside diameter: 0,75mm
Outside diameter: 22 mm
Material thickness: 1mm. AERATION/VENTILATION. 2,5X102MM
Diameter: 7,9mm
Inside diameter: 0,75mm
Outside diameter: 22 mm
Material thickness: 1mm.
80
Line Fastener Mercedes-Benz
$4.70
Mercedes-Benz HOSE LINE ATTACHMENT
Diameter: 6,5mm
Outside diameter: 20mm. ATTACHMENT DELIVERY LINE
Diameter: 6,5mm
Outside diameter: 20mm. HOSE LINE TO CROSSMEMBER
Diameter: 6,5mm
Outside diameter: 20mm. Compressed-air line mount
Diameter: 6,5mm
Outside diameter: 20mm.
80
Line Fastener Mercedes-Benz
$4.00
Mercedes-Benz Hose line to crossmember. Attachment delivery line. Compressed air line mounting.
85
Line Fastener Mercedes-Benz
$3.70
Mercedes-Benz Hose line to crossmember at left. Hose line to crossmember, for two hose lines. Attachment delivery line. Compressed air line mounting.

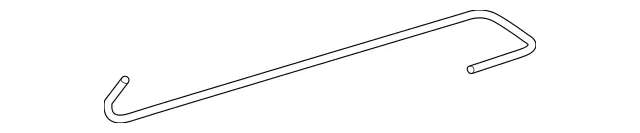

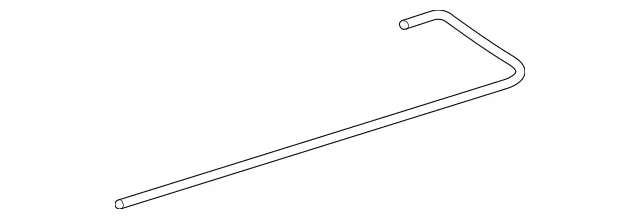

100
Compressed-Air Line Mercedes-Benz
$28.50
Mercedes-Benz Valve unit to left front susp. Repair size. 1520mm. Repair kit. 1520mm. Compressor to suspension strut (repair version). 1520mm. Repair solution: from valve block to left front suspension strut. 1520MM. Repair solution: From valve block to pressure reservoir. 1520MM.
300
Connecting Piece Mercedes-Benz
$77.00
Mercedes-Benz Repair size. To pressure line. Repair solution, front suspension strut.
