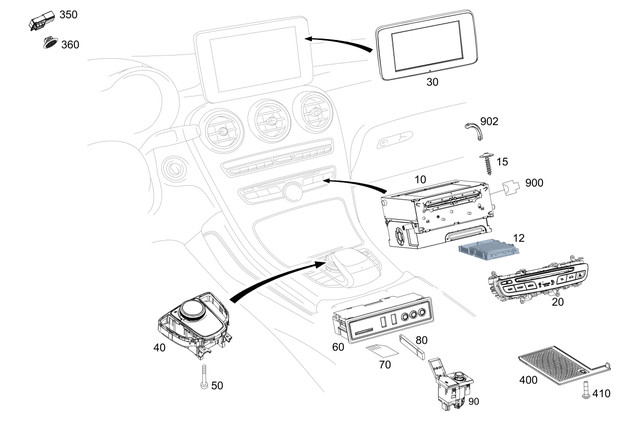

Radio, Operating and Display System for 2019 Mercedes-Benz GLC43 AMG
No.
Part # / Description / Price
10
10
10
10
10
10
30
60
Connection Unit 1
Mercedes-Benz
$189.50
Mercedes-Benz Multimedia box, USB (2x). Multimedia connection unit. Multimedia box, USB, double.
60
Connection Unit Mercedes-Benz
$122.00
Mercedes-Benz Multimedia box, USB, double. Multimedia connection unit. Multimedia box, USB (2x).
70
Exchange Memory Card 1 Mercedes-Benz
Mercedes-Benz Memory Card
Navigation memory card. Initial startup of navigation.
80
80
80
80
80
80
Map Update Mercedes-Benz
Mercedes-Benz Update NTG5.5/V9.0. Usb stick with map data. USB flash drive with map data NTG 5.5.
350
Microphone Mercedes-Benz
$24.50
Mercedes-Benz To left roof lining. Microphone, left, hands-free system/voice control system. In roof lining lh frt. In headliner at left. Upper A-pillar, left. A-pillar, driver's side. Microphone (roof). Front left. Roof lining/headlining.
360
Holder Mercedes-Benz
Mercedes-Benz To left roof lining. Microphone in headliner at left. Upper A-pillar, left. A-pillar, driver's side. Driver's side microphone grille. Microphone in left roof lining. Holder, microphone, right. Left front microphone.
900
Plug Connector Housing Mercedes-Benz
$6.25
Mercedes-Benz Connector: a2. 8-pin mcp2.8
model 1: mqs / pof / mcp
model 2: 2.8
slots: 44. Comand/audio. plug: a26/17*1a2. 8-pin mcp2.8
model 1: mqs / pof / mcp
model 2: 2.8
slots: 44. Control display system comand a40/3. 8-pin mcp2.8
model 1: mqs / pof / mcp
model 2: 2.8
slots: 44. Connector: a26/17*1a2. 8-pin mcp2.8
model 1: mqs / pof / mcp
model 2: 2.8
slots: 44.
900
Coupling, Mechanical Mercedes-Benz
$4.70
Mercedes-Benz Vics+etc power supply separating point x137/1*2. 10-pin mqs. Left interior/rear-end door separating point x8/45*1. 10-pin mqs. Rotary light switch connector x83/11. 10-pin mqs. Comand/audio. Connector: a26/17. 10-pin mqs.
900
Coupling, Mechanical Mercedes-Benz
$5.25
Mercedes-Benz Antenna amplifier a2/18. 1-pin
model 1: iso 20860 / fakra hf
slots: 2. Green. 1-pin
model 1: iso 20860 / fakra hf
slots: 2. Comand/audio. plug: a26/17*h32. 1-pin
model 1: iso 20860 / fakra hf
slots: 2. Comand/audio. plug: a26/17*33b. 1-pin
model 1: iso 20860 / fakra hf
slots: 2. Amplifier a2/18*am. 1-pin
model 1: iso 20860 / fakra hf
slots: 2.
900
Coupling, Mechanical Mercedes-Benz
$4.20
Mercedes-Benz Adder antenna splitter (telephony) A2/109*OUT. 1-PIN
Model 1: ISO 20860 / FAKRA HF
Slots: 2. Antenna a2/91. 1-pin
model 1: iso 20860 / fakra hf
slots: 2.
900
Coupling, Mechanical Mercedes-Benz
$6.75
Mercedes-Benz Tv antenna amplifier a94/1*tv. A40/3. Connector, navigation x1/61*3. White. 2-PIN. Comand/audio. plug: a26/17*ant. 2-pin. Antenna plug: a26/17*31b. 2-pin.
900
Coupling, Mechanical Mercedes-Benz
$2.00
Mercedes-Benz Multifunction camera a40/11. 4 pin hsd
model 1: hsd
slots: 4. Mirror camera X141/4, X141/5. 4 PIN HSD
Model 1: HSD
Slots: 4. Nightview control unit n101. 4 pin hsd
model 1: hsd
slots: 4. Mirror camera b84/7, b84/8. 4 pin hsd
model 1: hsd
slots: 4. COMAND/Audio. plug: A26/17*21A. 4 PIN HSD
Model 1: HSD
Slots: 4.
900
Housing Mercedes-Benz
$3.20
Mercedes-Benz CONNECTOR: A26/17*1C. 12-PIN MQS
Model 1: MQS
Slots: 12
Release tool: W220 589 01 99 60. Audio/comand control panel a40/3*c. 12-pin mqs
model 1: mqs
slots: 12
release tool: w220 589 01 99 60.
900
Contact Support Mercedes-Benz
Mercedes-Benz Comand/audio. Connector: a26/17*1a1. 8-pin mcp2.8
model 1: mcp
model 2: 2.8
slots: 8.
900
Coupling, Mechanical Mercedes-Benz
$3.00
Mercedes-Benz COMAND/Audio. plug: A26/17*22A. 4 PIN HSD
Model 1: HSD
Slots: 4.
900
Clutch Housing Mercedes-Benz
Mercedes-Benz Blue. 2-pin
model 1: iso 20860 / fakra hf
slots: 2. Comand/audio. plug: a26/17*tv. 2-pin
model 1: iso 20860 / fakra hf
slots: 2.
900
900
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Russet brown n101
model 1: hsd
slots: 4. COMAND/Audio. plug: A26/17*17
Model 1: HSD
Slots: 4.
900
Locking Bolt Mercedes-Benz
$4.50
Mercedes-Benz Audio/comand control panel a40/3*a2. To a 001 545 15 30. Contact fuse TO A0015456930. A0035453640. To a0015451530. Comand/audio. plug: to a0015456930. Contact protection to a0015456930, a0035453040. Audio/comand control panel a40/3*2. Contact protection to a 003 545 30 40.
900
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Antenna amplifier a2/18. 1-pinmodel 1: iso 20860 / fakra hfslots: 2. Control unit, backup camera n66/2. 1-pinmodel 1: iso 20860 / fakra hfslots: 2. Rear-view camera b84/3. 1-pinmodel 1: iso 20860 / fakra hfslots: 2. Am/fm amplifier a2/18*1. 1-pinmodel 1: i ...
900
Housing Mercedes-Benz
$3.20
Mercedes-Benz Control unit, sound amplifier n40/3. 12-pin mqs
model 1: mqs
slots: 12
release tool: w220 589 01 99 60.
902
Line Guide Mercedes-Benz
Mercedes-Benz Tv tuner control unit n143*mos. Kink inhibitor for fiber optic cable. Most. Comand a40/3.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
