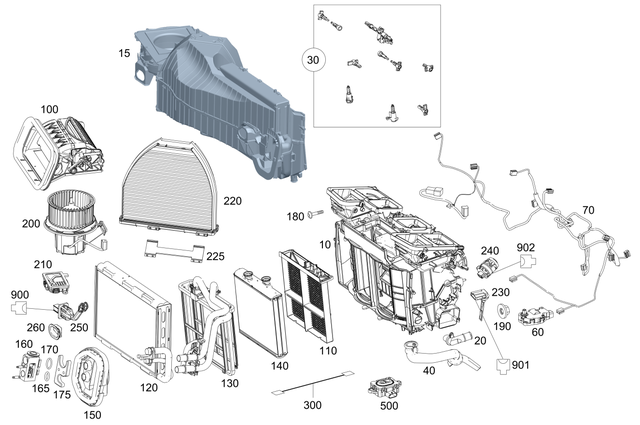

Heater and Evaporator Housing with Blower and Wiring Harness for 2019 Mercedes-Benz SL 550
No.
Part # / Description / Price
15
Parts Kit, Hous , AC Box
Mercedes-Benz
MSRP $134.00
$134.00
Mercedes-Benz Parts Kit, Hous. , AC Box
Upper and lower halves.
60
Stepper Motor Mercedes-Benz
MSRP $77.00
$77.00
Mercedes-Benz Servomotor. Circulating air flap. Air distributor. Fresh air/circulating air. Ventilation flap. Heater/air conditioning.
100
Housing, Air Conditioner Mercedes-Benz
MSRP $370.00
$370.00
Mercedes-Benz Fresh air/recirculated air. Fresh air/circulating air.
165
A/C Line O-Ring Mercedes-Benz
MSRP $5.75
$5.75
Mercedes-Benz Sealing Ring
AT CONDENSER. 10.6X2 MMDiameter: 10,6mmInside diameter: 10,6mmOutside diameter: 14,6mmMaterial thickness: 2mm. PRESSURE LINE TO EXPANSION VALVE. 10.6X2 MMDiameter: 10,6mmInside diameter: 10,6mmOutside diameter: 14,6mmMaterial thickness: 2mm. Refrigerant li ...
170
175
Retaining Plate Mercedes-Benz
MSRP $15.50
$15.50
Mercedes-Benz With screw TO A 220 830 03 84. A 230 830 01 84. (expansion valve).
230
Temperature Sensor Mercedes-Benz
MSRP $33.50
$33.50
Mercedes-Benz Temperature sensor(s), lateral nozzles and left and right footwells. Legroom. In area of A-pillar. Blower. Air duct. Instrument panel. Air conditioner.
240
Temperature Sensor Mercedes-Benz
MSRP $79.00
$79.00
Mercedes-Benz Instrument panel. Next to ignition switch (b10/4). Inboard temperature feeler. Temperature sensor. Metris.
250
Temperature Sensor Mercedes-Benz
MSRP $119.00
$119.00
Mercedes-Benz Sprinter van. To evaporator. Left front in air conditioner housing. Temperature sensor. Heater/air conditioning TO A463 830 06 62,209 830 01 62. Metris. Rear. For Primary HVAC.
260
Dampening Mercedes-Benz
MSRP $7.00
$7.00
Mercedes-Benz Heater case to fire wall. Fire wall decoupling. To evaporator housing. Heater box to firewall. Heater box/air conditioner box.
