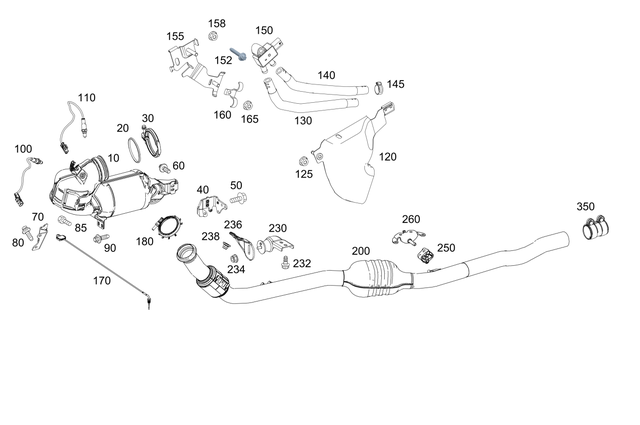

Exhaust System Used on Six-Cylinder Gasoline Vehicles for 2020 Mercedes-Benz GLS450

Front. Without detachable parts.

Front. Without lambda sensors.

Front. With detachable part. Gasoline particulate filter.

Front. Without lambda sensors. Without detachable parts.

Front.

Front. With detachable part.

Front. With detachable part. Gasoline particulate filter.

Front. Without detachable parts.

Profile Clamp, Exh. Sys

Catalytic converter to exhaust gas turbocharger. Between exhaust gas turbocharger and exhaust gas line. Exhaust system at turbocharger. Exhaust gas line to exhaust gas turbocharger. Clamp, exhaust gas line, exhaust gas turbocharger. Front exhaust system mount. Exhaust gas turbocharger to exhaust system.

To crankcase. Holder, exhaust pipe, rear, cylinder head.

M8x20-10.9. Strut mounting m 8x20.

Control probe in front of catalyst. Control sensor upstream of catalytic converter.

Control sensor downstream of catalytic converter. Oxygen sensor downstream of catalytic converter.

Oxygen sensor downstream of catalytic converter.

Upstream of particulate filter.

Downstream of particulate filter.

Particulate sensor. 13.5 MM. Windshield washer reservoir. 13.5 mm. Exhaust gas hose to pressure sensor. 13.5 MM. Exhaust gas line mount. 13.5 MM. Hose line mount. 13.5 MM. To pressure line. 13.5 MM. Left exhaust line. 13.5 mm.

Particulate filter. Differential pressure sensor, exhaust treatment.

Sensor mountDiameter: 6mmStrength / hardness class: 8.8Thread code letter: MThread pitch: 1mm. Fuel filter mountDiameter: 6mmStrength / hardness class: 8.8Thread code letter: MThread pitch: 1mm. Gas line mountDiameter: 6mmStrength / hardness class: 8.8Thre ...

FASTENING, EXHAUST HOSES
Diameter: 6,5mm
Inside diameter: 2X15mm
Material thickness: 1,5mm. Exhaust gas hose
Diameter: 6,5mm
Inside diameter: 2X15mm
Material thickness: 1,5mm.

Upstream of particulate filter. Temperature sensor, gasoline particulate filter.

Profile Clamp, Exh. Sys

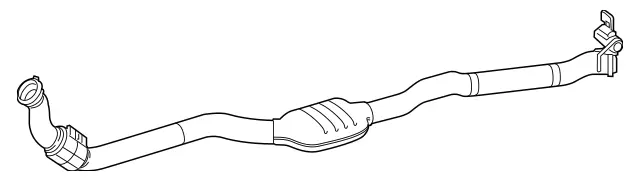

Exhaust line at front to exhaust line at rear. Front exhaust system to center exhaust system. Catalytic converter to exhaust pipe. Exhaust gas line to exhaust gas line. Front exhaust line to left rear exhaust line. Front exhaust pipe to rear exhaust pipe. Exhaust pipe to rear muffler.

On longitudinal member.

Spring strut to body. M8
Diameter: 8mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1,25mm
Outside diameter: 17,9mm
Width across flats: 13mm. Suspension strut to body. Torsion bar on body.

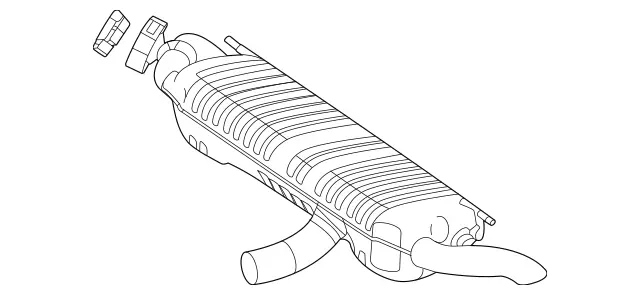

Center left and right rear muffler.

Rear.

Exhaust system, rear. Right rear exhaust gas line. To exhaust line at right.

Exhaust gas flap rr lh. To exhaust line at left.

Rearview mirror to door. M5.

Between holder and carrier.
