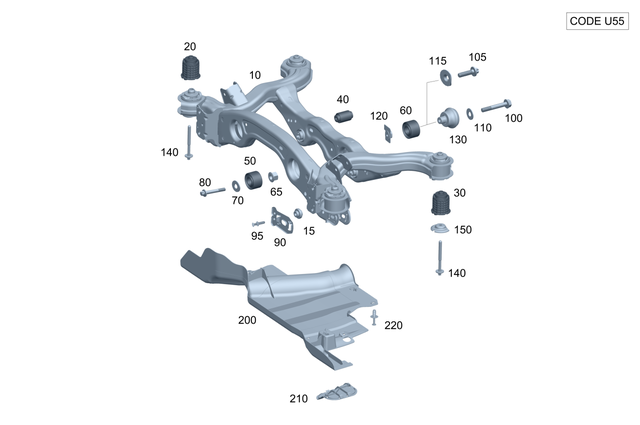

Rear Axle Support for 2022 Mercedes-Benz CLA45 AMG
No.
Part # / Description / Price
15
Rivet Nut
Mercedes-Benz
$1.70
Mercedes-Benz Hinge, upper, front door, left
Diameter: 8mm
Thread code letter: M
Thread pitch: 1mm. Left longitudinal member
Diameter: 8mm
Thread code letter: M
Thread pitch: 1mm. To crossmember
Diameter: 8mm
Thread code letter: M
Thread pitch: 1mm.
40
Spring Link Bushing Mercedes-Benz
Mercedes-Benz Spring link to rear axle carrier, left and right. Spring control arm to rear axle carrier, left and right.
50
Rubber Bushing Mercedes-Benz
$27.00
Mercedes-Benz Axle housing to rear axle carrier, rear. Axle housing to rear subframe,rear. Rear axle differential to carrier, front. Axle housing on rear axle carrier, front. Differential to cross stabilizer rear. Axle housing at rear axle carrier, front.
60
Rear Axle Diff Mount Mercedes-Benz
$32.00
Mercedes-Benz Rear Axle Diff. Mount
Axle housing to rear axle carrier, rear left and right. Rear axle differential to carrier, rear.
65
Hexagon Nut With Flange Mercedes-Benz
$4.40
Mercedes-Benz Rear axle differential to carrier, front. M14x1,5. Axle housing on rear axle carrier, front. Axle housing at rear axle carrier, front. Torque strut at steering knuckle, left. Suspension strut to left and right steering knuckle. Transverse control arm to left steering knuckle. Lower control arm to steering knuckle, left. Rear axle differential to cross member. Tie rod to wheel bearing left.
70
Front Support Washer Mercedes-Benz
$3.00
Mercedes-Benz Window
Crossmember mountDiameter: 14mmInside diameter: 14mmOutside diameter: 30mmMaterial thickness: 2,5mm. Support to left and right bodyDiameter: 14mmInside diameter: 14mmOutside diameter: 30mmMaterial thickness: 2,5mm. Bearing bracket to left and right rear ax ...
80
Hexalobular Screw Mercedes-Benz
$10.00
Mercedes-Benz Rear axle differential to carrier, front. M14X1,5X67
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Axle housing on rear axle carrier, front. Axle housing at rear axle carrier, front. Rear axle differential to cross member.
90
Eccentric End Stop Mercedes-Benz
$3.70
Mercedes-Benz Tie rod to right rear axle carrier HINTEN. Tie rod to rear axle carrier, left HINTEN.
115
Adjusting Plate Mercedes-Benz
Mercedes-Benz Cross bridge, rear left and right to rear axle carrier. 2,5 MM. Left, with 3 notches 2,5 MM. 2,5 MM.
115
Adjusting Plate Mercedes-Benz
Mercedes-Benz Cross bridge, rear left and right to rear axle carrier. 1,5 MM. Left, with 2 notches 1,5 MM. 1,5 MM.
115
Adjusting Plate Mercedes-Benz
Mercedes-Benz Cross bridge, rear left and right to rear axle carrier. 0,5 MM. Left, with 1 notch 0,5 MM. 0,5 MM.
140
Screw W Washer Assembly Mercedes-Benz
$17.00
Mercedes-Benz Rear axle carrier to left frame floor assembly. Rear subframe to frame floor unit, front. Rear axle carrier to front frame floor assembly. Rear axle carrier to frame floor lh.
150
Stop Plate Mercedes-Benz
$5.00
Mercedes-Benz Rear axle carrier to rear left frame floor assembly. Rear axle carrier to front frame floor assembly. Front left. Rear left and right.
340
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Left bearing bracket. M12X120
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Spring link to left rear axle carrier.
370
Hexalobular Screw Mercedes-Benz
Mercedes-Benz M12X1,5X30
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Wheel bearing to wheel carrier left.
390
Expansion Rivet Mercedes-Benz
Mercedes-Benz Left trim to spring link
Diameter: 9,6mm. Trim mount to rear axle
Diameter: 9,6mm. Cover at left to spring control arm
diameter: 9,6mm. Left spring link trim mount
Diameter: 9,6mm. Expansion rivet, trim, spring link, left, rear axle
Diameter: 9,6mm. Attachment, trim to rear axle
diameter: 9,6mm. Left trim to thrust arm
Diameter: 9,6mm.
