Refrigerant Line Arrangement for 2022 Mercedes-Benz E53 AMG
No.
Part # / Description / Price
20
O-Ring
Mercedes-Benz
$8.75
Mercedes-Benz Profile Sealing Ring
To evaporator. Line to condenser. Condenser and connecting point 1/2". Condenser to compressor. Pipe line to refrigerant compressor. Piping to refrigerant compressor. Between evaporator and expansion valve.
100
Condenser Mercedes-Benz
Mercedes-Benz Refrigerant Condenser
Compressor to condenser. Refrigerant. Heater/air conditioning. Sprinter van. 2.0l diesel. With heavy duty rear ac. 2.0l diesel.
110
Pressure Sensor Mercedes-Benz
$159.00
Mercedes-Benz Refrigerant line. Reservoir. Sprinter van. Refrigerant condenser. Refrigerant pressure sensor. Roof. Metris. Rear. At condenser,bottom m10.

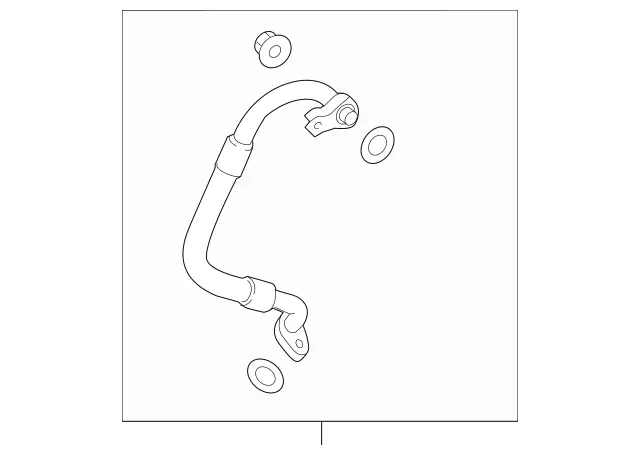

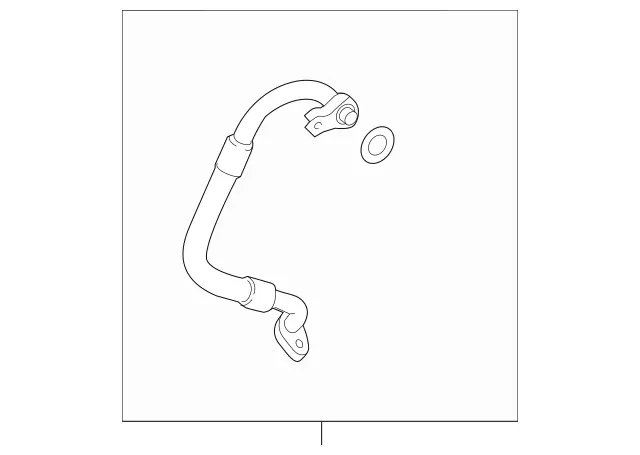

150
Refrigerant Line Mercedes-Benz
$61.00
Mercedes-Benz Condenser to separating point. Condenser to refrigerant reservoir. Condenser to connecting point.
160
O-Ring Mercedes-Benz
$10.50
Mercedes-Benz Profile Sealing Ring
Lower. Condenser and connecting point 3/8". Condenser to connecting point and expansion valve. Pressure line to expansion valve. Refrigerant line to expansion valve and connecting point. Refrigerant line to chiller. Refrigerant line to condenser, expansion valve and refrigerant line . Refrigerant line to shutoff valve. T0 refrigerant line. Refrigerant line to refrigerant line, expansion valve and evaporator.

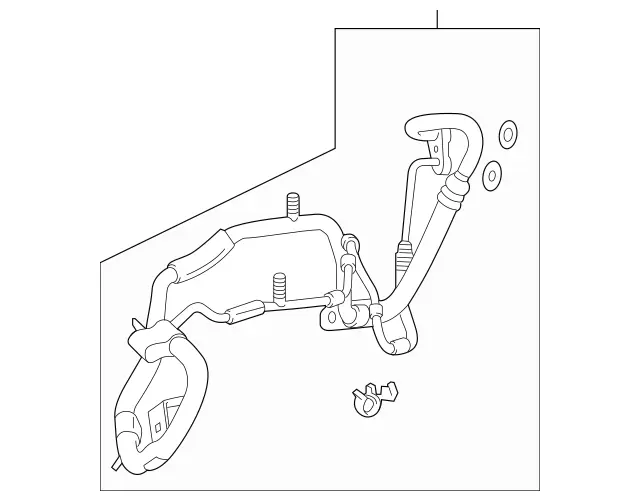

200
Refrigerant Line Mercedes-Benz
$102.00
Mercedes-Benz Refrigerant line to compressor. Connecting point to compressor.
210
O-Ring Mercedes-Benz
$5.50
Mercedes-Benz Profile Sealing Ring
Intake side. Upper. Expansion valve connection. Line to check valve. Piping to refrigerant compressor. Refrigerant line to connecting point and compressor 3/4". Evaporator. Refrigerant line to expansion valve .

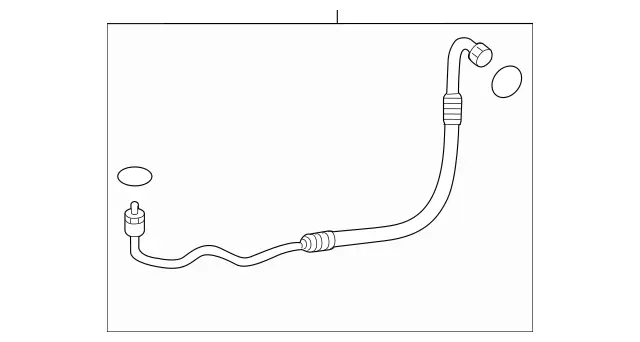

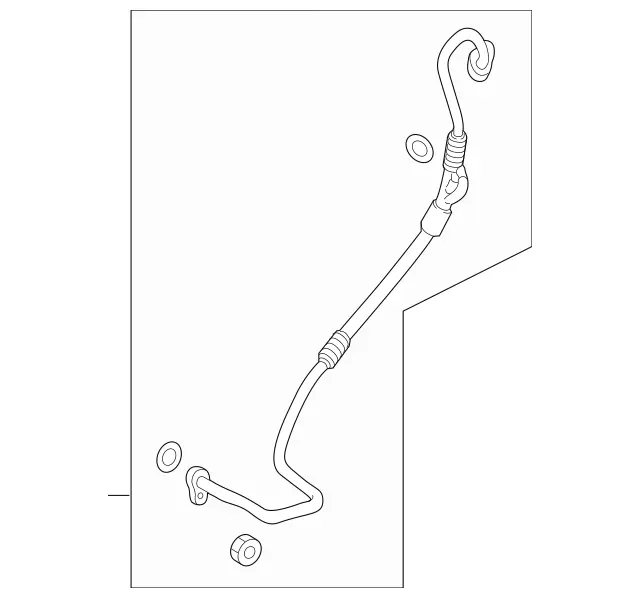

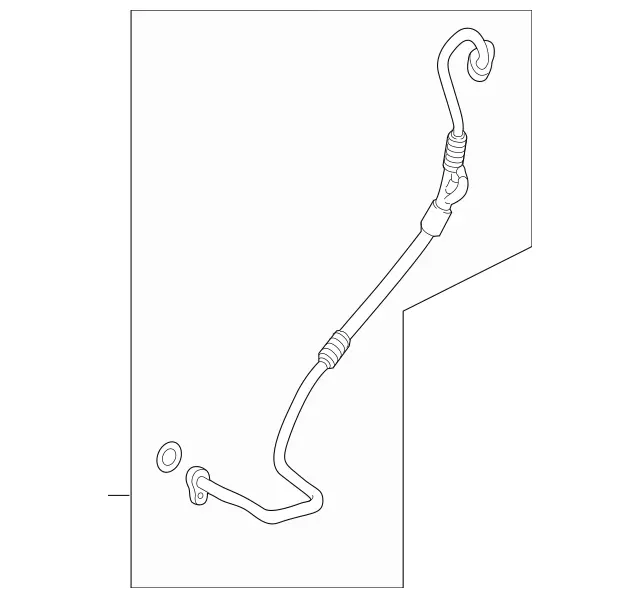

300
Refrigerant Line Mercedes-Benz
Mercedes-Benz Connecting point to expansion valve. Separation point to expansion valve.
300
Refrigerant Line Mercedes-Benz
Mercedes-Benz Connecting point to expansion valve. Separation point to expansion valve.
300
Refrigerant Line Mercedes-Benz
Mercedes-Benz Connecting point to expansion valve. Separation point to expansion valve.
300
Refrigerant Line Mercedes-Benz
$119.00
Mercedes-Benz Connecting point to expansion valve. Separation point to expansion valve.
300
Refrigerant Line Mercedes-Benz
Mercedes-Benz Connecting point to expansion valve. Separation point to expansion valve.
300
Refrigerant Line Mercedes-Benz
Mercedes-Benz Connecting point to expansion valve. Separation point to expansion valve.
350
Double End Stud Mercedes-Benz
$7.50
Mercedes-Benz Refrigerant line to refrigerant line. Connecting point mount. Separation point. Fastening, connecting point. Fastening at expansion valve. Shutoff valve to line. Line to evaporator. Refrigerant lines to condenser.
480
Screw Cap Mercedes-Benz
$6.75
Mercedes-Benz Filler connection. High-pressure line. Cover, service connection, high pressure, air conditioning system. Filling connection m10x1. High-pressure side M10X1. To refrigerant line. Valve.
490
Screw Cap Mercedes-Benz
$12.00
Mercedes-Benz Filler connection. Filling connection. Low-pressure line. Seal. Suction line. Cover, service connection, low pressure, air conditioning system. Low-pressure side M8X1. To refrigerant line. Valve.

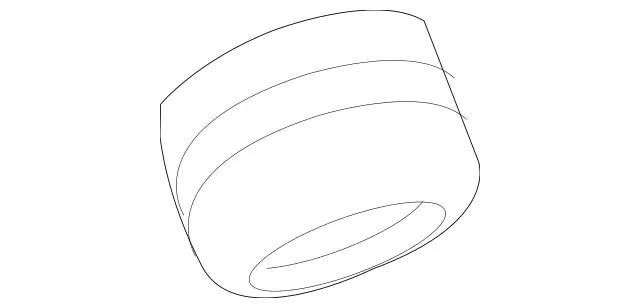

520
Feed-Through Grommet Mercedes-Benz
$3.00
Mercedes-Benz Line to suspension strut. Piping mount. Refrigerant line and holder mount.
530
Snap Fastener Mercedes-Benz
$2.50
Mercedes-Benz Pressure sensor. Line to longitudinal member. Piping mount. Left and right inner longitudinal member. Mounting to connecting member. Refrigerant line to suspension strut tower. Line mount. To cover. Right rear longitudinal member, upper. Line to connecting member.
