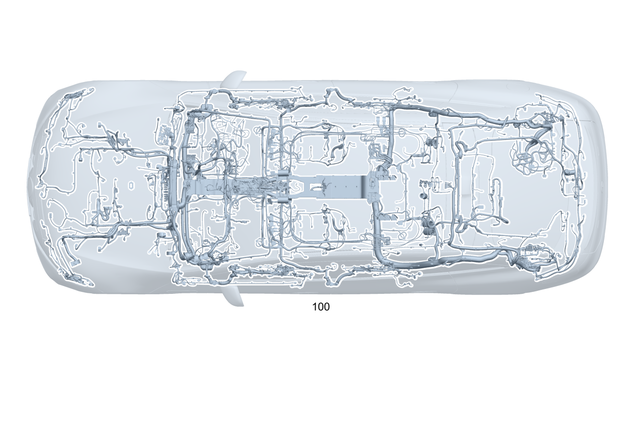

Frame Floor System Main Wiring Harness for 2022 Mercedes-Benz EQS AMG

Interior wiring harness.

Interior, basic scope, parts scope A.

Interior, basic scope, parts scope B.

Interior, basic scope, parts scope A.

Vehicle interior, basic scope, parts scope C, lines with cable cross-section 4mm² and larger.

Interior, basic scope, parts scope A.

Vehicle interior, basic scope, parts scope C, lines with cable cross-section 4mm² and larger.

Interior, basic scope, parts scope B.

Interior, basic scope, parts scope B.

KEYLESS-GO, anti-theft protection.

Prefuse box to DC/DC converter control unit F150/7*A27 TO N83/13*2.

FlexRay bus system, Electronic Stability Program"ESP®". N30/3 - n73/3 und n30/3 - x25/7.

FlexRay bus system, Electronic Stability Program"ESP®". N30/3 - n73/3 und n30/3 - x25/7.

Electronic Stability Program "ESP®" N30/3 TO F150/4.

Electronic Stability Program "ESP®" N30/3 TO F150/7.

Electronic Stability Program "ESP®" N30/3 TO F150/4.

Airbag basic scope. Flexray n2/5 - x18/53.

Airbag basic scope.

Seat belt tensioner.

Seat belt tensioner.

Rear passenger compartment entertainment display.

Digital communication module.

Sound system, basic scope.

Ethernet basic scope. N127 - n73/3 und n73/3 - n10/6.

Ethernet, from electronic ignition lock control unit to head unit. N73/3 - a26/17.

Ethernet, from electronic ignition lock control unit to communication module. N112/2 - n73/3.

Ethernet, from electronic ignition lock control unit to communication module. N112/2 - n73/3.

Ethernet, from electronic ignition lock control unit to connecting point. N73/3 - x18/53.

Ethernet, from electronic ignition lock control unit to parking system control unit. N62/3 - n73/3.

Steering.

Rear axle steering.

Ambient lighting. Ethernet n73/3 - x18/53.

Ambient lighting. Ethernet n73/3 - x18/53.

Trailer coupling.

Networking. Flexray n145 - n73/3.

Drive program.

Drive program.

Heated windshield. Windshield heater.

Rear occupant motion sensor.

Rear occupant motion sensor.

Drive unit, front.

Remote-controlled parking.

Remote-controlled parking.

Power supply F150/4 TO G1/21, N83/13*3.

Power supply F150/4*A56 TO F152/8*E1.

Parking system.

Parking system.

Video line for augmented reality camera.

Video line for augmented reality camera.

Radar sensor.

Radar sensor. Flexray b92/20 - n73/3.

Radar sensor. Flexray b92/20 - n73/3.

Lidar.

Lidar. Ethernet a89/2 - n62/4.

Conditionally automated driving.

Conditionally automated driving. Ethernet n41/7 - n62/6.

Conditionally automated driving. Ethernet n41/7 - n62/6.

Mono camera. Flexray a40/11 - n73/3.

Stereo camera, Ethernet N62/4*E2 TO A40/13*2.

Stereo camera, Ethernet N62/4*E2 TO A40/13*2.

Radar sensor, Ethernet.

Radar sensor, Ethernet.

Radar sensor, Ethernet.

Radar sensor, Ethernet.

Telematics basic scope A26/17-F152/4-W43/2-X18/53-Z100/7.

Telematics basic scope.

Most a26/17-n40/3.

Digital Entertainment A26/17-A26/20.

Multimedia BOX A26/17-A90/5.

Digital communication module A90/5-N112/2.

Digital communication module.

USB port in armrest stowage compartment.

FM2 antenna.

TV antenna.

TV antenna.

TV antenna.

SDAR antenna A2/93-A26/17.

GPS antenna A2/93 to N112/2.

GPS antenna A26/17-A2/93.

GPS antenna A26/17-N112/2.

GPS antenna A26/17-N112/2.

GPS antenna A2/93-N41/8.

Compensator A2/93-A28/15.

Antenna splitter.

Communication module A2/93CE4-N112/2.

Communication module A2/93CE3-N112/2.

Rear Seat Entertainment System A26/20-A90/15-X55/15-X55/16.

Sound system A26/17-F152/11-H4/38-H4/143-N40/3-N156/1-W6/1-X18/53-Z37/93.

USB port.
