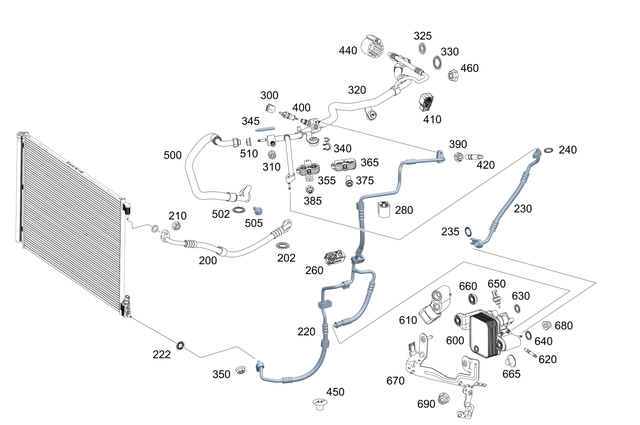

Refrigerant Line Arrangement for 2022 Mercedes-Benz GLE580
No.
Part # / Description / Price
202
O-Ring
Mercedes-Benz
$8.75
Mercedes-Benz Profile Sealing Ring
To evaporator. Line to condenser. Condenser and connecting point 1/2". Condenser to compressor. Pipe line to refrigerant compressor. Piping to refrigerant compressor. Between evaporator and expansion valve.
222
O-Ring Mercedes-Benz
$10.50
Mercedes-Benz Profile Sealing Ring
Lower. Condenser and connecting point 3/8". Condenser to connecting point and expansion valve. Pressure line to expansion valve. Refrigerant line to expansion valve and connecting point. Refrigerant line to chiller. Refrigerant line to condenser, expansion valve and refrigerant line . Refrigerant line to shutoff valve. T0 refrigerant line. Refrigerant line to refrigerant line, expansion valve and evaporator.
260
Line Fastener Mercedes-Benz
$3.90
Mercedes-Benz Cable fastener M 6. 4.6 X 205 MM. Line to longitudinal member. One passage. Line mounting.
300
Screw Cap Mercedes-Benz
$6.75
Mercedes-Benz Filler connection. High-pressure line. Cover, service connection, high pressure, air conditioning system. Filling connection m10x1. High-pressure side M10X1. To refrigerant line. Valve.
310
Screw Cap Mercedes-Benz
$12.00
Mercedes-Benz Filler connection. Filling connection. Low-pressure line. Seal. Suction line. Cover, service connection, low pressure, air conditioning system. Low-pressure side M8X1. To refrigerant line. Valve.
330
O-Ring Mercedes-Benz
$5.50
Mercedes-Benz Profile Sealing Ring
Intake side. Upper. Expansion valve connection. Line to check valve. Piping to refrigerant compressor. Refrigerant line to connecting point and compressor 3/4". Evaporator. Refrigerant line to expansion valve .
340
Clamp Mercedes-Benz
$2.00
Mercedes-Benz Clamp
Inside diameter: 10mm
Outside diameter: 18mm
Material thickness: 2,5mm
Model 1: Schwarz. Refrigerant line mount
Inside diameter: 10mm
Outside diameter: 18mm
Material thickness: 2,5mm
Model 1: Schwarz.
345
Double End Stud Mercedes-Benz
Mercedes-Benz Connecting point. M8. Separation point. Refrigerant line to check valve.
375
Threaded Sleeve Mercedes-Benz
$9.50
Mercedes-Benz Hose line to suspension strut tower. Bracket mounting. Hydropneumatic spring leg dome. At floor. Clamp to underbody. Hose to firewall damping. To coolant line. Wiring harness. Line fastener to holder.
400
Valve Element Mercedes-Benz
$19.50
Mercedes-Benz Filling connection. Filler connection. High-pressure line. Filling valve. Suction line. Service connection, high pressure, air conditioning system. Valve element. To refrigerant line.
420
Double End Stud Mercedes-Benz
$7.50
Mercedes-Benz Refrigerant line to refrigerant line. Connecting point mount. Separation point. Fastening, connecting point. Fastening at expansion valve. Shutoff valve to line. Line to evaporator. Refrigerant lines to condenser.
440
450
Snap Fastener Mercedes-Benz
$2.50
Mercedes-Benz Pressure sensor. Line to longitudinal member. Piping mount. Left and right inner longitudinal member. Mounting to connecting member. Refrigerant line to suspension strut tower. Line mount. To cover. Right rear longitudinal member, upper. Line to connecting member.
