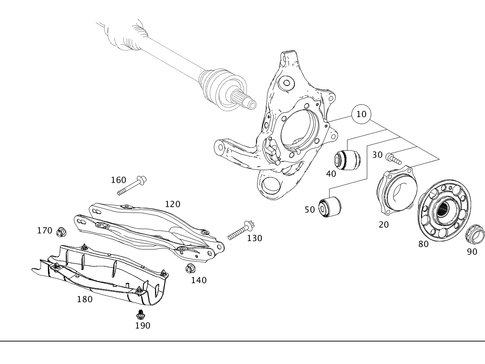

Rear Axle Mount for 2023 Mercedes-Benz E53 AMG
No.
Part # / Description / Price
30

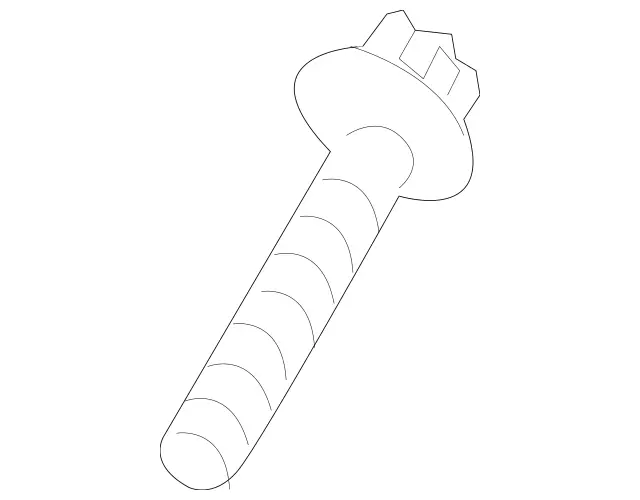

Hexalobular Head Screw
Mercedes-Benz
$13.50
Mercedes-Benz BEARING AT LEFT WHEEL CARRIERDiameter: 10mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Left rear wheel bearing to wheel carrierDiameter: 10mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Wheel hub to ...
40
Supporting Joint Mercedes-Benz
$72.00
Mercedes-Benz Left and right. Spring control arm to wheel bearing. Left suspension strut. Wheel carrier. Left spring link.
50
Elastomer Bearing Mercedes-Benz
$32.00
Mercedes-Benz Thrust arm to left wheel carrier. Thrust arm to wheel bearing.
50
Control Arm Bushing Mercedes-Benz
$24.50
Mercedes-Benz Thrust arm to left wheel carrier. Thrust arm to wheel bearing left.
90
Collar Nut For Ra Shaft Mercedes-Benz
Mercedes-Benz Left
Diameter: 26mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1,5mm
Width across flats: 32mm.
130
Hexalobular Head Screw Mercedes-Benz
$12.00
Mercedes-Benz Spring link to left wheel carrier. M14X1,5X110
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Spring control arm to wheel bearing left. Suspension strut to left and right spring link.
130
Hexalobular Head Screw Mercedes-Benz
$12.00
Mercedes-Benz M14X1,5X81,5
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Spring link to wheel carrier. Spring control arm to wheel bearing left.
160
Cap Screw Mercedes-Benz
Mercedes-Benz M12X1,5X110
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Spring link to rear axle bracket left. Spring link to rear axle carrier. Rear axle carrier left spring link screw.
160
Cap Screw Mercedes-Benz
$9.75
Mercedes-Benz Spring link to left rear axle carrier. M12x1,5x121. Spring link to rear axle bracket left. Rear axle carrier left spring link screw.
180
190
Expansion Rivet Mercedes-Benz
Mercedes-Benz Left trim to spring link
Diameter: 9,6mm. Trim mount to rear axle
Diameter: 9,6mm. Cover at left to spring control arm
diameter: 9,6mm. Left spring link trim mount
Diameter: 9,6mm. Expansion rivet, trim, spring link, left, rear axle
Diameter: 9,6mm. Attachment, trim to rear axle
diameter: 9,6mm. Left trim to thrust arm
Diameter: 9,6mm.
270
300
Cap Screw Mercedes-Benz
Mercedes-Benz M12x1,5x65. Camber strut to rear axle carrier. Thrust arm to wheel bearing left. Thrust arm to left rear axle carrier.
300
Cap Screw Mercedes-Benz
MSRP $21.00
$16.25
Mercedes-Benz Camber strut to left rear axle carrier. M12x1,5x70. Thrust arm to left rear axle carrier.
360
380
Hex Nut W Flange + Piece Mercedes-Benz
$4.50
Mercedes-Benz Hex. Nut W Flange + Piece
Strut to wheel bearing left. M12x1,5. Strut rod to left wheel carrier. Thrust arm to left wheel carrier.
460
Cap Screw Mercedes-Benz
$12.50
Mercedes-Benz Torsion bar to rear axle carrier. M12x1,5x87. Tie rod to wheel bearing left. Camber struts to wheel carrier. Tie rod to wheel carrier. Camber strut to left rear axle carrier.
500
Eccentric Screw Mercedes-Benz
$1.30
Mercedes-Benz Adjustment screw for transverse control arm. M12x104. Tie rod to rear subframe left. Tie rod to left rear axle carrier.
510
Window Mercedes-Benz
$0.30
Mercedes-Benz Tie rod to rear axle carrierDiameter: 12,1mmInside diameter: 12,1mmOutside diameter: 31mmMaterial thickness: 3mm. CAMBER STRUTS TO REAR SUBFRAMEDiameter: 12,1mmInside diameter: 12,1mmOutside diameter: 31mmMaterial thickness: 3mm. TIE ROD TO REAR SUBFRAMEDi ...
550
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz M12x72. Thrust arm to wheel bearing left. Thrust arm to wheel carrier.
