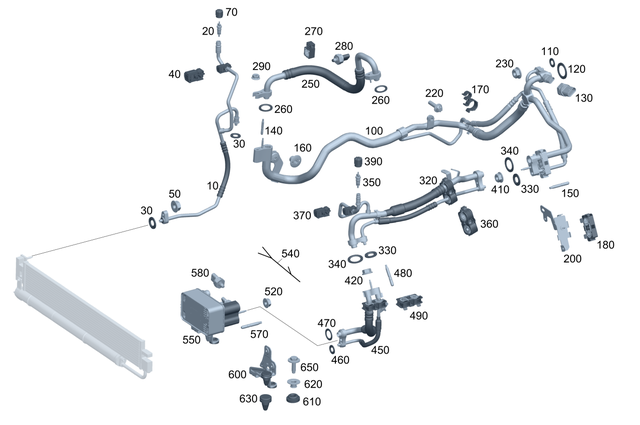

Refrigerant Line Routing for 2023 Mercedes-Benz EQS AMG
No.
Part # / Description / Price
20
Valve Element
Mercedes-Benz
$19.50
Mercedes-Benz Filling connection. Filler connection. High-pressure line. Filling valve. Suction line. Service connection, high pressure, air conditioning system. Valve element. To refrigerant line.
30
O-Ring Mercedes-Benz
$10.50
Mercedes-Benz Profile Sealing Ring
Lower. Condenser and connecting point 3/8". Condenser to connecting point and expansion valve. Pressure line to expansion valve. Refrigerant line to expansion valve and connecting point. Refrigerant line to chiller. Refrigerant line to condenser, expansion valve and refrigerant line . Refrigerant line to shutoff valve. T0 refrigerant line. Refrigerant line to refrigerant line, expansion valve and evaporator.
40
Line Fastener Mercedes-Benz
$3.90
Mercedes-Benz Cable fastener M 6. 4.6 X 205 MM. Line to longitudinal member. One passage. Line mounting.
70
Screw Cap Mercedes-Benz
$6.75
Mercedes-Benz Filler connection. High-pressure line. Cover, service connection, high pressure, air conditioning system. Filling connection m10x1. High-pressure side M10X1. To refrigerant line. Valve.
100
Refrigerant Line Mercedes-Benz
Mercedes-Benz Refrigerant line, pipe system - expansion valve, air conditioning. Connecting point to expansion valve and connecting point.
100
120
O-Ring Mercedes-Benz
$5.50
Mercedes-Benz Profile Sealing Ring
Intake side. Upper. Expansion valve connection. Line to check valve. Piping to refrigerant compressor. Refrigerant line to connecting point and compressor 3/4". Evaporator. Refrigerant line to expansion valve .
130
Pressure + Temp Sensor Mercedes-Benz
Mercedes-Benz Pressure + Temp. Sensor
Refrigerant pressure sensor, low-pressure side. Refrigerant pressure sensor, high-pressure side. To refrigerant line.
140
Double End Stud Mercedes-Benz
$7.50
Mercedes-Benz Refrigerant line to refrigerant line. Connecting point mount. Separation point. Fastening, connecting point. Fastening at expansion valve. Shutoff valve to line. Line to evaporator. Refrigerant lines to condenser.
160
Snap Fastener Mercedes-Benz
$2.50
Mercedes-Benz Pressure sensor. Line to longitudinal member. Piping mount. Left and right inner longitudinal member. Mounting to connecting member. Refrigerant line to suspension strut tower. Line mount. To cover. Right rear longitudinal member, upper. Line to connecting member.
170
Clamp Mercedes-Benz
$2.00
Mercedes-Benz Clamp
Inside diameter: 10mm
Outside diameter: 18mm
Material thickness: 2,5mm
Model 1: Schwarz. Refrigerant line mount
Inside diameter: 10mm
Outside diameter: 18mm
Material thickness: 2,5mm
Model 1: Schwarz.
220
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.
220
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Refrigerant line to battery carrier
Diameter: 6mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm
Width across flats: 10mm. Line to battery frame
Diameter: 6mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm
Width across flats: 10mm.
250
250
250
360
Clamp Mercedes-Benz
Mercedes-Benz Refrigerant line to body. 10 mm + 16-19 mm black. Hydropneumatic spring leg dome. 10 mm + 16-19 mm black. Line to longitudinal member. 10 MM + 16-19 MM BLACK.
390
Screw Cap Mercedes-Benz
$12.00
Mercedes-Benz Filler connection. Filling connection. Low-pressure line. Seal. Suction line. Cover, service connection, low pressure, air conditioning system. Low-pressure side M8X1. To refrigerant line. Valve.
540
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Expansion valve and temperature sensor to engine compartment connecting point. Chiller.
540
Electrical Wiring Harness Mercedes-Benz
Mercedes-Benz Expansion valve and temperature sensor to engine compartment connecting point. Chiller.
600
Holder Mercedes-Benz
Mercedes-Benz For evaporator. Evaporator to flexural crossmember. Connecting point, refrigerant line, condenser, air conditioning/automatic air conditioning - refrigerant line, pipe system.
620
Holder Mercedes-Benz
Mercedes-Benz To refrigerant line
Inside diameter: 8,7mm
Outside diameter: 24mm. Evaporator to holder
Inside diameter: 8,7mm
Outside diameter: 24mm. EVAPORATOR TO BRACKET
Inside diameter: 8,7mm
Outside diameter: 24mm. Holder to strut
Inside diameter: 8,7mm
Outside diameter: 24mm.
650
Hexagon Head Bolt Mercedes-Benz
$4.20
Mercedes-Benz M8x25-8.8. Fuel tank to console. Bracket to mounting plate or to transmission. Bracket to bumper. Shackle to torsion bar. Intermediate bearing to frame.
760
O-Ring Mercedes-Benz
$8.75
Mercedes-Benz Profile Sealing Ring
To evaporator. Line to condenser. Condenser and connecting point 1/2". Condenser to compressor. Pipe line to refrigerant compressor. Piping to refrigerant compressor. Between evaporator and expansion valve.
810
Double End Stud Mercedes-Benz
Mercedes-Benz Connecting point. M8. Separation point. Refrigerant line to check valve.
830
Power Steering Pump Bolt Mercedes-Benz
$4.00
Mercedes-Benz Hexalobular Screw
M8x30. Bracket to transmission cover. Bracket to transmission m 8x30. Slave cylinder to transmission case. Front exhaust pipe to transmission m8 x 30. Bracket to mounting plate or to transmission.
1100
3/2-Way Valve Mercedes-Benz
Mercedes-Benz Regulation valve, refrigerant condenser, air conditioning system. Control valve.
1100
3/2-Way Valve Mercedes-Benz
Mercedes-Benz Regulation valve, refrigerant condenser, air conditioning system. Control valve.
1140
1140
Refrigerant Line Mercedes-Benz
Mercedes-Benz Condenser to valve. Refrigerant line, condenser, heat exchanger, air conditioning system - regulation valve, condenser.
1200
1200
1300
1300
Refrigerant Line Mercedes-Benz
Mercedes-Benz Compressor to condenser. Refrigerant line, refrigerant compressor - condenser, heat exchanger, air conditioning system.
