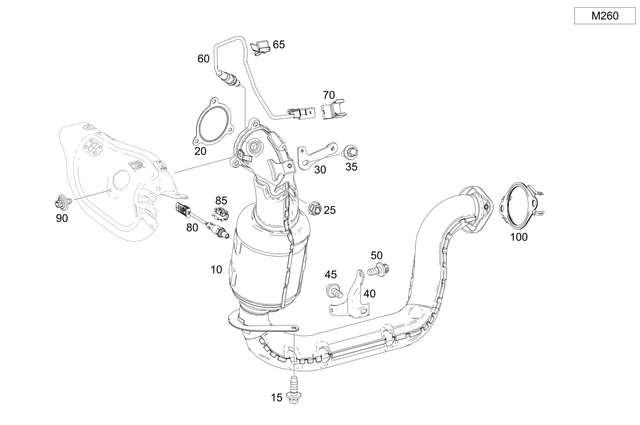

Exhaust System Used on Four-Cylinder Gasoline Vehicles for 2025 Mercedes-Benz CLA35 AMG
No.
Part # / Description / Price
10
10
10
20
Metal-Soft-Material Seal
Mercedes-Benz
$11.00
Mercedes-Benz Between exhaust gas turbocharger and exhaust gas line. Catalytic converter to exhaust gas turbocharger. Exhaust system at turbocharger. Exhaust system to turbocharger. Exhaust gas line to exhaust gas turbocharger. To exhaust pipe. Between exhaust gas turbocharger and exhaust system.
20
20
Multi-Hole Seal Mercedes-Benz
$7.00
Mercedes-Benz Between exhaust gas turbocharger and exhaust line. Between catalytic converter and turbocharger. Exhaust system at turbocharger.
22
Profile Clamp, Exhaust Sys Mercedes-Benz
$37.50
Mercedes-Benz Profile Clamp, Exh. Sys
Catalytic converter to exhaust gas turbocharger. Between exhaust gas turbocharger and exhaust gas line. Exhaust system at turbocharger. Exhaust gas line to exhaust gas turbocharger. Clamp, exhaust gas line, exhaust gas turbocharger. Front exhaust system mount. Exhaust gas turbocharger to exhaust system.
25
Hexagon Nut With Flange Mercedes-Benz
$5.00
Mercedes-Benz Exhaust system to exhaust gas turbocharger M8. Exhaust system at turbocharger. Exhaust pipe to turbocharger. Front exhaust system mount.
30
35
Hexalobular Head Screw Mercedes-Benz
Mercedes-Benz Holder to exhaust gas line. M8X20
Diameter: 8mm
Strength / hardness class: ST
Thread code letter: M
Thread pitch: 1,25mm. Holder mount. Exhaust pipe to turbocharger. To exhaust gas turbocharger.
45
Hexalobular Head Screw Mercedes-Benz
$3.50
Mercedes-Benz Holder to exhaust gas line. M8x15. Holder to exhaust pipe. Holder mount.
60
Lambda Sensor Mercedes-Benz
$200.00
Mercedes-Benz Left control sensor upstream of catalytic converter. Upstream of left and right catalytic converter.
65
Holder Mercedes-Benz
$3.40
Mercedes-Benz Temperature sensor line mount
Material thickness: 0,4mm. LINE TO UNDERFLOOR
Material thickness: 0,4mm. Fastening, nox sensor and temperature sensor at left and right
material thickness: 0,4mm.
70
Fastening Clip Mercedes-Benz
$4.50
Mercedes-Benz Lambda sensor line to charge air line. Left sensor cable. O2 sensor line mount. Sensor cable, right.
85
90
Screw W Washer Assembly Mercedes-Benz
$2.20
Mercedes-Benz Turbocharger shield mount. Heat shield mount. Screening plate to turbocharger. Heat protection.
100
Multi-Hole Seal Mercedes-Benz
$9.25
Mercedes-Benz Front exhaust pipe to center exhaust pipe. Front exhaust gas line to center exhaust gas line.
115
125
Nut Mercedes-Benz
Mercedes-Benz Spring strut to body. M8
Diameter: 8mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1,25mm
Outside diameter: 17,9mm
Width across flats: 13mm. Suspension strut to body. Torsion bar on body.
130
132
Holder Mercedes-Benz
Mercedes-Benz Sensor line mount
Material thickness: 0,4mm. Line mounting
Material thickness: 0,4mm. Temperature sensor mount
Material thickness: 0,4mm.
135
Holder Mercedes-Benz
Mercedes-Benz Temperature sensor holder
Material thickness: 6mm. Fastening, temperature sensor
material thickness: 6mm. Temperature sensor mount
Material thickness: 6mm. To sensor
Material thickness: 6mm.
150
Ft Seat Air Bag Nut Mercedes-Benz
$2.80
Mercedes-Benz Nut
Air bags. 144 wheelbase. 170 wheelbase. Driver side. Passenger side. Reverse warning.
155
165
170
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Carrier fastening. M6X30
Diameter: 6mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Left tail lamp mount. Left and right. Tunnel center.
175
Spring Hose Clamp Mercedes-Benz
$4.50
Mercedes-Benz Coolant hose to engine at top. 14/12 mm. Bleed line mount. 14/12 MM. At charging air intercooler. 14/12 mm. Hose mount. 14/12 MM.
180
240
Pipe Clamp Mercedes-Benz
$75.00
Mercedes-Benz Left exhaust system at right exhaust system. Ø 70 mm. Center exhaust gas line to left and right rear exhaust gas line. Ø 70 MM. Front exhaust gas line to left rear exhaust gas line. Ø 70 MM. Exhaust line at center to exhaust line at left and right rear. Ø 70 mm. Exhaust pipe to rear exhaust pipe. Ø 70 MM.
255
Actuator Component Mercedes-Benz
$348.00
Mercedes-Benz Exhaust system, rear. Right rear exhaust gas line. To exhaust line at right.
265
Power Steering Pump Bolt Mercedes-Benz
$4.00
Mercedes-Benz Hexalobular Screw
M8x30. Bracket to transmission cover. Bracket to transmission m 8x30. Slave cylinder to transmission case. Front exhaust pipe to transmission m8 x 30. Bracket to mounting plate or to transmission.
275
Suspension, Exhaust Gas Line Mercedes-Benz
$29.50
Mercedes-Benz Suspension, Exh. Gas Line
Left rear exhaust system to longitudinal member. Exhaust system to holder. Right. To rear axle. To exhaust line at left. Exhaust gas line.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
