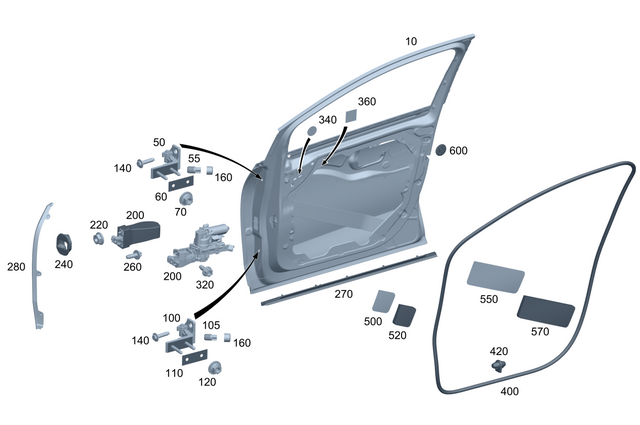

Front Door for 2025 Mercedes-Benz EQE 500 SUV
No.
Part # / Description / Price
70
Nut-And-Washer Assembly
Mercedes-Benz
$1.90
Mercedes-Benz Hinge to left A-pillar, upper. M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 28mm
Width across flats: 16mm. For hinge to left B-pillar. Hinge top left. For hinge to left A-pillar. Nut, hinge, lower, front door, left.
160
Cover Cap Mercedes-Benz
$2.00
Mercedes-Benz To left hinge, top and bottom
Diameter: 11mm
Inside diameter: 10,25mm
Outside diameter: 11mm
Material thickness: 0,75mm. Left door
Diameter: 11mm
Inside diameter: 10,25mm
Outside diameter: 11mm
Material thickness: 0,75mm. Upper and lower left
Diameter: 11mm
Inside diameter: 10,25mm
Outside diameter: 11mm
Material thickness: 0,75mm.
260
Hexalobular Screw Mercedes-Benz
$2.00
Mercedes-Benz M8X25
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Door holder to left B-pillar. Door strap at b-pillar, left. Door strap at a-pillar, left. Door holder or door drive system, left to bodyshell. Door holder to left A-pillar M8X25. Door holder to body-in-white, left. Left mounting console. Hinge, upper, front door, left. Screw, door holder, front door, left.
320
Hexagon Head Bolt Mercedes-Benz
$1.70
Mercedes-Benz Door drive system, left to door. M6X16
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Control unit mount. Gas cartridge to roof frame, left. Holder mount. Holder to body. Upper left holder to fender. Ground line to voltage converter. Holder to battery charger.
340
Adhesive Tape Mercedes-Benz
$1.40
Mercedes-Benz Floor under right rear seat. 25X35 MM. Front left center. 25x35 mm. Left mount. 25X35 MM.
400
Door Seal Mercedes-Benz
$184.00
Mercedes-Benz Left rear door. Left driver's door. Sealing frame, front door, left.
500
Self-Adhesive Precut Part Mercedes-Benz
$4.70
Mercedes-Benz Left driver's door. Rear door, left. Self-adhesive. To paneling. Rear door, right.
520
