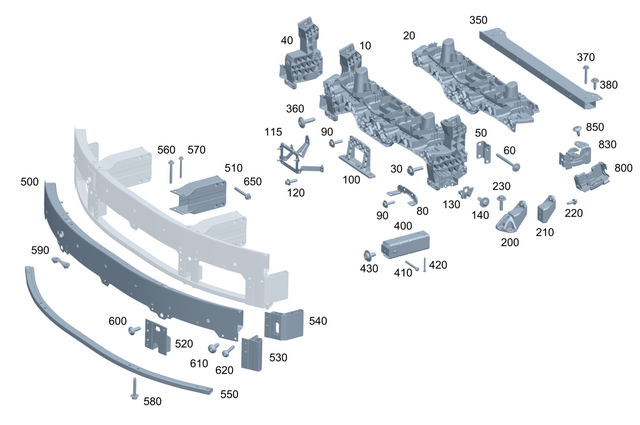

Front Reinforcement and Radiator Support for 2025 Mercedes-Benz EQE AMG SUV
No.
Part # / Description / Price
360
Pan Head Screw W Collar
Mercedes-Benz
$1.50
Mercedes-Benz Holder to body-in-white. Center reinforcement to reinforcing tube. To carrier. Trim mount. Armrest to rear panel. Mount, latch lower part to reinforcement. Mount filler neck. Integral carrier fastening. Mounting, cover.
370
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Left and right reinforcing tube to longitudinal member
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
370
Bolt And Washer Assembly Mercedes-Benz
Mercedes-Benz Left and right reinforcing tube to longitudinal member. M8X65
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,25mm. Reinforcing tube mount to body-in-white.
380
Hexagon Head Screw Mercedes-Benz
$3.50
Mercedes-Benz M8x32,5. For hinge to left door, top and bottom. Left and right reinforcing tube to longitudinal member.
380
Hexagon Head Bolt Mercedes-Benz
$4.20
Mercedes-Benz M8x25-8.8. Fuel tank to console. Bracket to mounting plate or to transmission. Bracket to bumper. Shackle to torsion bar. Intermediate bearing to frame.
410
Hexalobular Screw Mercedes-Benz
$14.00
Mercedes-Benz Left lower impact absorber to mounting console. M8X80
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Jacket tube to front crossmember. Front actuator mount. Actuator to transmission housing. Screw, mount, mounting support, crossmember, front.
420
Hexalobular Screw Mercedes-Benz
$32.50
Mercedes-Benz Lower impact absorber to left integral carrier
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm.
430
Bolt And Washer Assembly Mercedes-Benz
$1.00
Mercedes-Benz Shield to transmission housing. M8X20
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Rear seat, left. Lower left and right absorber to front support. Left and right absorber mount. Left and right retaining bracket mount. Lower absorber to left and right integral carrier. Screwith bolt, mount, support, crash box.
520
520
540
Cross-Member Mercedes-Benz
Mercedes-Benz Crossmember
Support, headlamp, left. Support, outer, left, crossmember, front.
540
Cross-Member Mercedes-Benz
Mercedes-Benz Crossmember
Support, headlamp, right. Support, outer, right, crossmember, front.
560
Hex Head Screw W Flange Mercedes-Benz
Mercedes-Benz Hex. Head Screw W Flange
Left and right impact absorber to crossmember on inside. M14x1,5x130. Left and right absorber mount to crossmember.
570
Step Bumper Bolt Mercedes-Benz
$8.25
Mercedes-Benz Hexagon Head Bolt
Spring loaded type. Left and right impact absorber to crossmember on outside
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Left and right absorber mount to crossmember
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Type 2.
580
Hexagon Head Screw Mercedes-Benz
$7.00
Mercedes-Benz M8x55. Lower crossmember mount. Crossmember to firewall. Wiper system mount to firewall. Lower left and right bracing mount.
600
Upper Hinge Bolt Mercedes-Benz
$1.10
Mercedes-Benz Hexalobular Screw
Hinges & hardware. Rails & components. Handles & locks, passenger side door.
620
Hexalobular Screw Mercedes-Benz
$3.20
Mercedes-Benz Hexalobular Bolt
Left side crossmember to upper crossmember. M8X50
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Center reinforcement mount. Left and right side crossmember mount. Lower crossmember mount.
650
Hexagon Head Screw Mercedes-Benz
$25.00
Mercedes-Benz Left impact absorber to longitudinal member. M12x1,5x98. Absorber to left and right longitudinal member. Reinforcement mount.
800
Switch Mercedes-Benz
$26.00
Mercedes-Benz Left latch/plug. Engine hood catch, left. Engine hood latch, driver side. Hood catch right. Right limit switch. Contact switch, hood catch, left. Engine hood contact for anti-theft alarm system. Left limit switch.
830
Hood Catch Mercedes-Benz
$99.00
Mercedes-Benz To reinforcement at left and right. To crossmember. Left and right lower part. Left and right hood. Bottom. Latch, lower part, hood catch.
