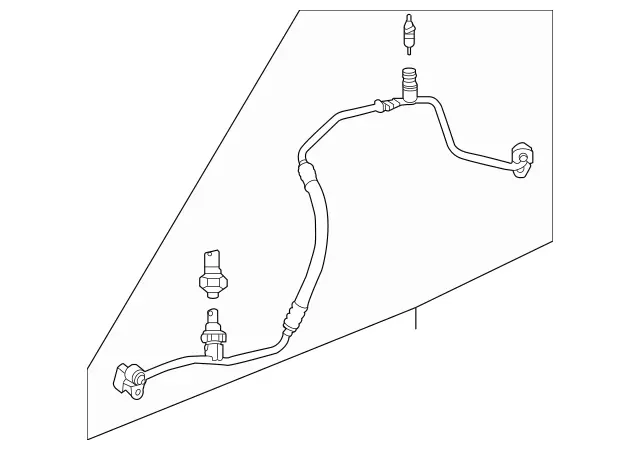

Refrigerant Line Arrangement for 2025 Mercedes-Benz GLB35 AMG
No.
Part # / Description / Price
15
O-Ring
Mercedes-Benz
$8.75
Mercedes-Benz Profile Sealing Ring
To evaporator. Line to condenser. Condenser and connecting point 1/2". Condenser to compressor. Pipe line to refrigerant compressor. Piping to refrigerant compressor. Between evaporator and expansion valve.
85
O-Ring Mercedes-Benz
$10.50
Mercedes-Benz Profile Sealing Ring
Lower. Condenser and connecting point 3/8". Condenser to connecting point and expansion valve. Pressure line to expansion valve. Refrigerant line to expansion valve and connecting point. Refrigerant line to chiller. Refrigerant line to condenser, expansion valve and refrigerant line . Refrigerant line to shutoff valve. T0 refrigerant line. Refrigerant line to refrigerant line, expansion valve and evaporator.
95
Valve Element Mercedes-Benz
$19.50
Mercedes-Benz Filling connection. Filler connection. High-pressure line. Filling valve. Suction line. Service connection, high pressure, air conditioning system. Valve element. To refrigerant line.
105
Pressure Sensor Mercedes-Benz
$159.00
Mercedes-Benz Refrigerant line. Reservoir. Sprinter van. Refrigerant condenser. Refrigerant pressure sensor. Roof. Metris. Rear. At condenser,bottom m10.
120
Screw Cap Mercedes-Benz
$6.75
Mercedes-Benz Filler connection. High-pressure line. Cover, service connection, high pressure, air conditioning system. Filling connection m10x1. High-pressure side M10X1. To refrigerant line. Valve.
140
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.
205
O-Ring Mercedes-Benz
$5.50
Mercedes-Benz Profile Sealing Ring
Intake side. Upper. Expansion valve connection. Line to check valve. Piping to refrigerant compressor. Refrigerant line to connecting point and compressor 3/4". Evaporator. Refrigerant line to expansion valve .
215
Double End Stud Mercedes-Benz
$7.50
Mercedes-Benz Refrigerant line to refrigerant line. Connecting point mount. Separation point. Fastening, connecting point. Fastening at expansion valve. Shutoff valve to line. Line to evaporator. Refrigerant lines to condenser.
220
Double End Stud Mercedes-Benz
Mercedes-Benz Connecting point. M8. Separation point. Refrigerant line to check valve.
230
Buffer Mercedes-Benz
Mercedes-Benz To front module. Mounting, refrigerant line. To compressor. Vibration damper. At front module. To upper holder. Pump mounting.
240
Feed-Through Grommet Mercedes-Benz
$7.25
Mercedes-Benz Mounting pipe line. Suction line to shock-absorber strut. Climate line attachment. Refrigerant line to wheelhouse. Piping mount. Refrigerant line to wheel well. Mounting, refrigerant line. Line to crossmember.
245
Snap Fastener Mercedes-Benz
Mercedes-Benz Refrigerant line to wheelhouse. Refrigerant line to wheel well. Mounting, refrigerant line.
300
Screw Cap Mercedes-Benz
$12.00
Mercedes-Benz Filler connection. Filling connection. Low-pressure line. Seal. Suction line. Cover, service connection, low pressure, air conditioning system. Low-pressure side M8X1. To refrigerant line. Valve.
