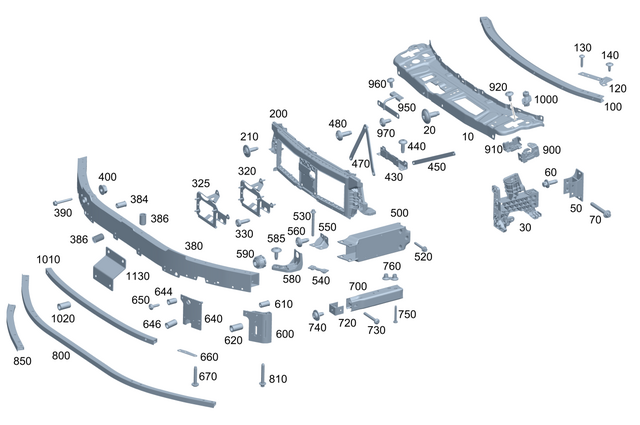

Front Reinforcement and Radiator Support for 2025 Mercedes-Benz GLC43 AMG
No.
Part # / Description / Price
20
Pan Head Screw W Collar
Mercedes-Benz
Mercedes-Benz Reinforcement plate mount. M6x18. Upper reinforcement plate to reinforcing tube.
70
Hexalobular Head Screw Mercedes-Benz
$3.90
Mercedes-Benz Mounting rail, left and right to absorber. M8x60. Left and right absorber mount to crossmember.
130
Hexalobular Screw Mercedes-Benz
$8.00
Mercedes-Benz Mount, left and right holder. M8X40
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Left and right holder to front-end assembly.
200
330
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Support to crossmemberDiameter: 6mmStrength / hardness class: 8.8Thread code letter: MThread pitch: 1mm. Left mounting support to load compartment floorDiameter: 6mmStrength / hardness class: 8.8Thread code letter: MThread pitch: 1mm. FASTENING, FRONT ROLL ...
Not For Sale
384
Rivet Nut Mercedes-Benz
$1.00
Mercedes-Benz Rivet nut, outer, crossmember, front
Diameter: 6mm
Thread code letter: M
Thread pitch: 1mm. LEFT ABSORBER
Diameter: 6mm
Thread code letter: M
Thread pitch: 1mm. Left and right
Diameter: 6mm
Thread code letter: M
Thread pitch: 1mm. Rear M6X16.5
Diameter: 6mm
Thread code letter: M
Thread pitch: 1mm. IN CROSSMEMBER
Diameter: 6mm
Thread code letter: M
Thread pitch: 1mm.
386
Rivet Nut Mercedes-Benz
Mercedes-Benz Left front M8X17,5. M8
Diameter: 8mm
Thread code letter: M
Thread pitch: 1mm. Upper and front M8X17,5.
390
Hexagon Head Bolt Mercedes-Benz
$3.50
Mercedes-Benz Torsion bar to carrier. M8X60
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Crossmember mount. Torsion bar to frame-type integral support.
430
440
Upper Hinge Bolt Mercedes-Benz
$1.10
Mercedes-Benz Hexalobular Screw
Hinges & hardware. Rails & components. Handles & locks, passenger side door.
520
Hexagonal Head Screw Mercedes-Benz
$31.00
Mercedes-Benz Mount, crossmember to front longitudinal member. Left and right absorber mount. Absorber to longitudinal member at left and right. Absorber to integral carrier, left and right. Absorber to left and right crossmember. Screw, mount, support, crossmember, front.
540
Threaded Plate Mercedes-Benz
$51.00
Mercedes-Benz Threaded plate, left, mounting support, crossmember, front. Left and right absorber to crossmember.
580
620
Rivet Nut Mercedes-Benz
Mercedes-Benz Rivet nut, inner, crossmember, front
Diameter: 8mm
Thread code letter: M
Thread pitch: 1mm. Left front M8X20,4
Diameter: 8mm
Thread code letter: M
Thread pitch: 1mm.
650
Hexalobular Screw Mercedes-Benz
$5.25
Mercedes-Benz M8X30
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Battery mount. Left and right support mount. Fastening, guard plate. Left and right support to crossmember. Side wall mount. Screwith bolt, mount, strut, crash box, crossmember, front. Hinge, left and right m6x16.
670
Hexalobular Screw Mercedes-Benz
$3.20
Mercedes-Benz Hexalobular Bolt
Left side crossmember to upper crossmember. M8X50
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Center reinforcement mount. Left and right side crossmember mount. Lower crossmember mount.
700
720
730
Hexalobular Screw Mercedes-Benz
$1.20
Mercedes-Benz Left and right absorber mount. M8X60
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Left absorber to mounting console. Screw, mount, mounting support, crossmember, front. Retaining bracket to left and right absorber.
740
Flat Head Screw Mercedes-Benz
$2.20
Mercedes-Benz M8x22. Left and right retaining bracket mount. Screwith bolt, mount, support, crash box. Mount, absorber to bracing, left and right. Retaining bracket to left and right bracing.
740
Bolt And Washer Assembly Mercedes-Benz
$1.00
Mercedes-Benz Shield to transmission housing. M8X20
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Rear seat, left. Lower left and right absorber to front support. Left and right absorber mount. Left and right retaining bracket mount. Lower absorber to left and right integral carrier. Screwith bolt, mount, support, crash box.
750
Hexalobular Screw Mercedes-Benz
$7.25
Mercedes-Benz Cross strut to mounting console
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Left and right absorber to integral carrier
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm.
750
Fillister Head Screw Mercedes-Benz
Mercedes-Benz Left and right absorber mount. M10X75
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm.
760
Threaded Plate Mercedes-Benz
$12.00
Mercedes-Benz Threaded plate, left, mounting support, crossmember, front. To left and right absorber. Left and right absorber mount. Left absorber to integral carrier.
810
Hexalobular Screw Mercedes-Benz
$3.50
Mercedes-Benz Tensioning strap to body. M8X55
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Strut to suspension strut tower, left and right. Lower crossmember mount. Left support to body. Left and right strut mount to shock-absorber strut console. Bolt/nut, clamping strap. Screw, mount, crossmember, front, bottom. Rear right tensioning strap.
900
Hood Catch Mercedes-Benz
$99.00
Mercedes-Benz To reinforcement at left and right. To crossmember. Left and right lower part. Left and right hood. Bottom. Latch, lower part, hood catch.
910
Switch Mercedes-Benz
$26.00
Mercedes-Benz Left latch/plug. Engine hood catch, left. Engine hood latch, driver side. Hood catch right. Right limit switch. Contact switch, hood catch, left. Engine hood contact for anti-theft alarm system. Left limit switch.
970
