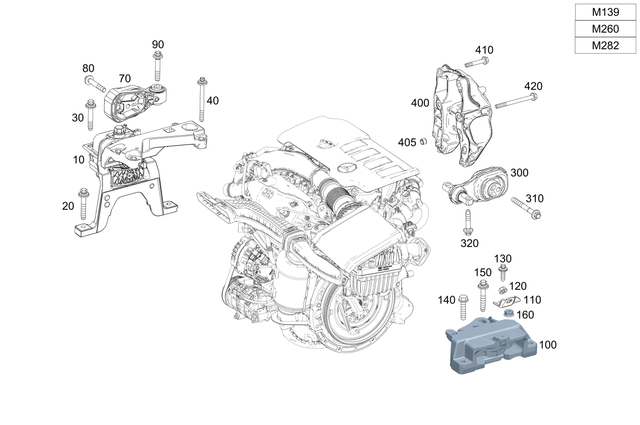

Engine Suspension for 2026 Mercedes-Benz CLA35 AMG
No.
Part # / Description / Price
20
Hexalobular Screw
Mercedes-Benz
$3.50
Mercedes-Benz Engine mount to longitudinal member, right. M12X1,5X60
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Transmission mount to longitudinal member.
30
Screw W Washer Assembly Mercedes-Benz
$2.20
Mercedes-Benz Steering gear bracket to subframe, lh. M10x1,5x35. Mount for engine mount, right. Cross strut to longitudinal member. Left front reinforcement plate. Engine mount to wheel well, right.
90
Hexalobular Screw Mercedes-Benz
$10.50
Mercedes-Benz Steering gear to integral carrierDiameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Wheel bearing to left steering knuckle, upper M12X1.5X70Diameter: 12mmStrength / hardness class: 10.9Thread code letter: MThread pitch: ...
110
Holder, Transmission Mount Mercedes-Benz
$13.50
Mercedes-Benz Holder, Transm. Mount
To bearing bracket. Transmission mount, left. Transmission suspension to wheel well, left.
130
Hexagon Head Bolt Mercedes-Benz
$2.90
Mercedes-Benz Attachment, gearbox mount lh. M10X30-10.9
Diameter: 10mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Holder to transmission mount. Air venting system to holder. Left mount for transmission mount. At frame, left.
150
Screw W Washer Assembly Mercedes-Benz
$11.00
Mercedes-Benz Transmission mount to transmission. Holder to transmission. To transmission, left. Engine mount to supporting frame, right.
310
Hexalobular Screw Mercedes-Benz
$11.50
Mercedes-Benz Pendulum support to integral carrier. M12X110
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Pendulum support at frame-typeintegral support. Bearing bracket to rear axle carrier.
320
Hexalobular Head Screw Mercedes-Benz
$3.00
Mercedes-Benz Pendulum support to engine. M12x1,5x60. Pendulum support at engine. Pendulum support to support.
