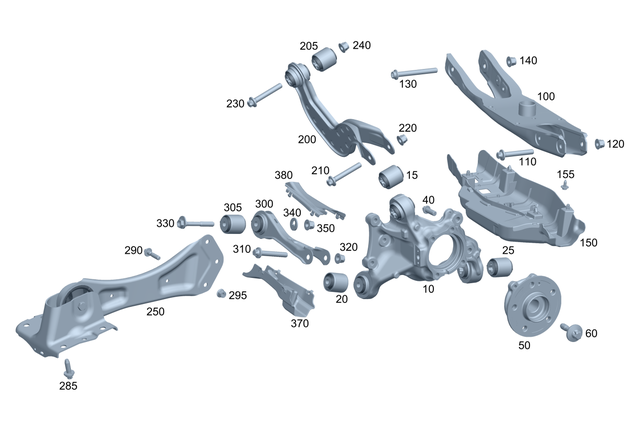

Rear Axle Mount for 2026 Mercedes-Benz GLB35 AMG
No.
Part # / Description / Price
25

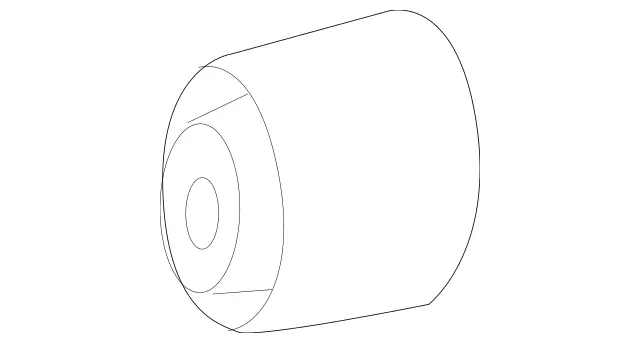

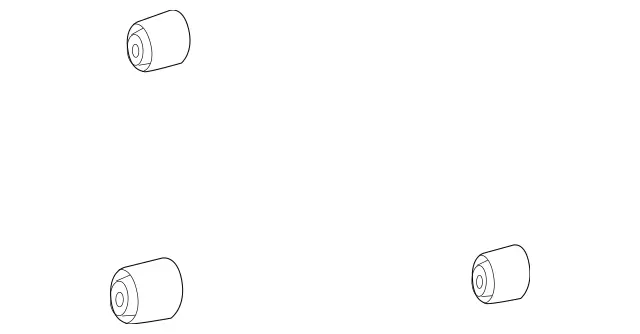

Spring Link Bushing
Mercedes-Benz
Mercedes-Benz Spring link to left wheel carrier. Spring link to steering knuckle, left.
25
Spring Link Bushing Mercedes-Benz
Mercedes-Benz Spring link to left wheel carrier. Spring link to steering knuckle, left.
40
Hexalobular Head Screw Mercedes-Benz
$10.50
Mercedes-Benz M12X1,5X45
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Wheel bearing to wheel carrier left. Wheel bearing to steering knuckle at left. Front left. Screw, double-row angular ball bearing, left.
60
Hexalobular Head Screw Mercedes-Benz
$5.50
Mercedes-Benz Left side shaft, outboardDiameter: 14mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Rear axle shaft to left and right wheel flangeDiameter: 14mmStrength / hardness class: 10.9Thread code letter: MThread pitch: 1,5mm. Bolt, rear ...
110
Hexalobular Screw Mercedes-Benz
$10.00
Mercedes-Benz Cross stabilizer front to side element. M12X1.5X 80-10.9
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Spring control arm to wheel bearing left. Spring link to left wheel carrier. Torsion bar to rear axle. Spring link to left rear axle carrier. Camber strut to wheel carrier.
130
Cap Screw Mercedes-Benz
$22.00
Mercedes-Benz Spring link to left rear axle carrier. M12x1,5x107. Spring link to rear axle bracket left. Spring link to subframe, left.
130
Cap Screw Mercedes-Benz
Mercedes-Benz M12X1,5X110
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Spring link to rear axle bracket left. Spring link to rear axle carrier. Rear axle carrier left spring link screw.
155
Expansion Rivet Mercedes-Benz

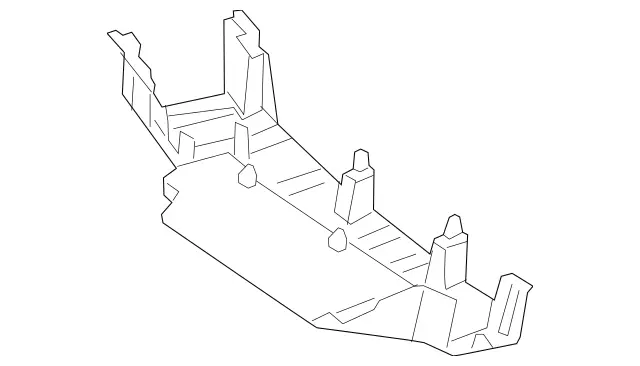

Mercedes-Benz Left trim to spring link
Diameter: 9,6mm. Trim mount to rear axle
Diameter: 9,6mm. Cover at left to spring control arm
diameter: 9,6mm. Left spring link trim mount
Diameter: 9,6mm. Expansion rivet, trim, spring link, left, rear axle
Diameter: 9,6mm. Attachment, trim to rear axle
diameter: 9,6mm. Left trim to thrust arm
Diameter: 9,6mm.
285
Self-Tapping Screw Mercedes-Benz
$7.25
Mercedes-Benz Left mounting console to frame. Longitudinal control arm to frame, left m12x1.5x39.5. Left trailing arm to body.
285
Self-Tapping Screw Mercedes-Benz
$4.00
Mercedes-Benz Left mounting console to frame. Longitudinal control arm to frame, left m12x1.5x39. Trailing arm to left and right frame.
330

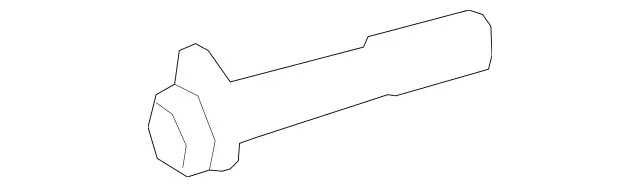

Eccentric Screw Mercedes-Benz
$12.50
Mercedes-Benz M12x1,5x86. Tie rod to rear axle carrier, left and right. Tie rod to subframe, left.
340
Window Mercedes-Benz
$0.30
Mercedes-Benz Tie rod to rear axle carrierDiameter: 12,1mmInside diameter: 12,1mmOutside diameter: 31mmMaterial thickness: 3mm. CAMBER STRUTS TO REAR SUBFRAMEDiameter: 12,1mmInside diameter: 12,1mmOutside diameter: 31mmMaterial thickness: 3mm. TIE ROD TO REAR SUBFRAMEDi ...
370
380
