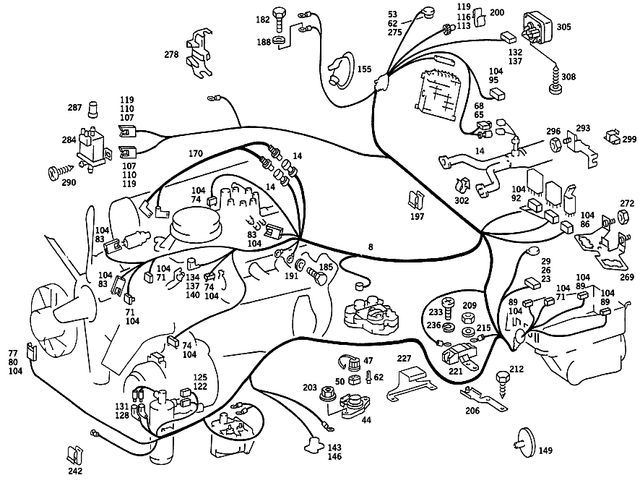

Engine Cable Harness for 1987 Mercedes-Benz 560SEC
No.
Part # / Description / Price
23
Plug Housing
Mercedes-Benz
Mercedes-Benz Inboard cable plug connection, 12-pole. Main cable harness plug connection. (plug housing),14-pole. Fourteenfold. Cockpit cable harness. From idle switch plug connection to idle switch. Blinker switch,14-pole. Inboard cable harness plug-connection. Tail lamp cable harness,14-pole.
29
Contact Pin Mercedes-Benz
MSRP $2.40
$2.40
Mercedes-Benz 4.0 MM. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 4.0Release tool: W220 589 01 99 52. TO 009 545 53 28/56 28. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: R ...
53
Receptacle Housing Mercedes-Benz
Mercedes-Benz Diode case to fuse box. 2-pin. Comfort switching. 2-pin. Comfort/sport change-over trimmer plug. 2-pin. Trimmer plug ezl. 2-pin. Diodes. 2-pin. Trimmer plug to 007 545 75 28. 2-pin.
62
Contact Socket Mercedes-Benz
MSRP $3.40
$3.40
Mercedes-Benz 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
68
Contact Socket Mercedes-Benz
MSRP $2.90
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
71
Electric Coupling Mercedes-Benz
MSRP $3.30
$3.30
Mercedes-Benz Belt locking retractor feed-in. Speed signal. 1-pin. Cockpit cable harness. 1-pin. From electrical compartment plugconnection to indicating instruments. 1-pin. Plug connection kl 87 ug. 1-pin. Temperature sensor refrigerant indicator. 1-pin. Temperature switch,16 degs.. 1-pin. Used without automatic air conditioner. 1-pin.
80
89
Receptacle Housing Mercedes-Benz
MSRP $8.75
$8.75
Mercedes-Benz Automatic transmission shift-pointincrease relay. 6-pin. Relay for "locking completed" feedback. 6-pin. Engine shut-off relay. 6-pin. Intake manifold heating relay. 6-pole. 6-pin. Relay. 6-pole to 126 820 40 17,56 15. 6-pin. Air blow-in relay. 6-pin. Seat adjuster relay. 6-pin.
110
Cap Mercedes-Benz
Mercedes-Benz Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
116
Housing Upper Part Mercedes-Benz
MSRP $2.70
$2.70
Mercedes-Benz To 008 545 20 28,011 545 10 28. Rear fuel pump cable harness plugconnection.
119
Contact Socket Mercedes-Benz
MSRP $3.40
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
131
Insulating Sleeve Mercedes-Benz
Mercedes-Benz To 000 546 83 40. To 000 546 79 40. To 000 546 583 40. Charge control. Electric cable to pressure switch. Low pressure switch.
132
Receptacle Housing Mercedes-Benz
Mercedes-Benz Adjustment to altitude. 3-pin. Transverse acceleration switch. 3-pin. Height control valve. 3-pin. Pressure switch. 3-pin. Pressure sensor. 3-pin. Potentiometer. 3-pin.
137
Contact Spring Mercedes-Benz
MSRP $3.60
$3.60
Mercedes-Benz Warm-up sender unit,cold start valve, air-flow sensor plate contact. 0.5-1.5mm2. TO 116 540 01 81,007 545 75 28. 0.5-1.5mm2. TO 116 540 01 81/007 545 35 28. 0.5-1.5mm2. S12. 0.5-1.5mm2. TO 002 545 64 26. 002 545 82 26. 0.5-1.5mm2. Adjustment to altitude to 007 545 7528, 116 540 0181. 0.5-1.5mm2.
140
Protective Cap Mercedes-Benz
Mercedes-Benz Warm-up sender unit plug. To a 116 540 01 81. Warm-up sender unit,cold start valve, air-flow sensor plate contact.
182
Hexagon Head Bolt Mercedes-Benz
MSRP $2.90
$2.90
Mercedes-Benz Engine hood upper catch to engine hood. Flap to hinge m 6x10.
200
Clamp Mercedes-Benz
Mercedes-Benz From front plug connection to fuel pump. 15 x 32 mm. Engine hood. 15 x 32 mm. Cable mounting. 15 x 32 mm. Piping to firewall. 15 X 32 MM. Cable harness to side part. 15 x 32 mm. Water drain, rear. 15 x 32 mm. On left side panel,rear. 15 x 32 mm.
203
Hexagon Nut Mercedes-Benz
MSRP $3.40
$3.40
Mercedes-Benz Nut
M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
233
Screw Mercedes-Benz
MSRP $1.20
$1.20
Mercedes-Benz Cd changer to bracket. Mounting at console. Control module mounting.
236
Spring Lock Washer Mercedes-Benz
MSRP $1.40
$1.40
Mercedes-Benz Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
275
287
Sieve Insert Mercedes-Benz
MSRP $4.60
$4.60
Mercedes-Benz Solenoid valve. To valve. Exhaustgas recirculation. Electric change-over valve.
302
