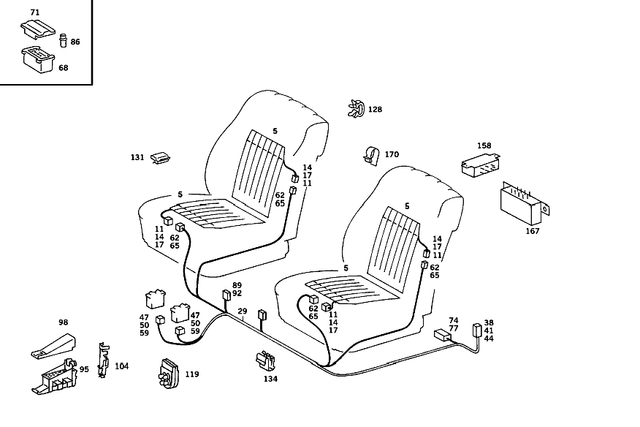

Seat Heating for 1987 Mercedes-Benz 560SEC
No.
Part # / Description / Price
5
5
Heating Pad
Mercedes-Benz
Mercedes-Benz Used with velours trim. With memory. Backrest. For use with seat adjuster with programming.
5
Heating Pad Mercedes-Benz
Mercedes-Benz Used with velours trim. With memory. Seat cushion. For use with seat adjuster with programming.
5
Heating Pad Mercedes-Benz
Mercedes-Benz Used with leather & amaretta trim. With memory. Backrest. For use with seat adjuster with programming.
11
Contact Pin Mercedes-Benz
MSRP $2.40
$2.40
Mercedes-Benz 4.0 MM. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 4.0Release tool: W220 589 01 99 52. TO 009 545 53 28/56 28. 4.0 MM2 RK4Leitungsquerschnitt Min/Max: 4,0mm2Oberflächenschutz PINs: AgELA: -Model 1: R ...
41
Cap Mercedes-Benz
Mercedes-Benz Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
47
Coupling, Mechanical Mercedes-Benz
MSRP $4.90
$4.90
Mercedes-Benz Compressor switch. Electric window regulator switch. Lower part. Seat heater switch. 6-pole. Circulating air switch. 4-pole. Level switch. 7-pole.
59
Contact Socket Mercedes-Benz
MSRP $3.40
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
65
74
Receptacle Housing Mercedes-Benz
Mercedes-Benz Burglary alarm system control unit. Automatic air conditioner control unit ;14-pole. Seat adjustment control unit. Seat heater relay. 14-pole. Seat heating control unit. Control unit. 14-pole tempomat.
77
89
Receptacle Housing Mercedes-Benz
Mercedes-Benz Outside temperature indicator. 5-pin. Feed-in. 5-pin. Multiway connector 5-polig. 5-pin. Plug connection,special equipment strip 5-fach. 5-pin. Sa plug socket. 5-pin.
92
Contact Socket Mercedes-Benz
MSRP $3.40
$3.40
Mercedes-Benz 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
95
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Seat heater feed-in. 21-pin
model 1: spt / jpt
model 2: 2.8
slots: 21. Rearview-mirror-memory/steeringcolumn-adjustment control unit 21-polig. 21-pin
model 1: spt / jpt
model 2: 2.8
slots: 21.
98
104
Contact Spring Mercedes-Benz
MSRP $3.50
$3.50
Mercedes-Benz Left exit lights. 0.5 mm2 jpt. To 220 545 17 28. 0.5 mm2 jpt. 0,5-1,0mm2. 0.5 mm2 jpt. Radio 0.5 -1.0 mm2. 0.5 mm2 jpt.
131
Clamp Mercedes-Benz
Mercedes-Benz Electric cable to front seat cushion. Control unit to bracket. Temperature sensor. From plug connection to wiper motor. Electric cable to seat cushion frame. Bracket to oil pan.
