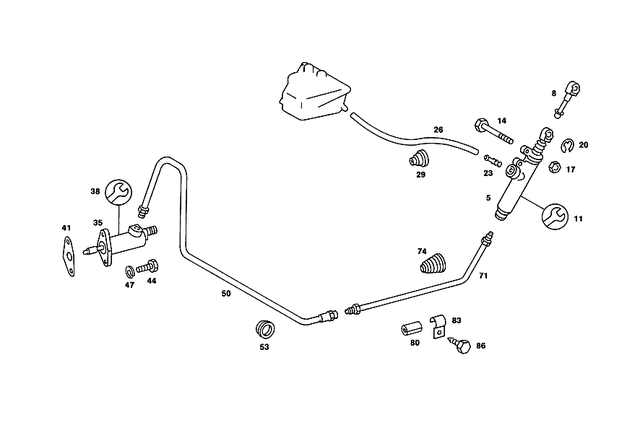

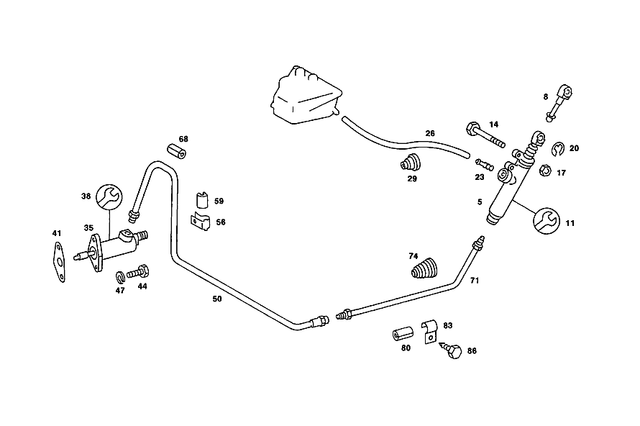

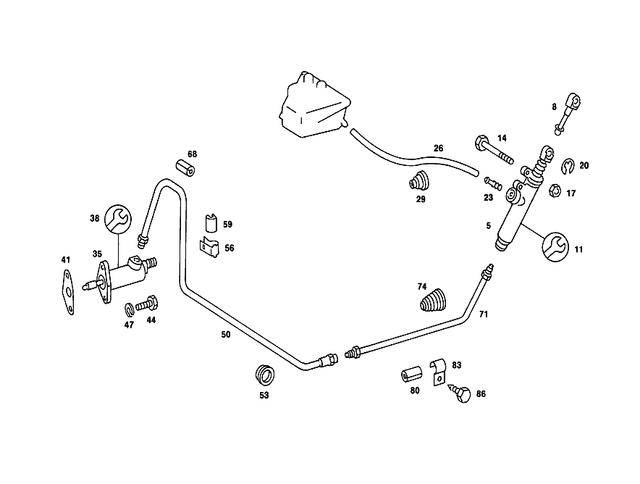

Pedal Assembly Hydraulics for 1989 Mercedes-Benz 190E
No.
Part # / Description / Price
14
Screw
Mercedes-Benz
$8.50
Mercedes-Benz CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKETDiameter: 6mmStrength / hardness class: 8.8Thread code letter: MThread pitch: 1mm. BRACKET TO ALTERNATOR SUPPORTDiameter: 6mmStrength / hardness class: 8.8Thread code letter: MThread pitch: 1mm. STEERING LOCK ...
17
Hexagon Nut Mercedes-Benz
$12.50
Mercedes-Benz Nut
Steering column jacket tube to body. Master cylinder to pedal assembly. Brake power regulator to bracket. Bracket to engine. Cable to ignition coil. Fuel lines under rear seat. Hydraulic unit to bracket. Wiper motor to fire wall.
26
Hose Mercedes-Benz
$11.00
Mercedes-Benz From reservoir to master cylinder. Reservoir,clutch master cylinder, clutch slave cylinder.
29
Sealing Boot Mercedes-Benz
Mercedes-Benz Pipe line thru fire wall. In firewall, for refilling hose. In firewall, for subsequent filling hose. Pipeline. Piping.
38
Repair Kit, Cl Slave Cylinder Mercedes-Benz
Mercedes-Benz Repair Kit, Cl. Slave Cyl
Slave cylinder to 0002958207. Kugelfischer,to 0002956307/8207. Slave cylinder to 000 295 82 07,201 290 03 11.
41
Flange Seal Mercedes-Benz
$3.40
Mercedes-Benz Slave cylinder to transmission case. Slave cylinder to bell housing.
44
Hexagon Head Bolt Mercedes-Benz
$2.40
Mercedes-Benz Screw
Shackle mounting. M8X30
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. At support. Instrument panel to left / right A-pillar and wind deflector M 8X30. Seat framework to backrest. Child's seat mounting. Child seat safety catch. Left and right outer guard plate to rear panel. Rear m8x30. Crossmember to a-pillar.
50
Piping Mercedes-Benz
Mercedes-Benz Clutch line. From clutch master cylinder to clutch slave cylinder. From clutch hose to slave cylinder used with five-speed transmission.
71
Line Mercedes-Benz
Mercedes-Benz From clutch master cylinder to clutch slave cylinder. From master cylinder to hydraulic line. Hydraulics unit connection "hz2" to master cylinder. Hydraulic unit to master brake cylinder. Hydraulics unit connection "hz1" to master cylinder.
74
Boot Mercedes-Benz
Mercedes-Benz Flexible shaft thru fire wall. Declutching-start/back-up-light switch used with asr. Windshield wiper motor connection. In firewall, for clutch line. Electric cable thru tunnel.
83
Clamp Mercedes-Benz
Mercedes-Benz Pipe line to fire wall. Pipe line to unit partition panel. Vacuum line to side member. Pipe line mounting.
86
Tapping Screw Mercedes-Benz
$6.75
Mercedes-Benz Instrument panel to cross member,top. 4,8x25
diameter: 4,8mm
thread code letter: r.
No.
Part # / Description / Price
17
Hexagon Nut Mercedes-Benz
$12.50
Mercedes-Benz Steering column jacket tube to body. Master cylinder to pedal assembly. Brake power regulator to bracket. Bracket to engine. Cable to ignition coil. Fuel lines under rear seat. Hydraulic unit to bracket. Wiper motor to fire wall.
44
Hexagon Head Bolt Mercedes-Benz
$2.40
Mercedes-Benz Shackle mounting. M8X30
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. At support. Instrument panel to left / right A-pillar and wind deflector M 8X30. Seat framework to backrest. Child's seat mounting. Child seat safety catch. Left and right outer guard plate to rear panel. Rear m8x30. Crossmember to a-pillar.
50
Piping Mercedes-Benz
$72.00
Mercedes-Benz From hydraulic line to clutch slave cylinder. From clutch hose to slave cylinder used with five-speed transmission. From clutch master cylinder to slave cylinder. Used with 5-speed transmission.
56
Holder Mercedes-Benz
Mercedes-Benz Pipe line to transmission case. Pipe line to bell housing. Used with five-speed transmission.
59
Bushing Mercedes-Benz
Mercedes-Benz Pipe line to transmission case. Separation point at clutch slave cylinder. Pedal assembly hydraulics. Mounting, clutch line (separation point to slave cylinder). Pipe line to bell housing used with five-speed transmission.
No.
Part # / Description / Price
14
Hexagon Head Bolt Mercedes-Benz
$4.20
Mercedes-Benz Screw
Bracket to pedal assembly. Steering lock to steering column jacket tube. Master cylinder to pedal assembly.
