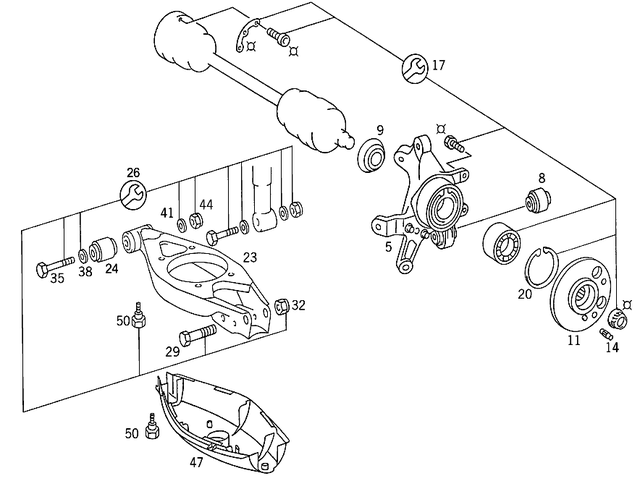

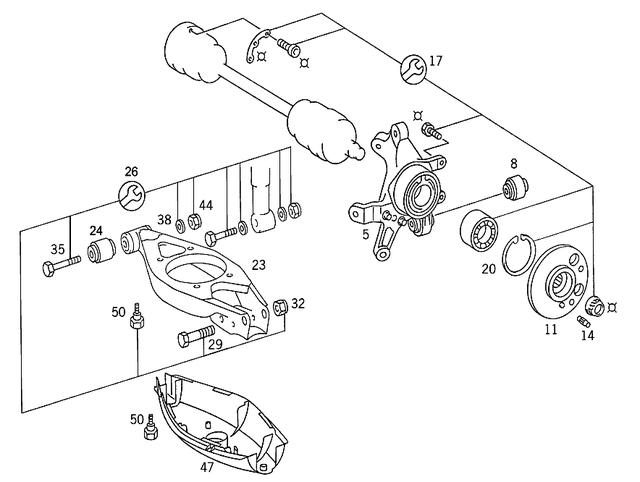

Rear Axle Mount for 1989 Mercedes-Benz 190E
No.
Part # / Description / Price
N/A
Cap Screw
Mercedes-Benz
$17.50
Mercedes-Benz M12x1.5x80. Camber struts to wheel carrier left. Thrust arm to wheel bearing to a 220 350 31 06. Camber struts to wheel bearing m 12x1,5x80.
N/A
Washer Mercedes-Benz
$4.00
Mercedes-Benz PIVOT PIN TO FRONT SUBFRAME
Diameter: 12mm
Strength / hardness class: 200 HV
Inside diameter: 13mm
Outside diameter: 20mm
Material thickness: 2mm. CLAMP TO BRACKET
Diameter: 12mm
Strength / hardness class: 200 HV
Inside diameter: 13mm
Outside diameter: 20mm
Material thickness: 2mm.
N/A
N/A
N/A
8
Supporting Joint Mercedes-Benz
$72.00
Mercedes-Benz Universal Joint
Left and right. Spring control arm to wheel bearing. Left suspension strut. Wheel carrier. Left spring link.
17
Collar Nut, Prop Shaft Mercedes-Benz
$7.25
Mercedes-Benz Repair Kit
Left. Axle shaft to rear axle shaft flange m24x1.5.
24
29
Flat Head Screw Mercedes-Benz
$17.50
Mercedes-Benz Screw
M14x1.5x90. Spring control arm to wheel bearing left. Spring control arm to wheel bearing m 14x1,5x75.
32
Hexagon Nut Mercedes-Benz
Mercedes-Benz Lower control arm to front subframe. Shock absorber to frame. Lower control arm to steering knuckle.
35
Screw Mercedes-Benz
$27.00
Mercedes-Benz Spring control arm to rear subframe. Axle housing to rear subframe,rear m 12 x 1,5 x 85.
44
Hexagon Nut Mercedes-Benz
$7.50
Mercedes-Benz Nut
Spring control arm to rear subframe. Upper transverse control arm to steering knuckle. Lower control arm to steering knuckle. Torsion bar to frame. Lower joint to control arm. Joint to steering knuckle. Shock absorber to lower control arm.
50
Screw Mercedes-Benz
$3.40
Mercedes-Benz Bolt
Protective plate to spring control arm. Covering to spring control arm. Trim mount to left spring link. Mounting, cover. Guard to left spring link. Cover on spring link and thrust arm. At left side member.
65
Nut Mercedes-Benz
Mercedes-Benz Steering shock absorber to front axle. Steering shock absorber to drag link and to frame.
65
Hexagon Nut Mercedes-Benz
$4.40
Mercedes-Benz M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Propeller shaft to transmission. Shock absorber to lower control arm m 10x1. Shock absorber to spring control arm m 10x1. Hydropneumatic spring leg to spring control arm m 10. Shock absorber to frame. Hydropneumatic spring leg to rear axle.
68
Cap Screw Mercedes-Benz
$6.25
Mercedes-Benz Screw
Thrust arm, camber strut and strut on rear subframe. M12x1.5x60. Camber struts to rear subframe. Thrust arm/camber strut/tension rod to rear-axle bracket. Thrust arm to rear subframe.
77
Screw Mercedes-Benz
Mercedes-Benz Bolt
Thrust arm to wheel bearing to a 140 350 54 06. Strut to wheel bearing m 12x1,5x77. Strut to wheel bearing m 12 x 1,5.
98
Rubber Bushing Mercedes-Benz
$26.00
Mercedes-Benz Repair size. With eccentric interior bushing. Tie rod to rear subframe. Left and right.
98
Rubber Bushing Mercedes-Benz
$142.00
Mercedes-Benz Repair size. Tie rod. With eccentric interior bushing left. For adjusting work only.
104
Parts Kit, Eccent Screw Mercedes-Benz
$27.50
Mercedes-Benz Parts Kit, Eccent. Screw
Tie rod to rear subframe. For adjusting work only.
131
No.
Part # / Description / Price
8
Supporting Joint Mercedes-Benz
$72.00
Mercedes-Benz Left and right. Spring control arm to wheel bearing. Left suspension strut. Wheel carrier. Left spring link.
35
Hexagon Head Bolt Mercedes-Benz
$13.00
Mercedes-Benz Screw
M12X1.5 X 90
Diameter: 12mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1,5mm. Spring control arm to rear subframe m 12x1,5x90. Spring control arm to rear subframe m12 x 1,5 x 90.
44
Hexagon Nut Mercedes-Benz
$2.50
Mercedes-Benz M12x1.5. Tie rod to rear subframe. Spring control arm to rear subframe m 12. Bearing cup to bearing bracket. Steering intermediate arm bearing. Drag link to steering arm. Strut to rear subframe.
