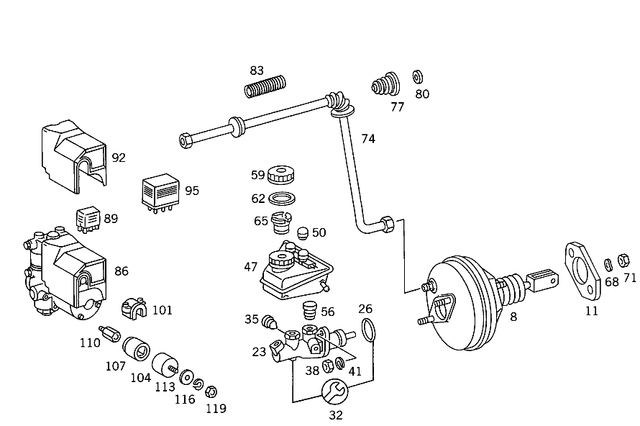

Brake Servo for 1991 Mercedes-Benz 300SE
No.
Part # / Description / Price
11
Gasket
Mercedes-Benz
MSRP $7.75
$7.75
Mercedes-Benz Brake booster assembly to fire wall to 0034302430/9230/0044300030/0830. Brake booster assembly to fire wall to 0034302430/0044300030/0730/0830. Brake booster assembly to fire wall to 004 430 00 30/08 30. Brake booster assembly to fire wall to 003 430 24 30/004 430 07 30/08 30. Between brake unit and firewall. Brake booster assembly to fire wall to 0034302430/0044300830/3130/3530. Brake booster assembly to fire wall to 003 430 92 30,004 430 22 30.
26
Sealing Ring Mercedes-Benz
MSRP $12.00
$12.00
Mercedes-Benz MASTER CYLINDER TO BRAKE BOOSTER. 44 X 2.6
Diameter: 49,6mm
Inside diameter: 44,4mm
Outside diameter: 49,6mm
Material thickness: 3,1mm.
35
Screw Plug Mercedes-Benz
MSRP $5.50
$5.50
Mercedes-Benz Screw
Brake master cylinder. To 124 320 00 58. Tank recess. S 2 ( m 10x1 ).
38
Hexagon Nut Mercedes-Benz
MSRP $3.00
$3.00
Mercedes-Benz Nut
M8-10
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
62
Sealing Ring Mercedes-Benz
MSRP $2.40
$2.40
Mercedes-Benz To 000 431 54 33. Up to chassis 8509058. Up to chassis 8507264.
65
Brake Master Cylinder Reservoir Strainer Mercedes-Benz
Mercedes-Benz Sieve
Coupe, convertible,. Expansion reservoir. Container. In compensation reservoir. Brake fluid reservoir. Teves. Expansion tank.
68
Spring Washer Mercedes-Benz
MSRP $1.60
$1.60
Mercedes-Benz Wiper arm with blade to wiper spindle. Drive rod to crank arm. Wiper arm to wiper shaft. Wiper arm on spindle.
89
89
Relay Mercedes-Benz
MSRP $62.00
$62.00
Mercedes-Benz (engine relay) to 001 431 51 12. Return flow pump abs (bosch). Asr/esp.
107
Rubber Bumper Mercedes-Benz
Mercedes-Benz Hydraulic unit to bracket. Brake power regulator to bracket. Fastening brake hose from hydraulics unit to brake unit.
110
Threaded Union Mercedes-Benz
Mercedes-Benz Hydraulic unit to bracket. Brake power regulator to bracket. Fastening brake hose from hydraulics unit to brake unit.
113
Washer Mercedes-Benz
Mercedes-Benz Bracket to instrument panel. Heater case to fire wall. Rear plate to lateral plate. Angle to battery frame. Instrument panel to cowl,bottom. Wiper linkage to motor drive rod.
119
Hexagon Nut Mercedes-Benz
MSRP $12.50
$12.50
Mercedes-Benz Steering column jacket tube to body. Master cylinder to pedal assembly. Brake power regulator to bracket. Bracket to engine. Cable to ignition coil. Fuel lines under rear seat. Hydraulic unit to bracket. Wiper motor to fire wall.
