Refrigerant Line Arrangement for 2009 Mercedes-Benz SL600
No.
Part # / Description / Price
15
O-Ring
Mercedes-Benz
$3.20
Mercedes-Benz Sealing Ring
Sprinter van. Type 1. Refrigerant line to mounting plate. 9.5X2.6
Diameter: 9,5mm
Inside diameter: 9,5mm
Outside diameter: 14,7mm
Material thickness: 2,6mm. Engine Mounted A/C. 9.5 x 2.5mm. All Required. 9.5 x 2.6mm.
62

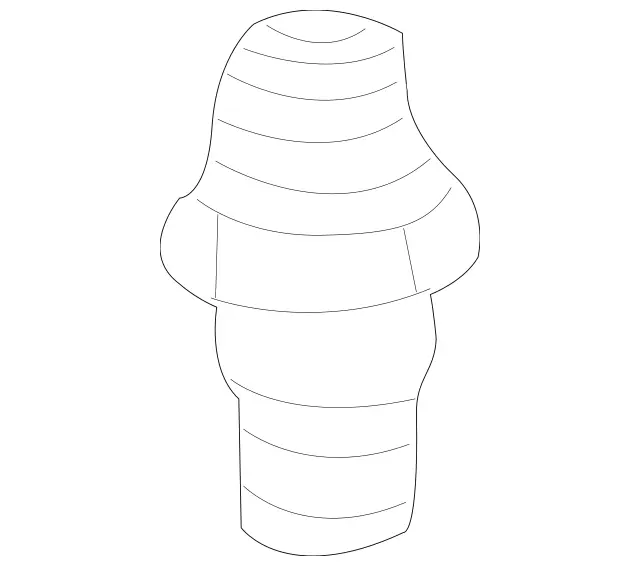

Discharge Line Valve Mercedes-Benz
$22.50
Mercedes-Benz Valve
Condenser. To 140 830 05 70. To 129 830 02 70,129 830 04 70. Filling valve. In pressure line.
64
Sealing Ring Mercedes-Benz
$3.70
Mercedes-Benz Heater. 7.5X2.0Strength / hardness class: EPDMInside diameter: 7,5mmOutside diameter: 11,5mmMaterial thickness: 2mm. HEATING. 7.5X2.0Strength / hardness class: EPDMInside diameter: 7,5mmOutside diameter: 11,5mmMaterial thickness: 2mm. MOUNTING PLATE TO DRI ...
73
Hexagon Nut Mercedes-Benz
$3.40
Mercedes-Benz M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
74
Hexalobular Screw Mercedes-Benz
$2.40
Mercedes-Benz Holder to left body. M6X20
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Expansion valve to separation point. Bracket to rear axle carrier lh. Bracket to body at left. Fuse box to holder. Link rod to spring link, left. Wiring harness mount. Cable junction to separation point.
80
Sealing Ring Mercedes-Benz
Mercedes-Benz Line to air conditioning system. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOutside diameter: 18mmMaterial thickness: 2mm. TUBING AT EXPANSION VALVE. 14X2 MMDiameter: 18mmStrength / hardness class: EPDMInside diameter: 14mmOut ...
87
Rear AC Line Guide Mercedes-Benz
$4.20
Mercedes-Benz Guide
Between line to compressor and line to expansion valve. Roof Mounted A/C. All Required. Front. Refrigerant line.
90
Mounting Clamp Mercedes-Benz
$9.50
Mercedes-Benz Clamp
Regeneration line to left front wheel arch. 10/15. Vent hose to activated charcoal filter. 10/15. Oil line to engine. 10/15.
105
107
A/C Line O-Ring Mercedes-Benz
$14.50
Mercedes-Benz Sealing Ring
SUCTION LINE 13.7X2.5 MM. 13.7X2.5
Diameter: 18,7mm
Strength / hardness class: EPDM
Inside diameter: 13,7mm
Outside diameter: 18,7mm
Material thickness: 2,5mm.
110
Sealing Ring Mercedes-Benz
$3.60
Mercedes-Benz Piping to refrigerant compressor. 23.8X2.4Diameter: 28,6mmStrength / hardness class: EPDMInside diameter: 23,8mmOutside diameter: 28,6mmMaterial thickness: 2,4mm. Refrigerant line. 23.8X2.4Diameter: 28,6mmStrength / hardness class: EPDMInside diameter: 23, ...
113
Valve Element Mercedes-Benz
$19.50
Mercedes-Benz Filling connection. Filler connection. High-pressure line. Filling valve. Suction line. Service connection, high pressure, air conditioning system. Valve element. To refrigerant line.
115
Pressure Sensor Mercedes-Benz
$159.00
Mercedes-Benz Refrigerant line. Reservoir. Sprinter van. Refrigerant condenser. Refrigerant pressure sensor. Roof. Metris. Rear. At condenser,bottom m10.
120
142
A/C Line O-Ring Mercedes-Benz
Mercedes-Benz Sealing Ring
AT CONDENSER. 10.6X2 MMDiameter: 10,6mmInside diameter: 10,6mmOutside diameter: 14,6mmMaterial thickness: 2mm. PRESSURE LINE TO EXPANSION VALVE. 10.6X2 MMDiameter: 10,6mmInside diameter: 10,6mmOutside diameter: 14,6mmMaterial thickness: 2mm. Refrigerant li ...
160
Feed-Through Grommet Mercedes-Benz
$7.25
Mercedes-Benz Mounting pipe line. Suction line to shock-absorber strut. Climate line attachment. Refrigerant line to wheelhouse. Piping mount. Refrigerant line to wheel well. Mounting, refrigerant line. Line to crossmember.
170
Snap Fastener Mercedes-Benz
Mercedes-Benz Mounting pipe line. Suction line to shock-absorber strut. Climate line attachment. Piping mount. At solenoid valve. Mounting solenoid valve.
900
Receptacle Housing Mercedes-Benz
$5.75
Mercedes-Benz 4-PIN MQS
Model 1: MQS
Slots: 4
Release tool: W220 589 01 99 60.
