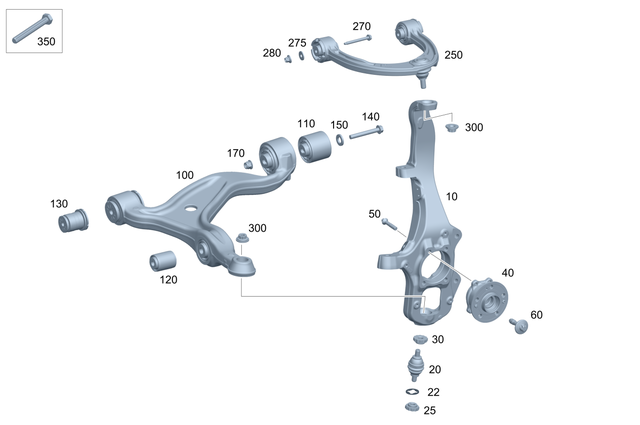

Steering Knuckle and Control Arm for 2021 Mercedes-Benz GLE580
No.
Part # / Description / Price
25
Bihexagonal Nut W Flange
Mercedes-Benz
$10.00
Mercedes-Benz Supporting joint to left wheel carrier. Supporting joint to steering knuckle left. Spring link to steering knuckle, left. Spring control arm to steering knuckle, left.
50
Hexalobular Head Screw Mercedes-Benz
$6.50
Mercedes-Benz M12X57,5
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. To left steering knuckle, front axle. Wheel bearing left rear. Drive shaft to front wheel hub, left. Wheel bearing to steering knuckle at left M12X57,5.
60
Hexalobular Head Screw Mercedes-Benz
$8.00
Mercedes-Benz Rear axle shaft to left and right wheel flange. M16X1.5X60
Diameter: 16mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Drive shaft to front wheel hub, left. Left side shaft, outboard. Propeller shaft to front wheel hub, left. Rear axle shaft to hub. Drive shaft to left and right rear wheel hub.
110
Transv Control Arm Bearing Mercedes-Benz
$40.00
Mercedes-Benz Transv. Ctrl. Arm Bearing
Left transverse control arm.
130
Transv Control Arm Bearing Mercedes-Benz
$49.50
Mercedes-Benz Transv. Ctrl. Arm Bearing
Left transverse control arm.
140
Hexagon Head Bolt Mercedes-Benz
$22.50
Mercedes-Benz Left transverse control arm. M14X1,5X110
Diameter: 14mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Suspension strut to left and right spring link. Trailing arm to frame, upper left and right. 2500. Shock absorber to lower control arm. Spring control arm to wheel bearing.
150
Window Mercedes-Benz
$12.50
Mercedes-Benz Camber adjustment. Lower control arm. Rear axle carrier to rear frame floor assembly.
270
Hex Head Screw W Flange Mercedes-Benz
$8.00
Mercedes-Benz Hex. Head Screw W Flange
Upper left transverse control arm to body.
275
Spacer Disk Mercedes-Benz
$9.75
Mercedes-Benz Torsion bar linkage to steering knuckle, left and right. 10,5x28. Rod to spring control arm. 10,5X28. Upper left transverse control arm to body. 10,5X28. Locking clamp to rear lid. 10,5x28. Torsion bar linkage to wheel carrier. 10,5X28.
300
Nut-And-Washer Assembly Mercedes-Benz
Mercedes-Benz M14x1,5. Transverse cont. Arm left to steering knuckle. Tie rod to steering knuckle.
