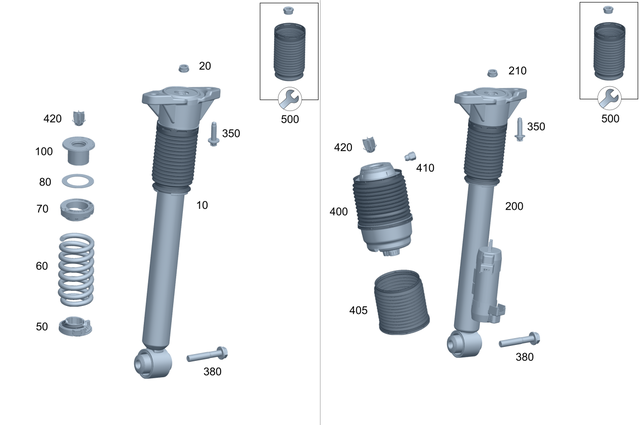

Spring Strut and Spring Strut Mounting Rear for 2021 Mercedes-Benz GLE580
No.
Part # / Description / Price
20
Hexagon Nut
Mercedes-Benz
$9.50
Mercedes-Benz Bolted conn. Support bearing with piston rod. M10X1
Diameter: 10mm
Strength / hardness class: 05
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Support bushing at damper. Rear left and right. Damper to support bushing. Shock absorber to bearing.
60
60
60
60
60
350
Hexalobular Screw Mercedes-Benz
$5.75
Mercedes-Benz Shock absorber to body. M12X45
Diameter: 12mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1,5mm. Battery carrier. Crossmember to frame.
380
Hexagon Head Screw Mercedes-Benz
$14.50
Mercedes-Benz Shock absorber to transverse control arm, left and right. M16x1.5x95.
400
410
Connection Fitting Mercedes-Benz
$9.00
Mercedes-Benz Control unit. Compressed air line. To susp. Strut left and right front. To valve block 4 MM. Air spring, left and right. Left and right air suspension strut. Air suspension strut lh & rh.
705
Cable Strap Mercedes-Benz
Mercedes-Benz Gas line mount. 4,6X200 MM
Material thickness: 1,3mm. Line mounting. 4,6X200 MM
Material thickness: 1,3mm. For sheet thickness: 1-3 mm. 4,6x200 mm
material thickness: 1,3mm. Hose line mount. 4,6X200 MM
Material thickness: 1,3mm.
710
Hexalobular Screw Mercedes-Benz
$2.90
Mercedes-Benz COVER AT SPARE WHEEL RECESS
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. GUIDE VANE TO TIE ROD LH
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Holder mount
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
