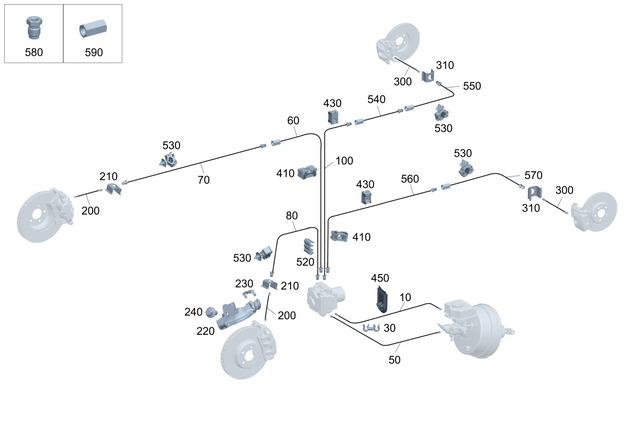

Brake Lines for 2025 Mercedes-Benz G580
No.
Part # / Description / Price
30
Clamp
Mercedes-Benz
$2.20
Mercedes-Benz Bleed line mount. 2 X 8-9 MM. Bleed lines. 2 X 8-9 MM. Line holder. 2 x 8-9 mm. Hose. 2 x 8-9 mm. Purge line to ac line. 2 x 8-9 mm. Brake line to brake line. 2 X 8-9 MM.
200
210
Retaining Spring Mercedes-Benz
$1.70
Mercedes-Benz Brake hose mounting. Between master cylinder,front axle and bracket,frame. Rear axle. Front left. Brake hose to bracket. Line connections. Bracket, brake line/brake hose. Brake line to brake hose.
230
Fastening Clip Mercedes-Benz
$1.90
Mercedes-Benz Brake hose to bracket. Holder to torsion bar, left. Brake hose to holder.
240
Hexalobular Screw Mercedes-Benz
$2.90
Mercedes-Benz COVER AT SPARE WHEEL RECESS
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. GUIDE VANE TO TIE ROD LH
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Holder mount
Diameter: 6mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm.
300
410
Line Fastener Mercedes-Benz
$2.70
Mercedes-Benz Brake line, rear wheels to crossmember. For rear wheel brake line to main floor. Brake line to partition. Rear wheel brake line on crossmember. Brake line mount to right rear-end floor. Brake line to frame and strut.
430
Line Fastener Mercedes-Benz
Mercedes-Benz Brake line mount. Brake lines, rear wheel to crossmember. Right front brake line to partition. Brake line to rear-end floor. Brake line to frame. Rear wheel brake line on crossmember. Brake line to left crossmember. Brake line to cross member over rear axle.
540
Brake Line Mercedes-Benz
$167.00
Mercedes-Benz Repair line from hydraulic unit to left front wheel. 5000 MM. Repair line from hydraulic unit to front wheel at right. 5000 mm. Master cylinder to hydraulic unit connection "hz1". 5000 mm. Brake line towards front, left. 5000 MM. Master cylinder connection "v" to hydraulic unit connection "v". 5000 mm. Connecting point to connecting point. 5000 MM.
590
Hexagon Spacer Element Mercedes-Benz
$7.25
Mercedes-Benz Connection. M10. Between hydraulic unit lines and left/right rear axle lines. Brake line. Coupling piece to left rear wheel. Vom ueberg.st.2 zum vorderrad links. Adapter. Between the lines.
