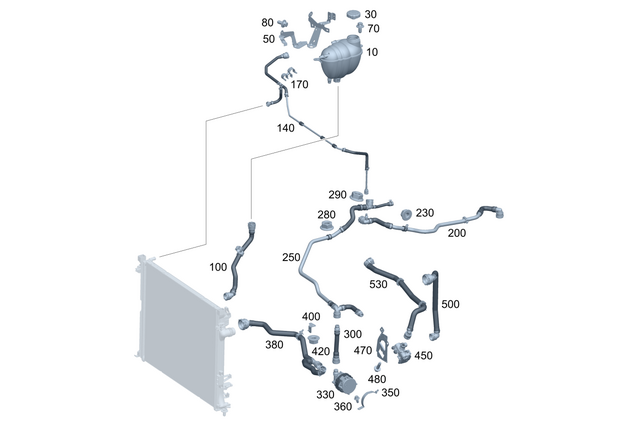

High-Temperature Cooling Circuit for 2025 Mercedes-Benz G580

Closing Cap

Expansion tank cap. Sprinter van. 3.0L. 2.0L - gas. Metris. 2021-22. Location-Reservoir. 2.0L - diesel om654 2023-25 primary.

Rear lid to hinge lever. Drive to rear pillar. Pipe line to shock absorber leg reinforcement. Strut to front cross member. Bracket to car floor. Cooling pipe to front cross member. Engine hood upper catch to engine hood. Partition panel. Strut to stiffening,front central.

Expansion reservoir to cooler and connecting point.

Connecting point to connecting point.

Connecting point to connecting point.

Coolant pump, electric.

Cooler to coolant pump and regulation valve.

Coolant. At bracket. Cooling.

Hexalobular Screw

6 x 16mm.

Regulation valve to coolant pump.

Regulation valve to heat exchanger.

Coolant hose.

Heater to heat exchanger.

Coolant pump to heater.

Coolant pump.

Coolant pump to purge valve and separation point.

Separation point to voltage converter.

Axle drive module on front axle to separation point.

To vent line. Wiring harness mount. Oil line. To coolant line.

Right.

Cover to left main floor. Mount, wheel arch liner, left. Wheel arch liner to bodyshell, front axle, front left. Cover to left rear-end floor. Rear holder mount.

Separation point to axle drive module on rear axle.

Coolant pump.

Coolant pump to connecting point.

Coolant pump to connecting point.

Connecting point to battery charger.

Connecting point to battery charger.

Connecting point to battery charger.
