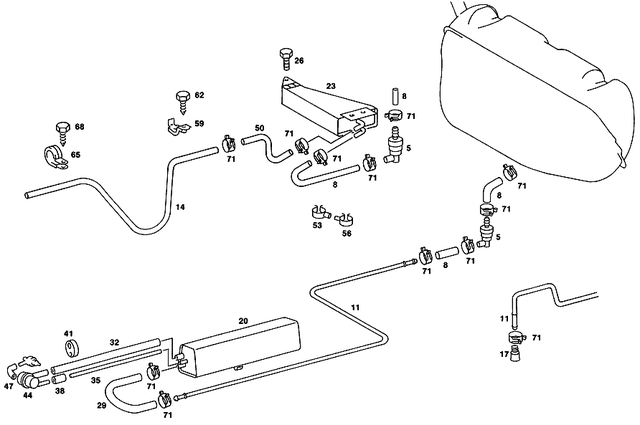

Closed Fuel-Evaporation-Control System for 1989 Mercedes-Benz 560SEL
No.
Part # / Description / Price
8
Hose
Mercedes-Benz
$32.50
Mercedes-Benz 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
32
Hose Mercedes-Benz
$10.50
Mercedes-Benz See engine standard version,group: 07. See engine standard version,group: 14. From boot to regeneration valve. Distributor to regeneration valve,left.
32
Hose Mercedes-Benz
Mercedes-Benz Breather line to tank vent pipe 120 mm. Ventilation. (vent line) from activated charcoal filter to boot 590 mm. 50mm. Breather line to tank breather pipe, 80 mm. Rear breather line to vent valve 190 mm. (vent line) from activated charcoal filter to boot 630 mm. From activated charcoal filter to breather line 210 mm. From activated charcoal filter to breather line 250 mm. Return 240 mm.
71
Spring Hose Clamp Mercedes-Benz
$4.00
Mercedes-Benz Between combination valve and breather pipe. Regeneration valve. Return hose to return line. From fuel tank to breather valve.
No.
Part # / Description / Price
26
Hexagon Head Screw Mercedes-Benz
$0.70
Mercedes-Benz Hex. Head Tapping Screw
M5x10.5. At blower;temperature sensor ventilation. Bracket to fire wall. Heat shield mounting. Control unit. Screening plates. Main floor,front right. Return line to partition panel.
50
Hose Mercedes-Benz
$24.50
Mercedes-Benz Activated charcoal filter for purge line. 15,3X3MM. Hose to valve 55mm. 15,3x3mm. Feed and return lines, breathing 55mm. 15,3x3mm. Return line to fuel filter 200mm. 15,3x3mm. Vent pipe fuel tank to t-fitting or vent valve 50mm. 15,3x3mm. Vent line 45 mm. 15,3x3mm. Purge line to check valve. 15,3x3mm. From activated charcoal filter to regeneration line. 15,3x3mm.
56
Jaw Clamp Mercedes-Benz
$8.00
Mercedes-Benz Clamp
At motor. 14-16 mm. Left rear brake cable. 14-16 mm. Line to line. 14-16 MM. Oil line connection. 14-16 mm.
59
Clamp Mercedes-Benz
Mercedes-Benz Brake line to fire wall. Right front brake line to left top connection support. Fuel lines to vehicle floor. Main cable harness to fire wall. Brake line to cross member. Breather hose to rear axle cross member. Brake line to side member. Fuel line to side member. Fuel lines on floor under rear seat.
62
Tapping Screw Mercedes-Benz
$1.70
Mercedes-Benz Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
65
Mounting Clamp Mercedes-Benz
$9.50
Mercedes-Benz Clamp
Regeneration line to left front wheel arch. 10/15. Vent hose to activated charcoal filter. 10/15. Oil line to engine. 10/15.
71
Spring Hose Clamp Mercedes-Benz
$3.00
Mercedes-Benz Hose to fuel tank. Suction hose to induction line. Feed and return lines, breathing. From fuel tank to breather valve. (vent line) from activated charcoal filter to boot. Vent pipe fuel tank to t-fitting or vent valve. Vent hose to activated charcoal filter.
