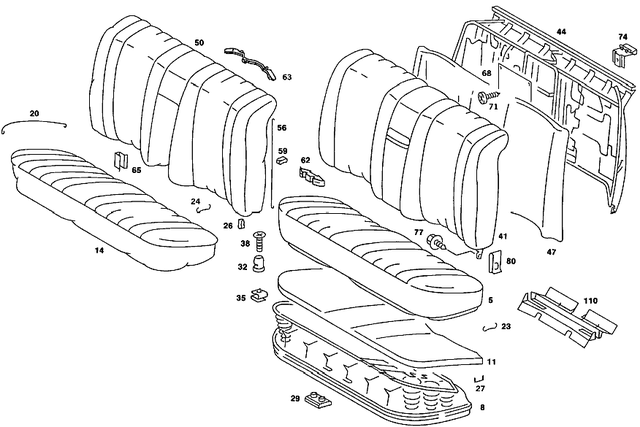

Rear Seat Cushion, Rear Backrest for 1989 Mercedes-Benz 560SEL
No.
Part # / Description / Price
23
Clamp
Mercedes-Benz
$2.40
Mercedes-Benz Cover to pad. Used with imitation leather trim. Electric cable to front seat cushion. For support at spring core. Pad to spring core;used with fabric trim. (pads to spring cores).
26
Clamp Mercedes-Benz
Mercedes-Benz Used with leather trim. Seat cover mounting,transverse. Seat cover mounting,longitudinal.
26
Clamp Mercedes-Benz
Mercedes-Benz Seat cover mounting,transverse. Used with leather trim. Pad to spring core. Alongside stitching of cover. With fabric trim.
26
Bracket Mercedes-Benz
Mercedes-Benz Seat cover mounting,longitudinal. 370 mm. Cover stitching. 370 mm. Seat cover mounting,transverse used with soft leather trim. 370 mm. Left seat. 370 MM. Longitudinal staple side, left. 370 mm.
26
Clamp Mercedes-Benz
Mercedes-Benz Pad to spring core. Used with soft leather trim. Cover to backrest. Cover to pad.
62
Tensioning Bracket Mercedes-Benz
Mercedes-Benz Seat cover mounting,transverse. Used with leather trim. Seat cover mounting,longitudinal. Cover to backrest. Seat cover mounting,top.
71
Tapping Screw Mercedes-Benz
$2.50
Mercedes-Benz DOOR TRIM MOUNTING LEFT. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. MOUNTING OF CARRIER. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. Window divider mount, left. 4.2 X 9.5 MMDiameter: 4,2mmThread code letter: R. ANTENNA SPLITTER. 4.2 X 9.5 MMDi ...
92
Spring Washer Mercedes-Benz
$1.50
Mercedes-Benz Wiper arm with blade to wiper spindle. Drive rod to crank arm. Wiper arm to wiper shaft. Wiper arm on spindle.
101
Mechanical Securing Mercedes-Benz
Mercedes-Benz Handle to safety hook. Gas-operated strut. Front hood release cable, to front module. Rear lid hinge and folding top case hinge to body. Hinge to engine hood. Steering coupling to steering shaft and to steering. Gas pressure spring to damper strut console.
104
Screw Mercedes-Benz
Mercedes-Benz Ignition coil to left wheel arch panel. Hinge lever to engine hood. Transistorized ignition switchgear to wheelhouse panel. Ignition coil to wheelhouse panel. Ignition coil to battery frame. Electronic ignition system trigger box to wheelhouse panel. Bracket to wheel arch panel.
134
Socket Nut Mercedes-Benz
Mercedes-Benz Front seat to cross member. Rear seat cushion to floor. Front seat mounting. Bracket to rear wheelhouse. Befestigung fahrersitz. Seat adjustment guide rail. Strut to central pillar,rear.
137
Hex Head Screw W Flange Mercedes-Benz
$32.00
Mercedes-Benz Bolt
Front seat to cross member. Front seat to rear console. Armrest to backrest. Front seat mounting. Gearing to seat height adjustment. Seat adjustment to floor. Befestigung fahrersitz. Seat adjustment guide rail. Strut to central pillar,rear,and to rear pillar. Guide rail to front console.
152
Screw Mercedes-Benz
Mercedes-Benz Air conditioner housing to mounting console
Diameter: 6mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. CLAMP TO BRACKET
Diameter: 6mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. AIR CONDITIONER CASE TO CONSOLE
Diameter: 6mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm.
155
Nut Mercedes-Benz
Mercedes-Benz Pipe line to shock absorber leg reinforcement. Pipe line to valve. Hinge lever to engine hood.
