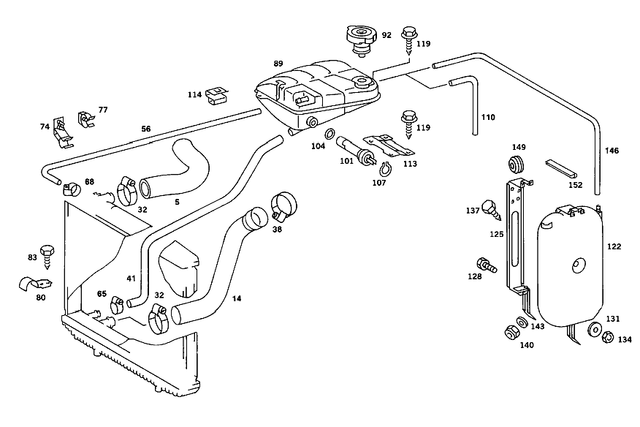

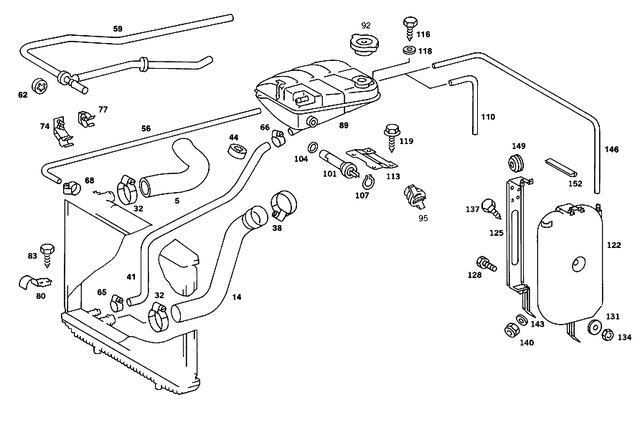

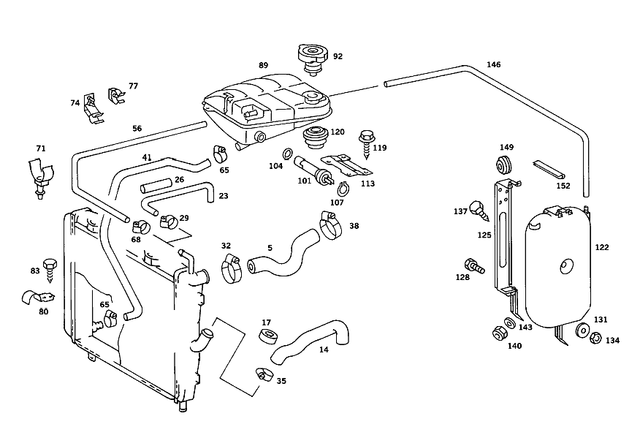

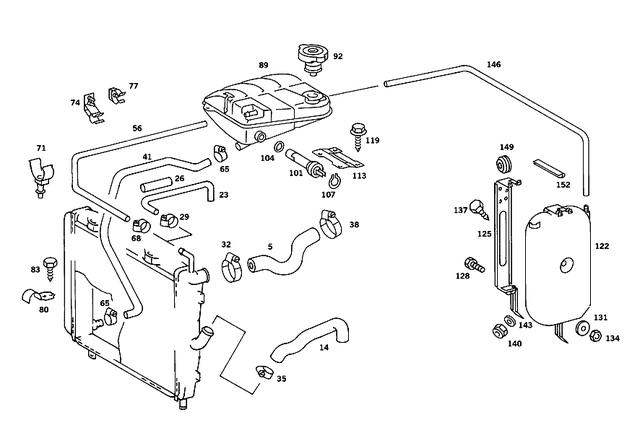

Expansion Tank, Mounting and Hoses for 1989 Mercedes-Benz 560SEL
No.
Part # / Description / Price
32
Hose Clamp
Mercedes-Benz
Mercedes-Benz Electric change-over valve. 40-50 mm. Cooling water hose to radiator. 40-50 mm. Cooling water pipe to side member. 40-50 mm. Cooling water hose to thermostat 40 - 50mm. 40-50 mm. Hose to radiator,thermostat,and water pump. 40-50 mm. From body to blower. 40-50 mm.
38
Hose Clamp Mercedes-Benz
$3.50
Mercedes-Benz Clamp
GROUND CABLE TO SIDE MEMBER. 45-55 MMInside diameter: 45mmOutside diameter: 55mmMaterial thickness: 1mmWidth across flats: 7. BETWEEN ENGINE, HOUSING AND RADIATOR. 45-55 MMInside diameter: 45mmOutside diameter: 55mmMaterial thickness: 1mmWidth across flats ...
56
Hose Mercedes-Benz
$50.00
Mercedes-Benz FROM EXPANSION TANK TO ENGINE 1200 MM. 8X15 MMInside diameter: 8mmOutside diameter: 15mmMaterial thickness: 3,5mm. FROM EXPANSION TANK TO ENGINE 1575 MM. 8X15 MMInside diameter: 8mmOutside diameter: 15mmMaterial thickness: 3,5mm. FROM EXPANSION TANK TO RAD ...
71
80
Fastening Clamp Mercedes-Benz
Mercedes-Benz Bracket to wheel arch panel. Compressor-to-condenser refrigerant line to side member. Main cable harness to left cross member at instrument panel. From expansion tank to radiator.
83
Hexagon Head Screw Mercedes-Benz
$0.70
Mercedes-Benz M5x10.5. At blower;temperature sensor ventilation. Bracket to fire wall. Heat shield mounting. Control unit. Screening plates. Main floor,front right. Return line to partition panel.
107
Retaining Ring Mercedes-Benz
$9.75
Mercedes-Benz TO 1265001549. 30X1.5X7
Inside diameter: 30mm
Material thickness: 1,5mm. DRIVE SHAFT. 30X1.5X7
Inside diameter: 30mm
Material thickness: 1,5mm. TO 126 500 15 49. 30X1.5X7
Inside diameter: 30mm
Material thickness: 1,5mm.
113
119
128
Screw Mercedes-Benz
Mercedes-Benz Control unit to bracket. Kevlar fibre plates on door outer panel. Bracket to seat height adjustment. Ground connection to bracket.
131
146
Hose Mercedes-Benz
$32.50
Mercedes-Benz 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
149
Feed-Through Grommet Mercedes-Benz
$4.40
Mercedes-Benz From expansion tank to additional tank. Right. For molded hose. Line to rear floor center. Fastening, cable, rear center. High pressure expansion hose & connecting hose to side member. Oelverbindungsschlauch durch traeger oelvorratsbehaelter.
No.
Part # / Description / Price
65
Hose Clamp W Worm Drive Mercedes-Benz
$7.00
Mercedes-Benz Cooling water hose to radiator. 23-30 mm. Fuel hose. 23-30 mm. From oil tank to pump. 23-30 mm. Hose to water valve 20-30 mm. 23-30 mm. Filling hose to radiator. 23-30 mm. From engine to heat exchanger l 23-30. 23-30 mm.
146
Hose Mercedes-Benz
$32.50
Mercedes-Benz 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
152
Edge Guard Mercedes-Benz
Mercedes-Benz Protection against scoring 25 mm. 330mm. At bracket. Bracket to c-pillar. At cushion frame. From radiator to expansion tank. Electric cable to seat cushion and to height adjustment 170mm. 100 mm.
No.
Part # / Description / Price
95
Grommet Mercedes-Benz
$4.70
Mercedes-Benz Parts Kit, Cap
Parts kit to 1245000649. Parts kit to 126 500 15 49. Parts kit to 1265001549.
110
Hose Mercedes-Benz
$7.50
Mercedes-Benz 810 mm. 6,5x3,5 mm. Breather 300 mm. 6,5x3,5 mm. De-aeration line to expansion tank. 6,5x3,5 mm. Expansion tank 300 mm. 6,5x3,5 mm.
No.
Part # / Description / Price
65
Clamp Mercedes-Benz
Mercedes-Benz Cooling water hose to expansion tank. 25-40mm. Filling hose to expansion tank. 25-40mm. From expansion tank to radiator. 25-40mm.
65
Hose Clamp W Worm Drive Mercedes-Benz
$7.00
Mercedes-Benz Clamp
Cooling water hose to radiator. 23-30 mm. Fuel hose. 23-30 mm. From oil tank to pump. 23-30 mm. Hose to water valve 20-30 mm. 23-30 mm. Filling hose to radiator. 23-30 mm. From engine to heat exchanger l 23-30. 23-30 mm.
