Addit. Cable Harness for Air Condit. , Auto. Air Condit. , Heatg. Control Lightg for 1988 Mercedes-Benz 560SL

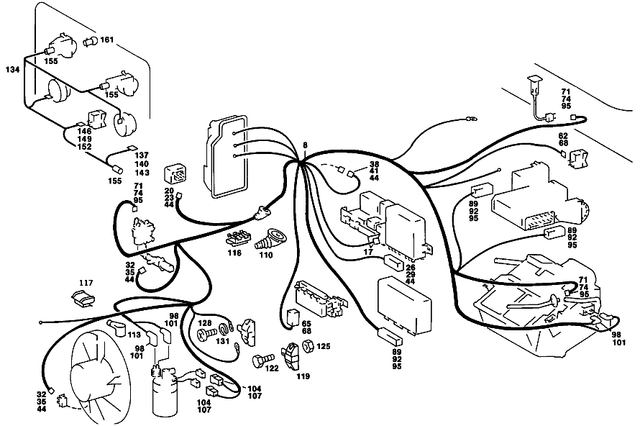

Diagram 1 1. Electrical Wiring Harness Diagram 2 2. Wiring Harness
Addit. Cable Harness for Air Condit. , Auto. Air Condit. , Heatg. Control Lightg for 1988 Mercedes-Benz 560SL #0
110
116
117
134
146
149
152
155
161
17
20
23
26
29
38
41
62
65
68
71
74
8
89
92
95
No.
Part # / Description / Price
8
1075400510 - Electrical Equipment and Instruments: Electrical Wiring Harness for Mercedes-Benz Image image
Electrical Wiring Harness
107-540-05-10
Mercedes-Benz Mercedes-Benz

Automatic air conditioner.

View Details
17
1265450128 - Electrical Equipment and Instruments: Receptacle Housing for Mercedes-Benz Image image
Receptacle Housing
MSRP $8.75
$8.75
126-545-01-28
Mercedes-Benz Mercedes-Benz

Automatic transmission shift-pointincrease relay. 6-pin. Relay for "locking completed" feedback. 6-pin. Engine shut-off relay. 6-pin. Intake manifold heating relay. 6-pole. 6-pin. Relay. 6-pole to 126 820 40 17,56 15. 6-pin. Air blow-in relay. 6-pin. Seat adjuster relay. 6-pin.

20
65458128 - Electrical Equipment and Instruments: Coupling, Mechanical for Mercedes-Benz Image image
Coupling, Mechanical
006-545-81-28
Mercedes-Benz Mercedes-Benz

View Details
26
95452628 - Electrical Equipment and Instruments: Coupling, Mechanical for Mercedes-Benz Image image
Coupling, Mechanical
009-545-26-28
Mercedes-Benz Mercedes-Benz

Hydraulic unit. 12-pin. 10-pole. 12-pin. Test instrument connection. 12-pole. 12-pin. Plug, 12-pin. 12-pin. Switchgear, 12-pole. 12-pin.

View Details
29
95452528 - Electrical Equipment and Instruments: Cap for Mercedes-Benz Image image
Cap
009-545-25-28
Mercedes-Benz Mercedes-Benz

To 008 545 26 28. Hydraulic unit to 009 545 26 28.

View Details
38
155454928 - Electrical Equipment and Instruments: Pin Bushing Housing for Mercedes-Benz Image image
Pin Bushing Housing
015-545-49-28
Mercedes-Benz Mercedes-Benz

View Details
41
95452128 - Electrical Equipment and Instruments: Cap for Mercedes-Benz Image image
Cap
MSRP $5.00
$5.00
009-545-21-28
Mercedes-Benz Mercedes-Benz

Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).

62
135458528 - Electrical Equipment and Instruments: Receptacle Housing for Mercedes-Benz Image image
Receptacle Housing
013-545-85-28
Mercedes-Benz Mercedes-Benz

3-pin.

View Details
65
2015453928 - Electrical Equipment and Instruments: Receptacle Housing for Mercedes-Benz Image image
Receptacle Housing
201-545-39-28
Mercedes-Benz Mercedes-Benz

Valve strip;8-pole. Right headlamp central electrical system, 8-pole.

View Details
68
35450626 - Electrical Equipment and Instruments: Contact Socket for Mercedes-Benz Image image
Contact Socket
MSRP $2.90
$2.90
003-545-06-26
Mercedes-Benz Mercedes-Benz

4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...

71
105451028 - Electrical Equipment and Instruments: Housing Lower Part for Mercedes-Benz Image image
Housing Lower Part
MSRP $3.20
$3.20
010-545-10-28
Mercedes-Benz Mercedes-Benz

Buzzer contact;2-pole. 2-pin. Central locking system. 2-pin. Evaporator temperature sensor. 2-pin. Solenoid valve,bipolar. 2-pin. Temperature sensor;2-pole. 2-pin. Heating water valve,temperature sensor,electro-magnet valves;bipolar. 2-pin.

74
105450928 - Electrical Equipment and Instruments: Coupling, Mechanical for Mercedes-Benz Image image
Coupling, Mechanical
MSRP $2.40
$2.40
010-545-09-28
Mercedes-Benz Mercedes-Benz

To 010 545 10 28. Upper part. To 008 545 37 28. Buzzer contact.

89
105450028 - Electrical Equipment and Instruments: Receptacle Housing for Mercedes-Benz Image image
Receptacle Housing
010-545-00-28
Mercedes-Benz Mercedes-Benz

View Details
92
105450128 - Electrical Equipment and Instruments: Cap for Mercedes-Benz Image image
Cap
010-545-01-28
Mercedes-Benz Mercedes-Benz

To 010 545 00 28. To 010 545 01 28.

View Details
95
25459926 - Electrical Equipment and Instruments: Contact Socket for Mercedes-Benz Image image
Contact Socket
MSRP $3.40
$3.40
002-545-99-26
Mercedes-Benz Mercedes-Benz

2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...

116
29884878 - Electrical Equipment and Instruments: Clamp for Mercedes-Benz Image image
Clamp
002-988-48-78
Mercedes-Benz Mercedes-Benz

View Details
117
949881500 - Electrical Equipment and Instruments: Clamp for Mercedes-Benz Image image
Clamp
094-988-15-00
Mercedes-Benz Mercedes-Benz

View Details
134
1078202317 - Electrical Equipment and Instruments: Wiring Harness for Mercedes-Benz Image image
Wiring Harness
107-820-23-17
Mercedes-Benz Mercedes-Benz

Heating control lighting. Lighting of heating operation unit.

View Details
134
1238201904 - Electrical Equipment and Instruments: Wiring Harness for Mercedes-Benz Image image
Wiring Harness
123-820-19-04
Mercedes-Benz Mercedes-Benz

Lighting of operating unit.

View Details
152
45456628 - Electrical Equipment and Instruments: Contact Socket for Mercedes-Benz Image image
Contact Socket
004-545-66-28
Mercedes-Benz Mercedes-Benz

To 009 545 83 28. 4 mm. 3,3 mm. To 009 545 94 28.

View Details
155
8250382 - Electrical Equipment and Instruments: Socket for Mercedes-Benz Image image
Socket
000-825-03-82
Mercedes-Benz Mercedes-Benz

Air nozzle lighting. Lighting of rotary light switch escutcheon. Cigar lighter. Ashtray lighting. Lighting of gear indicator. Heating control lighting.

View Details
161
7260101223064 - Electrical Equipment and Instruments: Bulb for Mercedes-Benz Image image
Bulb
MSRP $4.60
$4.60
072601-012230-64
Mercedes-Benz Mercedes-Benz

Charge control lamp used for second alternator w5/1,2-12v 1,2w. 12v-1.2wmodel 1: w5/1,2wvolt: 12vwatt: 1,2w. Cigar lighter. 12v-1.2wmodel 1: w5/1,2wvolt: 12vwatt: 1,2w. Three-hole mounting w5/1,2-12v 1,2w. 12v-1.2wmodel 1: w5/1,2wvolt: 12vwatt: 1,2w. J-12V ...
