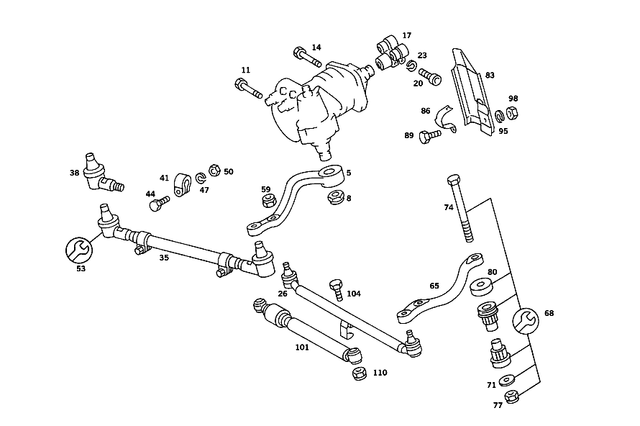

Steering Linkage for 1988 Mercedes-Benz 560SL
No.
Part # / Description / Price
20
Cap Screw W Hexal Socket
Mercedes-Benz
MSRP $4.40
$4.40
Mercedes-Benz Bolt
Steering coupling to steering shaft and to steering. Steering coupling to steering gear. Steering coupling to steering shaft m8 x 30.
23
Spring Lock Washer Mercedes-Benz
MSRP $1.40
$1.40
Mercedes-Benz Lower steering shaft to upper steering shaft. Shock absorber to lower control arm. Steering coupling to steering shaft. Steering coupling to steering gear. Backrest adjuster.
44
Hexagon Head Bolt Mercedes-Benz
MSRP $2.40
$2.40
Mercedes-Benz Screw
Shackle mounting. M8X30
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. At support. Instrument panel to left / right A-pillar and wind deflector M 8X30. Seat framework to backrest. Child's seat mounting. Child seat safety catch. Left and right outer guard plate to rear panel. Rear m8x30. Crossmember to a-pillar.
50
Hexagon Nut Mercedes-Benz
MSRP $3.00
$3.00
Mercedes-Benz Nut
M8-10
Diameter: 8mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,25mm
Width across flats: 13mm. Cable to starting motor,terminal 30. Horn to bracket.
53
Repair Kit, Ball Joint Mercedes-Benz
Mercedes-Benz Drag link. To 114 460 03 05. To 107 460 05 05,107 460 06 05. To 116 460 09 05,10 05,123 460 15 05. Boot.
59
Nut Mercedes-Benz
MSRP $4.60
$4.60
Mercedes-Benz M10X1
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 17mm. Upper transverse control arm to steering knuckle. Bumper to body. To 107 330 01 03. Drag link to pitman arm and to steering intermediate arm to a1264600805,a1264600905. To 107 460 06 05. Tie rod to steering arm. Shock absorber to frame. To 123 460 15 05. To 126 460 09 05.
89
Hexagon Head Bolt Mercedes-Benz
MSRP $2.90
$2.90
Mercedes-Benz Screw
Engine hood upper catch to engine hood. Flap to hinge m 6x10.
98
Hexagon Nut Mercedes-Benz
MSRP $12.50
$12.50
Mercedes-Benz Nut
Steering column jacket tube to body. Master cylinder to pedal assembly. Brake power regulator to bracket. Bracket to engine. Cable to ignition coil. Fuel lines under rear seat. Hydraulic unit to bracket. Wiper motor to fire wall.
104
Hexagon Head Bolt Mercedes-Benz
MSRP $50.00
$50.00
Mercedes-Benz Screw
Steering shock absorber to drag link and to frame. Steering shock absorber to front axle. Steering shock absorber to body floor.
110
Nut Mercedes-Benz
Mercedes-Benz Steering shock absorber to front axle. Steering shock absorber to drag link and to frame.
