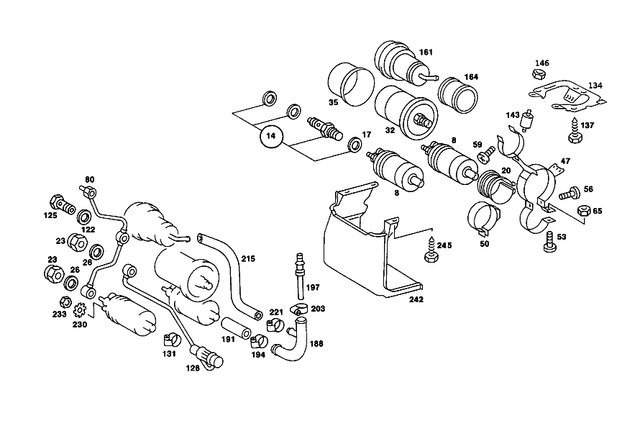

Fuel Pump Package for 1988 Mercedes-Benz 560SL
No.
Part # / Description / Price
8
Fuel Pump
Mercedes-Benz
Mercedes-Benz
Gefahrgutkennzeichen: 9.4 Miscellaneous dangerous goods (Dangerous goods in apparatus).
17
Sealing Ring Mercedes-Benz
MSRP $1.60
$1.60
Mercedes-Benz FITTING. 10 X15-CU
Strength / hardness class: CU
Inside diameter: 10mm
Outside diameter: 15mm
Material thickness: 1mm.
23
Nut Mercedes-Benz
MSRP $7.00
$7.00
Mercedes-Benz Fuel line to feed pump. Connecting hose to hydropneumatic spring leg.
26
Sealing Ring Mercedes-Benz
MSRP $4.40
$4.40
Mercedes-Benz HOSE TO SLAVE CYLINDERStrength / hardness class: CUInside diameter: 12mmOutside diameter: 17mmMaterial thickness: 1,5mm. LONGITUDINAL LOCK BREATHER 12X17Strength / hardness class: CUInside diameter: 12mmOutside diameter: 17mmMaterial thickness: 1,5mm. BETW ...
53
Screw Mercedes-Benz
MSRP $4.40
$4.40
Mercedes-Benz Pump,filter & fuel accumulator to bracket. M5 x40. Motor to seat height adjustment with programming. Pump and filter to bracket.
56
Hexalobular Screw Mercedes-Benz
MSRP $3.10
$3.10
Mercedes-Benz Screw
Door separation point coupler to a-pillar. M5X25
Diameter: 5mm
Strength / hardness class: 4.8
Thread code letter: M
Thread pitch: 1mm. Pump,filter & fuel accumulator to bracket. At bracket. Cover to housing with tray. Connector to instrument panel reinforcement.
125
Banjo Bolt Mercedes-Benz
MSRP $40.00
$40.00
Mercedes-Benz BETWEEN VALVE,TRANSFER CASE AND CYLINDER COVER,VACUUMDiameter: 12mmStrength / hardness class: STThread code letter: MThread pitch: 1,5mmWidth across flats: 17mm. LONGITUDINAL LOCK BREATHERDiameter: 12mmStrength / hardness class: STThread code letter: MThre ...
131
Clamp Mercedes-Benz
Mercedes-Benz Between control valve and heat exchanger 21/9. From fuel tank to fuel pump 12 x 9 mm. Heat exchanger,left 21/9. From damper cage to fuel feed pump. From fuel tank to damper cage.
137
Tapping Screw Mercedes-Benz
MSRP $1.70
$1.70
Mercedes-Benz Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
143
191
Hose Mercedes-Benz
MSRP $69.00
$69.00
Mercedes-Benz Reservoir to fuel tank 190 mm. (protective hose) 220 mm. Activated charcoal filter 45 mm. From fuel tank to fuel pump 115 mm.
197
Hose Mercedes-Benz
MSRP $35.00
$35.00
Mercedes-Benz Fuel Hose
From tank filter to damper cage. From fuel tank to damper cage.
215
221
Clamp Mercedes-Benz
Mercedes-Benz HOSE TO ACCUMULATOR & DAMPER CAGEDiameter: 11mmMaterial thickness: 0,4mmWidth across flats: SW7. CONNECTING PIPE ON BRACKETDiameter: 11mmMaterial thickness: 0,4mmWidth across flats: SW7. FROM ACCUMULATOR TO DAMPER CAGE & VALVEDiameter: 11mmMaterial thickne ...
230
Tooth Lock Washer Mercedes-Benz
MSRP $1.90
$1.90
Mercedes-Benz M5. Clamp to bracket. Latch-type lock to rear lid. Rods to linkage. Sliding angle to sliding roof plate. Window regulator rails and retaining rails to glass panes. Engine hood release cable to front panel,bottom. Cable to fuel pump. Ventilator windows to doors, top.
230
Tooth Lock Washer Mercedes-Benz
MSRP $2.30
$2.30
Mercedes-Benz M4. Insert to sliding roof plate,rear. Backrest spar covering. Lines to rear wheelhouse,inside. Rail to backrest frame, bottom. Electrical line at fuel pump, positive at connector a 4,3. Relay to bracket. Cable to fuel pump. Mounting rail to door framework.
230
