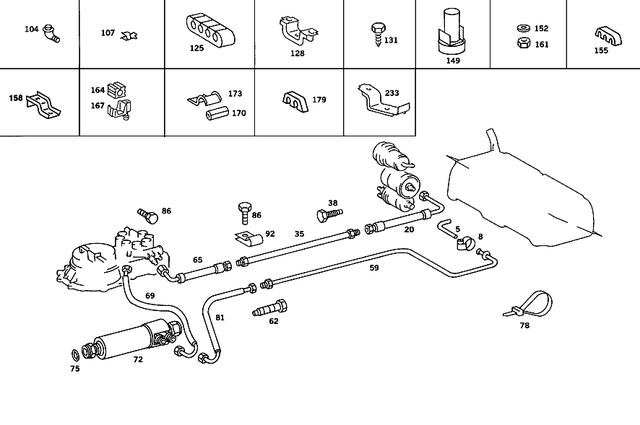

Fuel Lines for 1988 Mercedes-Benz 560SL
No.
Part # / Description / Price
5
Hose
Mercedes-Benz
MSRP $32.50
$32.50
Mercedes-Benz 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
8
Spring Hose Clamp Mercedes-Benz
MSRP $4.10
$4.10
Mercedes-Benz Between combination valve and breather pipe. Regeneration valve. Return hose to return line. From fuel tank to breather valve.
38
75
86
Hexagon Head Bolt Mercedes-Benz
MSRP $3.50
$3.50
Mercedes-Benz Screw
Amplifier at c-pillar. Amplifier to bracket. Reinforcem. At bracket, left.
86
Hexagon Head Bolt Mercedes-Benz
MSRP $1.20
$1.20
Mercedes-Benz Screw
Central ornamental cover to bumper and to panelling. Return hose to feed hose. Bracket to wheel arch panel. Return line to fuel tank. Sliding angle to sliding roof plate. Garnish mouldings to mercedes star. Roof rear rail. Garnish mouldings to ornamental frame. Line to bracket.
92
Clamp Mercedes-Benz
Mercedes-Benz For electrical cable from main control panel to radio-telephone system. Ground cable to cowl. For main cable harness at reinforcement bracket, left and right. For starter cable at front wall or mounting control shaft resp.
104
Grommet Mercedes-Benz
Mercedes-Benz Fuel pump branch-off to luggage compartment floor. Flexible shaft thru unit partition panel. Rear speed sensor branch-off. Cable harness for illuminated ashtray in rear door. Rear door interior part. Pipe line mounting.
125
Rubber Guide Mercedes-Benz
MSRP $7.00
$7.00
Mercedes-Benz Fuel lines to body. Fuel & brake lines to left side member. Fuel and brake lines to frame floor unit. Fuel/brake/breather lines under rear seat backrest.
128
Clamp Mercedes-Benz
MSRP $6.50
$6.50
Mercedes-Benz Brake line mounting. Fuel lines to side member. Fuel/brake/breather lines under rear seat backrest. Brake line to side member. Mounting pipe line.
131
Tapping Screw Mercedes-Benz
MSRP $1.70
$1.70
Mercedes-Benz Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
155
Rubber Guide Mercedes-Benz
MSRP $7.25
$7.25
Mercedes-Benz Fuel lines to body. Lines to rear floor above rear axle, center. Fuel lines to cowl. Lines to frame. Fuel lines to front partition panel. Fuel lines under rear seat. Mounting pipe line.
161
Hexagon Nut Mercedes-Benz
MSRP $12.50
$12.50
Mercedes-Benz Nut
Steering column jacket tube to body. Master cylinder to pedal assembly. Brake power regulator to bracket. Bracket to engine. Cable to ignition coil. Fuel lines under rear seat. Hydraulic unit to bracket. Wiper motor to fire wall.
164
Damping Strip Mercedes-Benz
Mercedes-Benz Fastening fuel lines to longitudinal member. Fuel lines to vehicle floor. Extinguishing agent line. Fuel lines on floor under rear seat. Feed line. Fuel line mounting. Gas line. Return line to body. Cable harness mounting. High pressure hose to cross member.
167
Clamp Mercedes-Benz
MSRP $5.50
$5.50
Mercedes-Benz Fuel lines on floor under rear seat. Feed line to air water canal. Fuel lines to vehicle floor 17 x 20 mm. Fuel lines to body. Return line to body. Cable harness mounting. High pressure hose to cross member.
173
Clamp Mercedes-Benz
Mercedes-Benz Condensed water drain. Compressor-to-condenser refrigerant line to condenser. Starting cable to side member.
179
Rubber Guide Mercedes-Benz
Mercedes-Benz 40 mm. Lines to fire wall,top left 20 mm. Fuel lines. Lines to frame 20 mm. Feed and return lines to fire wall reinforcement 20 mm.
