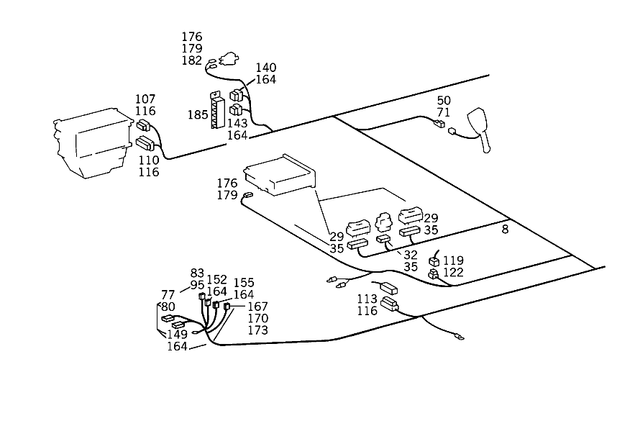

Tail Lamp Cable Harness and Fuel Pump Cable for 1992 Mercedes-Benz 400SE
No.
Part # / Description / Price
8
23
Round Receptacle
Mercedes-Benz
$8.25
Mercedes-Benz 1MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. 1,0 MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. DATA LI ...
26
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Automatic antenna. 4-pin rk2.5. Valve strip. Fourpole. 4-pin rk2.5. Tempmatik control box. 6-pole. 4-pin rk2.5. Inboard feeler blower. 4-pin rk2.5. Electrical antenna,6-pole. 4-pin rk2.5. Ventilation blower. 4-pin rk2.5. Pre-glow time relay. 4-pole. 4-pin rk2.5.
35
Contact Socket Mercedes-Benz
$2.70
Mercedes-Benz 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
50
Receptacle Housing Mercedes-Benz
Mercedes-Benz Driver's belt lock. Belt lock branch-off. Seat contacting. Belt lock switch. Seat belt buckle. On contact strip,seat.
53
Receptacle Housing Mercedes-Benz
$22.50
Mercedes-Benz Central locking mechanism pump. Control unit of comfort control.
56
59
Receptacle Housing Mercedes-Benz
Mercedes-Benz Headlamp cable harness plug-connection. Tail lamp cable harness plugconnection. Tail lamps.
71
Contact Socket Mercedes-Benz
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
89
Cap Mercedes-Benz
$5.00
Mercedes-Benz Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).
92
Receptacle Housing Mercedes-Benz
$8.75
Mercedes-Benz Automatic transmission shift-pointincrease relay. 6-pin. Relay for "locking completed" feedback. 6-pin. Engine shut-off relay. 6-pin. Intake manifold heating relay. 6-pole. 6-pin. Relay. 6-pole to 126 820 40 17,56 15. 6-pin. Air blow-in relay. 6-pin. Seat adjuster relay. 6-pin.
101
Cap Mercedes-Benz
Mercedes-Benz Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
104
Contact Socket Mercedes-Benz
$3.40
Mercedes-Benz 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
107
Plug Housing Mercedes-Benz
Mercedes-Benz Module box cable-harness plugconnection. Air conditioner. Cockpit cable harness plug-connection. Lock angle sensor. Electronic accelerator/ snow chain switch.
110
Plug Housing Mercedes-Benz
Mercedes-Benz Headlamp cable harness plug-connection. Module box cable-harness plugconnection. Inboard cable plug connection, 10-pole. Engine cable harness plug-connection 10 polig.
113
Plug Housing Mercedes-Benz
Mercedes-Benz Cockpit cable harness plug-connection. Tail lamp cable harness plugconnection.
116
Contact Pin Mercedes-Benz
$7.75
Mercedes-Benz To 016 545 01 28. 0.35-2.5 mm2 rk2.5. To 020 545 49 28. 0.35-2.5 mm2 rk2.5. 0,5-1,0mm2, to 023 545 52 28. 0.35-2.5 mm2 rk2.5. Only used with acceleration skid control (asr). 0.35-2.5 mm2 rk2.5. (lock angle sensor) 4.0 mm. 0.35-2.5 mm2 rk2.5. 2,5mm. 0.35-2.5 mm2 rk2.5. 0.25-2.5 mm. 0.35-2.5 mm2 rk2.5.
119
Plug Mercedes-Benz
Mercedes-Benz Loudspeaker connection. Front loudspeaker. To 000 546 83 40. On plug connection,wiper motor. Loudspeaker cable.
125
Receptacle Housing Mercedes-Benz
$22.50
Mercedes-Benz Adjustment to altitude. 3-pin. Transverse acceleration switch. 3-pin. Height control valve. 3-pin. Pressure switch. 3-pin. Pressure sensor. 3-pin. Potentiometer. 3-pin.
128
Protective Cap Mercedes-Benz
Mercedes-Benz Pressure switch to 007 545 75 28. Adjustment to altitude to 007 545 7528. To 007 543 75 28.
131
Contact Spring Mercedes-Benz
$3.50
Mercedes-Benz Warm-up sender unit,cold start valve, air-flow sensor plate contact. 0.5-1.5mm2. TO 116 540 01 81,007 545 75 28. 0.5-1.5mm2. TO 116 540 01 81/007 545 35 28. 0.5-1.5mm2. S12. 0.5-1.5mm2. TO 002 545 64 26. 002 545 82 26. 0.5-1.5mm2. Adjustment to altitude to 007 545 7528, 116 540 0181. 0.5-1.5mm2.
134
Receptacle Housing Mercedes-Benz
Mercedes-Benz Luggage compartment lamp switch. Bipolar. 2-pin ff6.3. Dome lamp switch. 2-pin ff6.3. Rear inside lamp. 2-pin ff6.3. Central locking system. 2-pin ff6.3. Motor center locking tank flap m14/10,. 2-pin ff6.3. Plug connection central locking mechanism,rear x43/4. 2-pin ff6.3. Rear dome lamp. 2-pin ff6.3. Additional heater control unit. 2-pin ff6.3. Courtesy lamp. 2-pin ff6.3.
137
Flat Pin Bushing Mercedes-Benz
Mercedes-Benz TO 008 545 34 28/ 35 28/ 36 28. 0.5 MM2 FF6.3
Leitungsquerschnitt Min/Max: 0,5mm2
Oberflächenschutz PINs: Ag
Model 1: FF
Model 2: 6.3.
137
Receptacle Mercedes-Benz
$2.70
Mercedes-Benz Tin-plated. 1.5-2.5 MM2 FF6.3Leitungsquerschnitt Min/Max: 1,0-2,5mm2Oberflächenschutz PINs: SnELA: -Model 1: FFModel 2: 6.3. TO 001 545 10 28,012 545 31 28. 1.5-2.5 MM2 FF6.3Leitungsquerschnitt Min/Max: 1,0-2,5mm2Oberflächenschutz PINs: SnELA: -Model 1: ...
143
Plug Mercedes-Benz
Mercedes-Benz Valve strip. 9-pin jpt. Door separation point,a-pillar. 9-pin jpt. Tv/tuner antenna connector x1/28,. 9-pin jpt.
161
164
Spring Retaining Pin Mercedes-Benz
$3.90
Mercedes-Benz Contact Spring
1.5-2.5mm2. 1.5-2.5 MM2 JPT2.8
Leitungsquerschnitt Min/Max: 1,25-2,5mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: JPT
Model 2: 2.8
Release tool: W000 589 13 99 30
Crimp tool: W220 589 01 99 05.
164
Contact Spring Mercedes-Benz
$3.50
Mercedes-Benz Left exit lights. 0.5 mm2 jpt. To 220 545 17 28. 0.5 mm2 jpt. 0,5-1,0mm2. 0.5 mm2 jpt. Radio 0.5 -1.0 mm2. 0.5 mm2 jpt.
164
Contact Spring Mercedes-Benz
$3.90
Mercedes-Benz Fuse and relay module, driver k40/2. L3. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: SnELA: -Model 1: SPTRelease tool: W000 589 13 99 30. Copper. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PI ...
164
Contact Spring Mercedes-Benz
$4.90
Mercedes-Benz Fuse and relay module, driver k40/2. Fuse and relay module, front passenger k40/4. FUSE AND RELAY BOX,DRIVER. 1.0-2.5 MM2 SPT
Leitungsquerschnitt Min/Max: 1,0-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: SPT
Release tool: W000 589 13 99 30.
170
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Inductive pickup to 008 545 08 28. Belt lock,left front seat to 008 545 08 28. Only for use with air conditioner. Throttle body to 008 545 08 28. To 008 545 08 28, 008 545 09 28. To 008 545 10 28.
182
Contact Spring Mercedes-Benz
Mercedes-Benz WINDSHIELD WASHER NOZZLE HEATINGLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: AgELA: -Model 1: PLModel 2: 6.3. DOOR CONTACTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: AgELA: -Model 1: PLModel 2: 6.3. TO 124 540 21 81Le ...
200
Clamp Mercedes-Benz
Mercedes-Benz Belt lock to seat rail. Cable harness to roof rail. Electric cable to bracket. At bracket. Blower regulator plug to air conditioner case. Cross member below front seat. Electric cable to rear lid. Test plug. Rear lid lock.
221
Grommet Mercedes-Benz
Mercedes-Benz Blower. Electric cable thru fire wall. Fuel pump branch-off to luggage compartment floor. Automatic transmission branch-off. Electric cable thru tunnel. Scuff protection for electric cables left.
227
Clamp Mercedes-Benz
Mercedes-Benz Electric cable to reservoir bracket. Electric cable to suspension eye. At blower. Outdoor temperature sensor cable to water baffle. Bracket to plug connection. Brake lining wear indicator plugconnection. Cable harness to main floor below right rear seat. Electric cable to fan shroud. Cable harness to bracket.
230
233
Hexagon Nut Mercedes-Benz
$3.40
Mercedes-Benz Nut
M6. Bracket to water tank. Mounting parts. Control unit. Bracket mounting. Brake booster assembly to asr bracket. Fuel lines to cowl. Transistorized ignition switchgear to wheelhouse panel. Roller blind to rear panel covering, top.
236
Hexagon Head Bolt Mercedes-Benz
$2.90
Mercedes-Benz Bolt
Engine hood upper catch to engine hood. Flap to hinge m 6x10.
236
Hexagon Head Bolt Mercedes-Benz
$3.20
Mercedes-Benz Screw
Main muffler suspension. M8x16. Central muffler suspension. Bracket on rear axle m 8x16.
239
Spring Washer Mercedes-Benz
$1.50
Mercedes-Benz Wiper arm with blade to wiper spindle. Drive rod to crank arm. Wiper arm to wiper shaft. Wiper arm on spindle.
