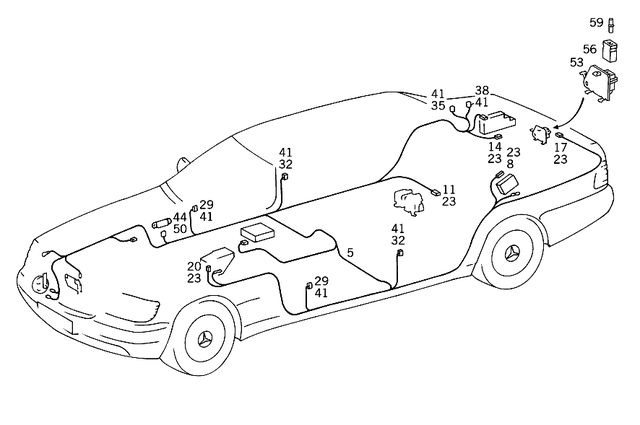

Power Closing System for 1992 Mercedes-Benz 400SE
No.
Part # / Description / Price
11
Receptacle Housing
Mercedes-Benz
$22.50
Mercedes-Benz Central locking mechanism pump. Control unit of comfort control.
14
Receptacle Housing Mercedes-Benz
Mercedes-Benz Temperature switch. Plug connection for cable harness of speakers in instrument panel. Multiple function strip. Cable-harness plug-connection, 6-pole. Interior safeguard control unit. Adjustable steering column. 6-polig.
23
Contact Socket Mercedes-Benz
$2.90
Mercedes-Benz 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
29
Receptacle Housing Mercedes-Benz
Mercedes-Benz Door cable harness separation point. Tempomat(cruise control) plug-connect.
38
41
Contact Spring Mercedes-Benz
$4.90
Mercedes-Benz Fuse and relay module, driver k40/2. Fuse and relay module, front passenger k40/4. FUSE AND RELAY BOX,DRIVER. 1.0-2.5 MM2 SPT
Leitungsquerschnitt Min/Max: 1,0-2,5mm2
Oberflächenschutz PINs: Sn
ELA: -
Model 1: SPT
Release tool: W000 589 13 99 30.
41
Contact Spring Mercedes-Benz
$3.90
Mercedes-Benz Fuse and relay module, driver k40/2. L3. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PINs: SnELA: -Model 1: SPTRelease tool: W000 589 13 99 30. Copper. 0.5-1.0 MM2 SPTLeitungsquerschnitt Min/Max: 0,5-1,0mm2Oberflächenschutz PI ...
50
Round Receptacle Mercedes-Benz
$8.25
Mercedes-Benz 1MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. 1,0 MM. 0.35-0.75 MM2 RK1.0Leitungsquerschnitt Min/Max: 0,35-0,75mm2Oberflächenschutz PINs: AuELA: -Model 1: RKModel 2: 1.0. DATA LI ...
68
Housing Upper Part Mercedes-Benz
$3.20
Mercedes-Benz To 009 545 78 28. To 009 545 80 28. Pin bushing housing 6-polig. To 006 545 08 28. To 006 545 78 28 (asr). 6-pole. To 006 545 80 28,123 545 06 28. (plug upper part).
83
Contact Pin Mercedes-Benz
$7.75
Mercedes-Benz To 016 545 01 28. 0.35-2.5 mm2 rk2.5. To 020 545 49 28. 0.35-2.5 mm2 rk2.5. 0,5-1,0mm2, to 023 545 52 28. 0.35-2.5 mm2 rk2.5. Only used with acceleration skid control (asr). 0.35-2.5 mm2 rk2.5. (lock angle sensor) 4.0 mm. 0.35-2.5 mm2 rk2.5. 2,5mm. 0.35-2.5 mm2 rk2.5. 0.25-2.5 mm. 0.35-2.5 mm2 rk2.5.
89
Cap Mercedes-Benz
Mercedes-Benz Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
101
