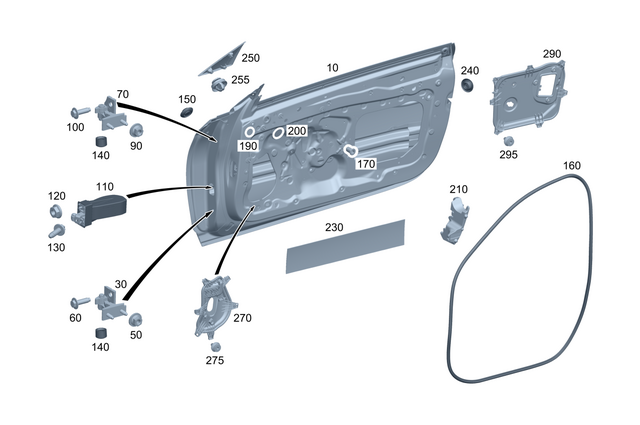

Front Door for 2025 Mercedes-Benz CLE 53 AMG®
No.
Part # / Description / Price
30
50
Nut-And-Washer Assembly
Mercedes-Benz
$1.90
Mercedes-Benz Hinge to left A-pillar, upper. M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1,5mm
Outside diameter: 28mm
Width across flats: 16mm. For hinge to left B-pillar. Hinge top left. For hinge to left A-pillar. Nut, hinge, lower, front door, left.
60
Screw, Special Shape Mercedes-Benz
$1.90
Mercedes-Benz M10x1,5x35. Hinge on door, left. For hinge to left door. Screw, hinge, lower, front door, left.
70
110
130
Hexalobular Screw Mercedes-Benz
$2.00
Mercedes-Benz M8X25
Diameter: 8mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1mm. Door holder to left B-pillar. Door strap at b-pillar, left. Door strap at a-pillar, left. Door holder or door drive system, left to bodyshell. Door holder to left A-pillar M8X25. Door holder to body-in-white, left. Left mounting console. Hinge, upper, front door, left. Screw, door holder, front door, left.
140
Cover Cap Mercedes-Benz
$2.00
Mercedes-Benz To left hinge, top and bottom
Diameter: 11mm
Inside diameter: 10,25mm
Outside diameter: 11mm
Material thickness: 0,75mm. Left door
Diameter: 11mm
Inside diameter: 10,25mm
Outside diameter: 11mm
Material thickness: 0,75mm. Upper and lower left
Diameter: 11mm
Inside diameter: 10,25mm
Outside diameter: 11mm
Material thickness: 0,75mm.
140
Locking Cap Mercedes-Benz
$2.90
Mercedes-Benz Assembly. Screw cover. Upper and lower left. On door hinge nut to a 001 990 57 50. To door hinge screw to a 011 990 62 01. Cover, hinge, front door, left. To left door hinge nut. Driver's door on a-pillar to a 011 990 62 01. Top left. Trunk lid fastening.
160
Door Seal Mercedes-Benz
$184.00
Mercedes-Benz Left rear door. Left driver's door. Sealing frame, front door, left.
190
Adhesive Tape Mercedes-Benz
$1.40
Mercedes-Benz Floor under right rear seat. 25X35 MM. Front left center. 25x35 mm. Left mount. 25X35 MM.
